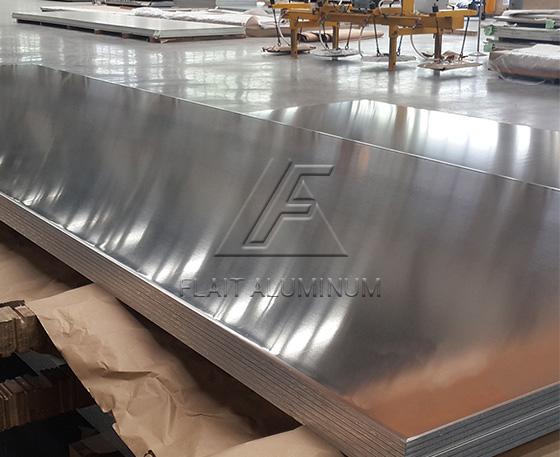

The Introduction of 5454 Aluminum Sheet Plate

5454 aluminum sheet plate is an aluminum-magnesium alloy, the main alloying element is magnesium, with a content of 2.4~3.0%. 5454 Aluminum plate is a typical anti-rust aluminum plate, which can adapt to harsh corrosive environments and has high strength, excellent corrosion resistance, good weldability and general formability. The strength of 5454 aluminum plate needs to be strengthened by cold working, and the strength of 5454 anti-rust aluminum is about 20% higher than 5052; Its characteristics are similar to 5154, but the corrosion resistance of 5454 aluminum plate is better than 5154 aluminum plate in severe environment. Therefore, 5454 aluminum sheet is generally used in environments with high anti-rust requirements, such as marine facility pipelines, aluminum tank trucks bodies, car wheels, etc.Click to Order

The Product Specification of 5454 Aluminum Sheet Plate

Alloy	5454 aluminum sheet plate
Temper	O,H12,H14,H16,H18,H19,H22,H24,H26,H28, H32,H34,H36,H38,H111,H112,H114,H116,H321,etc.
Thickness (mm)	0.15-600
Width (mm)	100-2650
Length (mm)	500-16000
Package	Export packaging (protective film, interleaved paper)
Certificate	CCS, DNV, ABS, BV
Application	Fuel tanks, oil tanker body, marine facility pipelines, automobile wheels, etc.

Chemical composition：

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Zr	Al
5454	0.25	0.40	0.10	0.50-1.00	2.40-3.00	0.05-0.20	-	0.25	0.20	-	Remainder

Mechanical properties：

Alloy

Temper

Tensile strength

Rm(Mpa)

Yield strength

Rp0.2(MPa)

Elongation

A(%)

Minimum Bending Radius of 180 Degree

5454

O/H111

215-285

≥85

≥19

H32

250-305

≥180

≥12

The Product Features of 5454 Aluminum Sheet Plate

5454 aluminum plate has good corrosion resistance and high tensile strength.
5454 aluminum plate has strong plasticity, low tendency of welding twill, and good welding performance.
5454 aluminum plate has less hard and brittle compounds, so it is not easy to produce processing cracks.
The surface quality of 5454 aluminum plate is good, smooth and free of cracks, corrosion spots and nitrate traces.
We can customize production to fully meet the needs of different customers.

The Application of 5454 Aluminum Sheet Plate

5454 aluminum plate is also widely used in ship structural parts, marine facility pipelines, pressure vessels, oil tanks body, welded structures, automobile wheels, etc.

Tank truck is a tank-shaped transport vehicle used to transport various liquids, liquefied gases and powdered goods. Therefore, according to the excellent corrosion resistance of 5454 aluminum plate to chemicals, industrial atmosphere and other media, 5454-H111 aluminum plate is very suitable for manufacturing tank truck body.

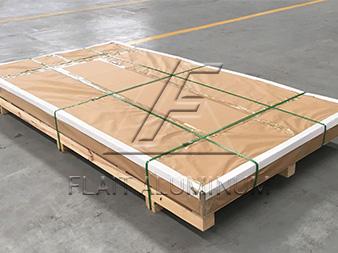

5454 Aluminum Plate Packaging

1. Interleave paper or cover protective film on the aluminum plate to ensure that the surface of the aluminum plate is perfect without scratches;

2. Wrap it with plastic or kraft paper to prevent moisture and rain, and ensure that the aluminum plate is clean and free of dirt during transportation (each package has a moisture-proof desiccant);

3. Use wooden pallets with fumigation marks and reinforce them with steel belts to avoid collisions during transportation and ensure that the shape of the aluminum plate remains unchanged;

4. Pack according to customers’ requirements.
