2024 Aluminum Sheet Plate

Alloy: 2024
Temper: O,T3,T4,T351
Width(mm): 800-2650
Thickness(mm): 1.00-600
Length(mm): 500-16000

Quick Quote Get A Quote

The Introduction of 2024 Aluminum Sheet Plate

2024 Aluminum sheet plate is a typical hard aluminum alloy in the aluminum-copper-magnesium series. Its composition is relatively reasonable, comprehensive performance is good, and is the largest amount of hard aluminum. 2024 Aluminum plate has high strength, certain heat resistance, and can be used as working parts below 150°C. At temperatures above 125°C, the strength of the 2024 alloy is higher than that of the 7075 alloy. The formability is better in the hot temper, annealed and new quenched temper, and the strengthening effect of heat treatment is remarkable, but the heat treatment process is strict. The corrosion resistance is poor, but it can be effectively protected by covering it with pure aluminum; it is easy to produce cracks during welding, but it can be welded or riveted by special processes.Click to Order

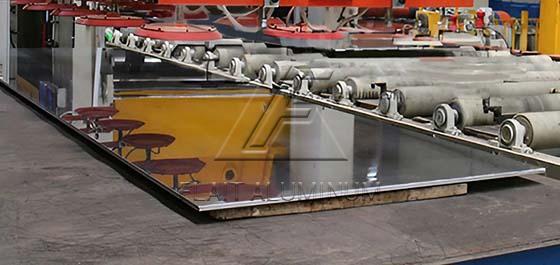

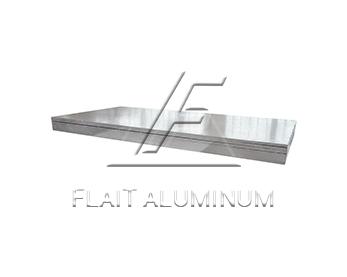

2024 aluminum sheet

The Product Specification of 2024 Aluminum Sheet Plate

Alloy	2024 aluminum sheet plate
Temper	O, T3, T4, T351, etc.
Thickness (mm)	1.0-600
Width (mm)	800-2650
Length (mm)	500-16000
Application	Rivets, truck wheels, molds, precision parts, etc.

Chemical composition:

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Zr	Others		AL
2024	0.50	0.50	3.80-4.90	0.30-0.90	1.20-1.80	0.10	0.25	0.15	-	Single	Total	Balance
										0.05	0.15

Mechanical properties:

Alloy & Temper

Tensile strength

Rm/Mpa

Yield strength

Rp0.2/Mpa

Elongation

Hardness

HBWα

2024-T4

425

275

120

Physical properties:

Alloy & Temper

Thermal expansion coefficient（20-100℃） µm/m•k

Melting point range（℃）

Conductivity 20℃（68°F）

（%IACS)

Resistivity 20（68°F）Ωmm2/m

Density（20℃)（g/cm³）

2024-T4

23.9

502-638

0.057

2.8

The Product Features of 2024 Aluminum Sheet Plate

2024 aluminum sheet has high strength and hardness, meets national standards, and original factory warranty, can purchase with confidence.
2024 aluminum sheet has good heat resistance, can be used as working parts below 150℃.
2024 aluminum sheet has good welding performance, high strength and easy processing, low density, and can be used as light structural materials.
2024 aluminum plate has low density, high specific modulus, good thermal conductivity and electrical conductivity, and good manufacturing process performance.
The tensile strength of 2024 aluminum plate is 400-500MPa, and has better heat resistance and fatigue resistance.

The Application of 2024 Aluminum Sheet Plate

2024 aluminum plate is widely used in aircraft structure (skin, skeleton, rib beam, bulkhead, etc.), automobile, truck hub, military industry, mold, rivet, missile component, propeller element and other various structural parts.
