6061 Aluminum Coil - Flait Aluminum

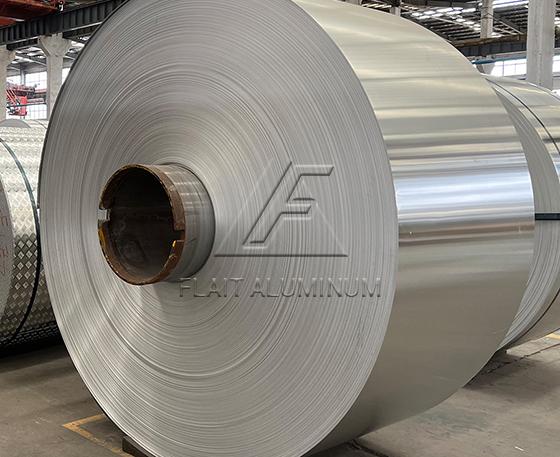

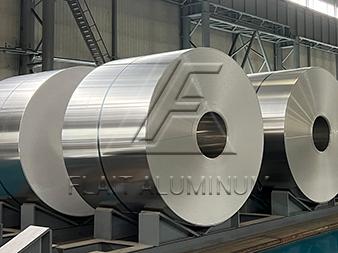

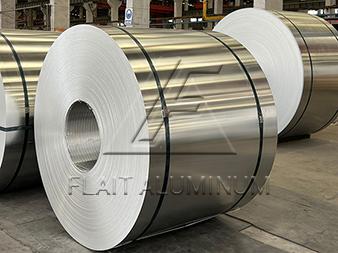

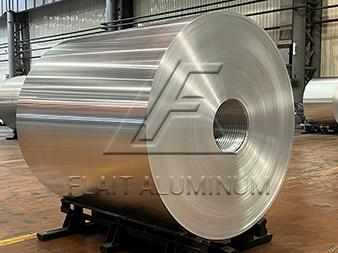

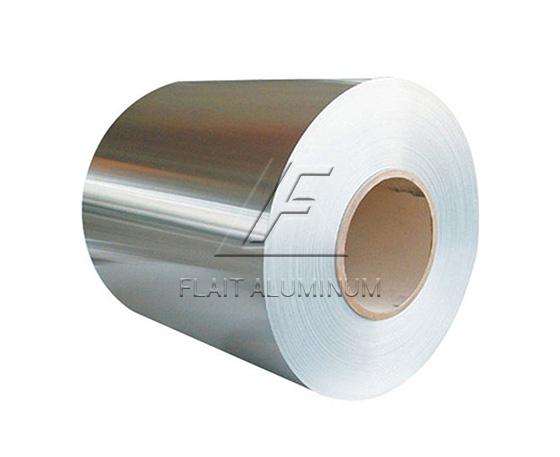

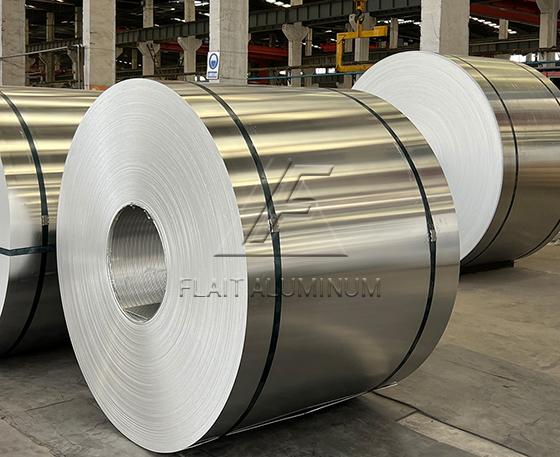

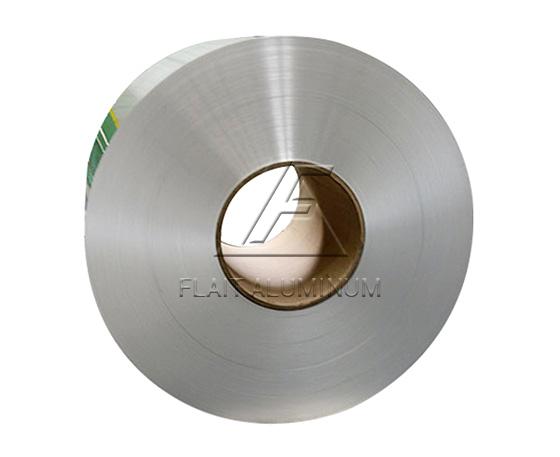

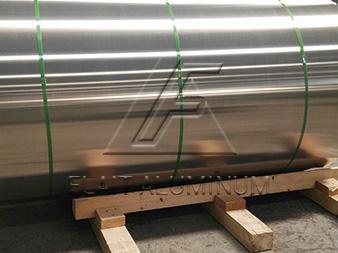

The Introduction of 6061 Aluminum Coil

6061 Aluminum coil belongs to Al-Mg-Si alloy, the main alloy elements are magnesium and silicon, with medium strength, good corrosion resistance, weldability, and good oxidation effect, is commonly used for extrusion and second only to 6063 alloy in popularity. 6061 aluminum coil refers to an aluminum plate with a thickness of 0.4mm-2.5mm. The common tempers are 6061-O (annealed), 6061-T6 (solutionized and artificially aged) and 6061-T651 (solutionized, stress relieved stretched and artificially aged). 6061 Aluminum coil has good oxidation effect, no deformation after processing, good quenching effect, good stability and many advantages. It is used in mobile phone shell materials, automobile wheels, trolley cases, 3C products and other fields.Click to Order

The Product Specification of 6061 Aluminum Coil

Alloy	6061 aluminum coil strip
Temper	F,O, T4,T6,T651,etc
Thickness (mm)	0.30-10
Width (mm)	100-2650
Length (mm)	C
ID	Ø505mm or customized
Package	Eye to sky or Eye to wall
Application	3C products, mobile phone cases, battery trays, auto parts, containers, precision machining, molds, mask machines, etc.
Sample	Available

Chemical composition:

Alloy	Si	Fe	cu	Mn	Cr	Ni	Zn	Mg	Ti	Al
6061	0.40-0.8	0.7	0.15-0.40	0.15	0.04-0.35	-	-	0.8-1.2	0.15	Balance

Mechanical properties:

Alloy

Temper

Tensile strength

(MPA)

Yield strength

(MPA)

Elongation

(%)

Hardness

HBWα

6061

290

240

The Product Features of 6061 Aluminum Coil

6061 Aluminum coil has good thermoplasticity, welding performance and corrosion resistance.
6061 Aluminum coil has no deformation after processing, the surface is smooth, and it is easy to anodize and color.
The color of the 6061 aluminum coil remains unchanged after anodic oxidation treatment, and the appearance is beautiful.

The Application of 6061 Aluminum Coil

6061 Aluminum coils are widely used in 3C fields such as mobile phone card slots, buttons, computer brackets, and computer casings, as well as trolley cases, aluminum furniture, door panels/door handles, ships, automobiles, building exterior walls, etc.
