6082 Aluminum Sheet Plate - Flait Aluminum

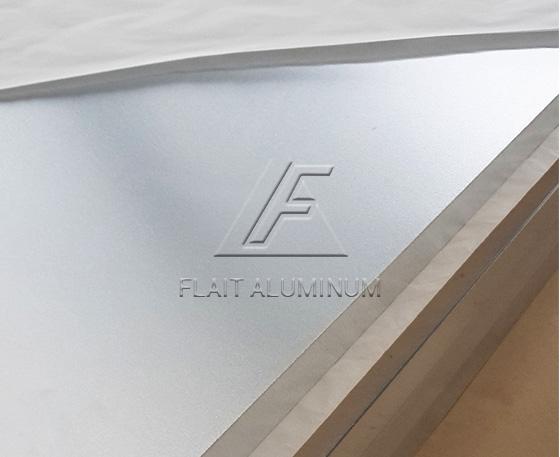

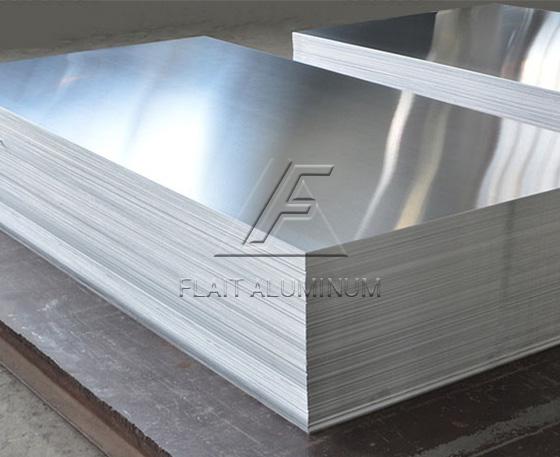

The Introduction of 6082 Aluminum Sheet Plate

The 6082 aluminum plate, like the 6061 aluminum plate, contains Mg, Si, Cu and other metal elements, has good formability, weldability, machinability and corrosion resistance, has medium strength, and can still maintain good operability after annealing. 6082 Aluminum plate has similar but not identical mechanical properties to the 6061 alloy, and its temper T6 has higher mechanical properties; the tempers 0 and T4 of 6082 alloy are suitable for bending and forming, and its tempers T5 and T6 are suitable for good machinability requirements. It is mainly used for processing raw materials, seamless aluminum tubes, structural profiles and custom profiles, etc. 6082 Aluminum sheet generally has very good processing characteristics and very good anodic reactivity.Click to Order

The Product Specification of 6082 Aluminum Sheet Plate

Alloy	6082 aluminum sheet plate
Temper	F,O,T4,T6,T651,etc.
Thickness (mm)	0.30-600
Width (mm)	500-2650
Length (mm)	500-16000
Application	Camera lenses, industrial molds, containers, mold, etc.

Chemical composition:

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Zr	Others		AL
6082	0.7-1.3	0.50	0.10	0.4-1.0	0.6-1.2	0.25	0.20	0.10	-	Single	Total	Balance
										0.05	0.15

Mechanical properties:

Alloy & Temper

Tensile strength

Rm/Mpa

Yield strength

Rp0.2/Mpa

Elongation

Hardness

HBWα

6082-T6

310

260

Physical property:

Alloy & Temper

Thermal expansion coefficient (20-100℃)/μm/m·k

Rm/Mpa

Melting point range (℃)

Rp0.2/Mpa

Conductivity 20℃(68℉)

(%IACS)

Resistivity 20℃(68℉)

Ωmm2/m

Density(20℃)(g/cm3)
Ωmm2/m

6082-T6

23.5

621-654

0.0302

2.8

The Product Features of 6082 Aluminum Sheet Plate

6082 aluminum sheet has good formability, weldability, machinability and corrosion resistance.
6082 aluminum plate has medium strength and can still maintain good operability after annealing.
6082 aluminum plate has very good anodic reaction performance, commonly used anodic reaction methods include removal of impurities and dyeing, coating, etc.

The Application of 6082 Aluminum Sheet Plate

6082 Thin aluminum plate: camera lens, marine accessories and hardware, electronic accessories, etc.

6082 Medium-thick aluminum plate: transportation and structural engineering industries, such as bridges, cranes, roof structures, transport aircraft, transport ships, etc.

The 6082 aluminum sheet is mainly used for the outer panel of the automobile. The outer sheet of the automobile requires good flanging ductility, no slip line on the surface, and good aging stability. After the 6082 aluminum sheet is refined and formed at high temperature, the color quality of the automobile surface is consistent. In addition, the 6082 aluminum plate can also be used in the chassis of the car. The 6082 aluminum plate has the characteristics of anti-collision and bending resistance, and has better safety.
