3003 aluminum sheet
3003 aluminum plate
3003 aluminum plate
3003 aluminum plate
3003 aluminum sheet
3003 aluminum plate
3003 aluminum plate
3003 aluminum plate

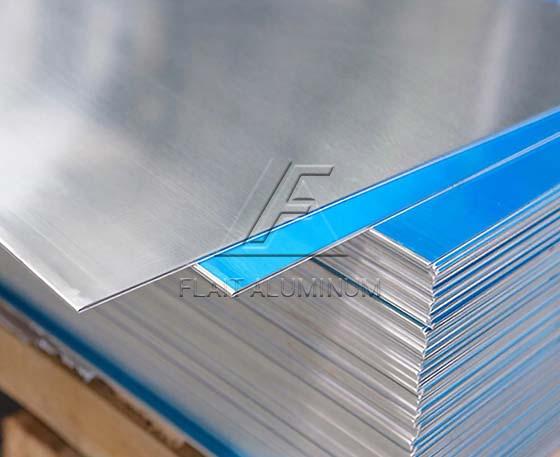

3003 Aluminum Sheet Plate

  • Alloy: 3003
  • Temper: O,H14,H24,H12,H16,H18
  • Width(mm): 20-2650
  • Thickness(mm): 1.00-500
  • Length(mm): 500-16000



3003 Aluminum Sheet Plate

The Introduction of 3003 Aluminum Sheet Plate

3003 Aluminum sheet plate belongs to AL-Mn series alloy, which is a kind of anti-rust aluminum widely used. The strength of 3003 aluminum plate is not high (slightly higher than industrial pure aluminum), and it cannot be strengthened by heat treatment. Therefore, cold working method is used to improve its mechanical properties: has high plasticity in the annealed state, good plasticity in semi-cold work hardening, low plasticity in cold work hardening, good corrosion resistance, good weldability, but poor machinability. Flait Aluminum provides 3003 ultra-wide and ultra-thick aluminum plate, eliminating internal stress, cutting without deformation, maximum width 2650mm, maximum thickness 500mm.Click to Order

  • 3003 aluminum sheet
  • 3003 aluminum sheet
  • 3003 aluminum plate
  • 3003 aluminum plate

The Product Specification of 3003 Aluminum Sheet Plate

Alloy

3003 aluminum sheet plate

Temper

O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38, etc.

Thickness

(mm)

1.0-500

Width

(mm)

20-2650

Length

(mm)

500-16000

Surface treatment

Patterned aluminum sheets, embossed aluminum sheets, non-slip aluminum sheets, etc.

Package

Export packaging (protective film, interleaved paper)

Application

Stock silos, antenna pot materials, power battery shells, automotive heat shields, etc.



Chemical composition:

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Zr

Others

AL

3003

0.60

0.70

0.05-0.20

1.0-1.5

-

-

0.10

-

-

Single

Total

Balance

0.05

0.15



Mechanical properties:

Alloy & Temper

Tensile strength

Rm/Mpa

Yield strength

Rp0.2/Mpa

Elongation

%

Hardness

HB/Wα

3003-H24

148-185

115

4

45



Physical properties:

Alloy & Temper

Thermal expansion coefficient20-100℃)   µm/mk

Melting point range(℃)

Conductivity 20℃(68°F)(%IACS)

Resistivity  2068°F)Ωmm2/m

Density20)g/cm³)

3003-H24

23.2

643-654

41

0.042

2.75

The Product Features of 3003 Aluminum Sheet Plate

  • 3003 aluminum plate has medium strength, excellent anti-rust properties, good corrosion resistance, wide application and wide application field.
  • 3003 aluminum plate has good forming and processing characteristics, good weldability and electrical conductivity, higher strength than 1100 aluminum plate.
  • The surface quality of 3003 aluminum plate is good, no oil spots, waves, scratches, roll marks, neat trimming, no burrs.

The Application of 3003 Aluminum Sheet Plate

Battery shell: new energy vehicle power battery shell, top plate, separator, which can be stamped into a square or round battery shell.

Water cooling plate: 3003 aluminum plate can be used for brazing core material, 3003*4343/3003*4045 aluminum plate for new energy vehicle power battery brazing water cooling plate or condensation/radiation equipment.

Pipe insulation: 3003 aluminum coils can be used for pipe insulation materials. It is mostly used in chemical factories, and its anti-rust function is better than that of 1 series aluminum coils.

3003 aluminum foil: aluminum foil for honeycomb core, aluminum foil for lunch box, aluminum foil for container.

3003 aluminum plates are also commonly used in ships, vehicle materials, automobile and aircraft plate weldments, pressure vessels that require strict fire protection, refrigeration devices, TV towers, drilling equipment, transportation equipment, bus skins, wide curtain wall panels, wide roof panels, etc.



3003 Aluminum Sheet Plate Price

The price of 3003 aluminum plate = aluminum ingot price + processing fee.

Note: 3003 aluminum plate has different tempers and specifications, the quotations of each aluminum plate manufacturer is also different. For detailed quotation, free online consultation is available, we are very happy to provide you with support and help!Click to Order
