5182 Aluminum Sheet Plate

  • Alloy: 5182
  • Temper: O,H19,H32,H34,H36,H38,H111,H112
  • Width(mm): 100-2650
  • Thickness(mm): 0.15-600
  • Length(mm): 500-16000



5182 Aluminum Sheet Plate

The Introduction of 5182 Aluminum Sheet Plate

5182 Aluminum sheet plate belongs to Al-Mg series alloy, Mg content can reach 4-5%, is a kind of anti-rust aluminum with a wide range of uses, which has good corrosion resistance, excellent weldability, good cold workability, and medium strength. It is widely used in automobile, shipbuilding, construction and industry. The performance of 5182 aluminum plate is similar to 5A02, because the magnesium content is slightly higher than 5A02, and a small amount of silicon is added, the weldability is better than 5A02; Also, the tensile strength and yield strength of 5182 aluminum sheet are slightly better than 5052 and 5083 aluminum alloys. Due to a small amount of Si is added, the welding performance of 5182 aluminum plate is very good with gas welding, argon arc welding, spot welding and seam welding. We can customize production according to user special needs, thickness range 0.15-600mm, width range 100-2650mm, length range 500-16000mm, can be produced into aluminum plate or aluminum coil.Click to Order

  • 5182 aluminum sheet
  • 5182 aluminum sheet
  • 5182 aluminum plate
  • 5182 aluminum plate

    The Product Specification of 5182 Aluminum Sheet Plate

    Alloy

    5182 aluminum sheet plate

    Temper

    O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,

    H34,H36,H38,H111,H112,H114,H116,H321,etc.

    Thickness

    (mm)

    0.15-600

    Width

    (mm)

    100-2650

    Length

    (mm)

    500-16000

    Standard

    GB/T 3880, EN14286, EN485, ASTM B209, or according to customer’s special requirements

    Package

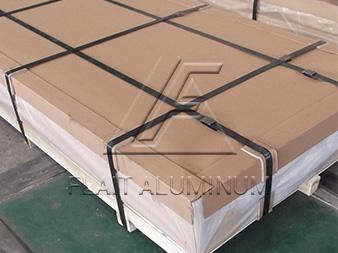

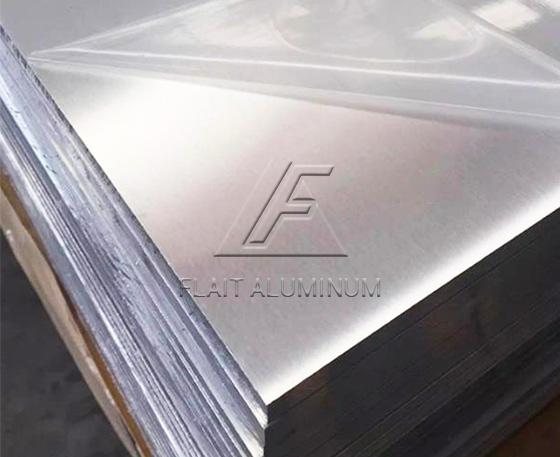

    Export packaging (protective film, interleaved paper)

    Application

    Ship decks, ship panels, car body, car fuel tanks, electrical enclosures and drink cans.



    Chemical composition:

    Alloy

    Si

    Fe

    Cu

    Mn

    Mg

    Cr

    Ni

    Zn

    Ti

    Zr

    Al

    5182

    0.20

    0.35

    0.15

    0.20-0.50

    4.00-5.00

    0.10

    -

    0.25

    0.10

    -

    Remainder



    Mechanical properties:

    Alloy

    Temper

    Tensile strength

    Rm(Mpa)

    Yield strength

    Rp0.2(MPa)

    Elongation

    A(%)

    Minimum Bending Radius of 180 Degree

    5182

    O/H111

    280-350

    125

    26

    -

    The Product Features of 5182 Aluminum Sheet Plate

    • 5182 aluminum plate has excellent corrosion resistance, high tensile strength, high yield strength, good cold workability and medium strength.
    • 5182 aluminum plate contains a small amount of Si, has excellent welding performance, and has a low tendency to crack during welding, can be welded by gas welding, argon arc welding, spot welding and seam welding.
    • The machinability of 5182 aluminum plate is good; the surface is beautiful after anodizing.
    • 5182 aluminum alloy has good rust resistance and is widely use.
    • The surface quality of 5182 aluminum plate is good, smooth and free of cracks, corrosion spots and nitrate traces.

    The Application of 5182 Aluminum Sheet Plate

    5182 aluminum plate is mainly used for low-load parts that require high plasticity and good weldability, and work in liquid or gaseous media. Such as car door, Hood, Shipside/bottom plate, deck, refrigeration equipment, tank car, oil tanks, various liquid containers; thin plate is used for can lids, pull rings of cans.



    5182 Aluminum Sheet Plate Price

    The price of 5182 aluminum plate = aluminum ingot price + processing fee.

    Note: 5182 aluminum plate has different tempers and specifications, the quotations of each aluminum plate manufacturer is also different. For detailed quotation, free online consultation is available, we are very happy to provide you with support and help!Click to Order
