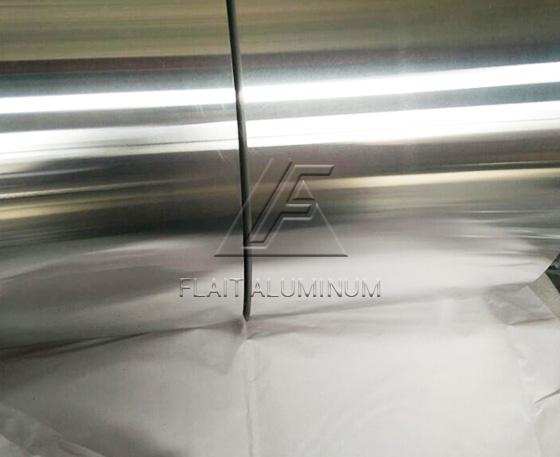

3003 aluminum foil

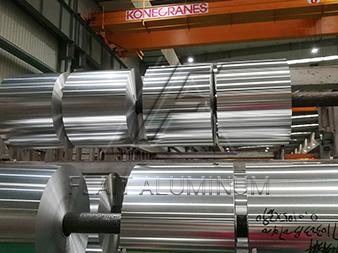

3003 aluminum foil

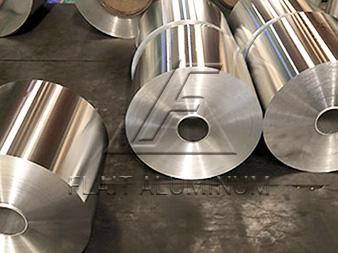

3003 aluminum foil

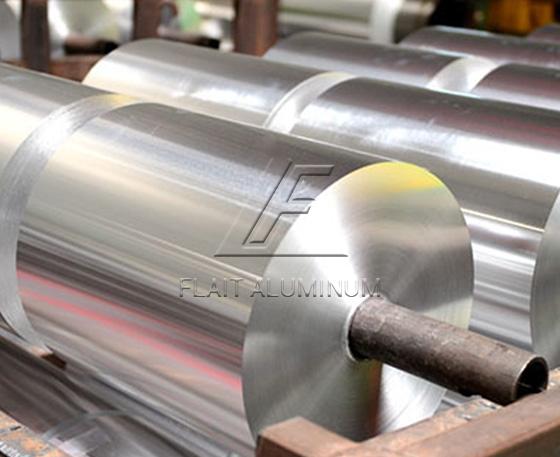

3003 aluminum foil

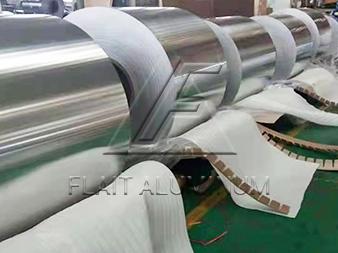

3003 aluminum foil

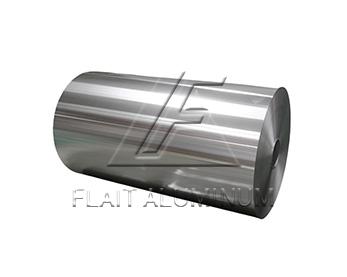

3003 aluminum foil

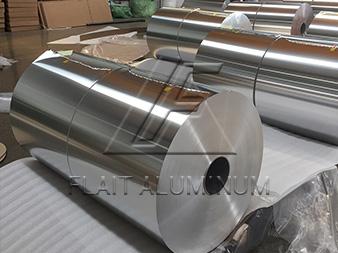

3003 aluminum foil

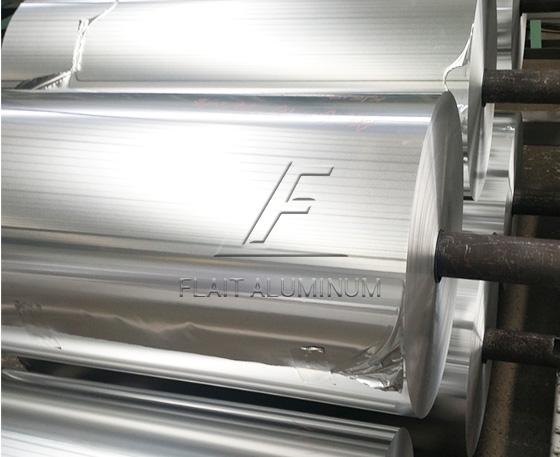

3003 aluminum foil

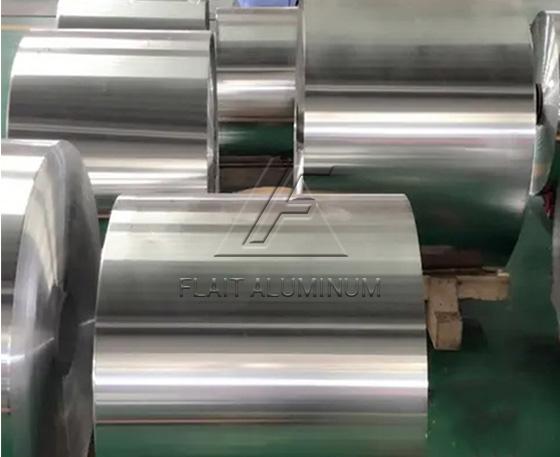

3003 Aluminum Foil

  • Alloy: 3003
  • Temper: O,H14,H16,H18,H19,H22,H24
  • Width(mm): 100-1600
  • Thickness(mm): 0.014-0.20
  • Length(mm): C

The Introduction of 3003 Aluminum Foil

3003 Aluminum foil is a commonly used product of AL-Mn series alloys, has good antirust properties, and its strength is about 10% higher than that of 1100 aluminum foil and 1060 aluminum foil. 3003 Aluminum foil has good formability, weldability, corrosion resistance, and moderate strength. It does not heat treatable and develops strengthening from cold working only. The main tempers for 3003 aluminum foil are H18, H22, H24, etc. 3003 Aluminum foil is mainly used for processing parts that require good formability, high corrosion resistance and good weldability, such as electrolytic capacitor, lunch box container, and aluminum honeycomb core material.Click to Order

3003 Aluminum foil is often selected as the power battery shell material. 3003 electronic aluminum foil has good formability and is mainly used in deep drawing materials. Stamping parts, models, and shells made of 3003 aluminum alloy have many advantages such as good surface, good plasticity, and pressure resistance. The power battery shell made of 3003 aluminum foil has impact resistance, is not easy to break and leak, and can meet the strength and rigidity requirements of the power battery shell, and the aluminum alloy has a small density and light weight, which can reduce the weight of the battery and increase the capacity density of the battery; the battery works stably, which indirectly reduces the weight of the vehicle and increases the endurance of the vehicle.

  • 3003 aluminum foil
  • 3003 aluminum foil
  • 3003 aluminum foil
  • 3003 aluminum foil

The Product Specification of 3003 Aluminum Foil

Alloy 3003 Household foil 3003 Container foil 3003 Packaging foil 3003 Electronic foil
Temper H111,H12,H14,H16,H18,H22,H24,H26,H28,etc. H22,H24,etc. O,H22,H24,etc. H18
Thickness(mm) 0.014-0.20
Width(mm) 100-1600
Length(mm) C
Surface Bare, Mill finish, Painted
ID 76mm,152mm,408mm,508mm or customized
Standard ASTM-B-209M,BS EN 485-2,BS EN 573-3,GB/T3880-2008
Certificate Mill Test Certificate, Certificate of origin: Form A, Form E, CO
Package Export standard, Eye to sky or eye to wall
Application Electronic foil, honeycomb substrate, lunch box material, etc.

The Product Features of 3003 Aluminum Foil

  • 3003 Aluminum foil anti-rust aluminum, excellent corrosion resistance, moderate strength, good corrosion resistance, good weldability, ductility changes with cold working and heat treatment and other excellent product features.
  • 3003 Aluminum foil has high plasticity in the annealed temper. Its plasticity is good for semi-cooling hardening; the plasticity is the lowest in cold hardening.
  • 3003 Aluminum foil has better processing performance and higher elongation compared with series 1 and 8011 aluminum foil.
  • Clean oil removal, less holes, good product shape, and no deformation when cutting.
  • The surface of 3003 aluminum foil has no black oil spots, scratches, bright lines, roller printing and other defects.

The Application of 3003 Aluminum Foil

  1. 3003-H18 Aluminum foil is often used as the base material for the manufacture of aluminum honeycomb cores.
  2. 3003 Aluminum foil is very suitable for household applications, often used as lunch boxes, food packaging. 3003-H24 Aluminum foil has good elongation and processing, it can well meet the strength requirements of food box container during stamping.
  3. 3003-H18 Aluminum foil, 3003-O aluminum foil, 3003-H24 aluminum foil for electrolytic capacitor foil. These 3003 aluminum foil with excellent corrosion resistance and rust resistance can meet the performance requirements of various electrolytic capacitor cathode materials.
  4. 3003 Aluminum foil is often selected as the power battery shell material.
  5. 3003 Aluminum foil is also commonly used as electronic foil.
