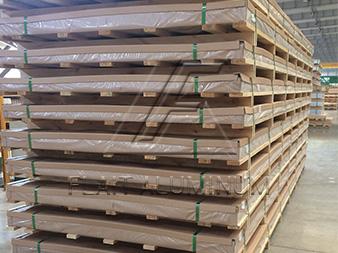

The Introduction of 5083 Aluminum Sheet Plate

5083 Aluminum sheet plate belongs to the Al-Mg series alloy, the main element is magnesium, Mg content can reach between 4.0% and 4.9%, usually the middle value is 4.5% in the production process, so 5083 aluminum plate is also called Almg4.5 aluminum plate. 5083 Alloy is a kind of anti-rust aluminum, has high strength, especially has fatigue resistance, high plasticity and corrosion resistance, and cannot be strengthened by heat treatment; the plasticity is still good when semi-cold work hardening, low plasticity when cold work hardening, good corrosion resistance, good weldability, poor machinability, and can be polished. 5083 aluminum plate has a wide range of applications, mainly used for low-load parts that require high plasticity and good weldability, and work in liquid or gaseous media, such as fuel tanks, conduits of gasoline or lubricating oil, various liquid containers and other small load parts made by pulling.

The product process of 5083 aluminum plate, through the determination of alloy composition, optimization of melting and casting process, homogenization heat treatment and rolling process test, the product performance is good and meets the requirements of users, especially the aluminum plate for ships, rail transit, automobiles, molds, etc. processing of complex parts, and the application prospect is extremely broad. Flait Aluminum can provide 5083 aluminum plate, 5083 patterned aluminum plate, 5083 medium-thick aluminum plate, 5083 marine aluminum plate, 5083 tank truck aluminum plate, etc., can be customized and produced, complete specifications. Click to Order

The Product Specification of 5083 Aluminum Sheet Plate

Alloy	5083 aluminum sheet plate
Temper	O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38,H111,H112,H114,H116,H321,etc.
Thickness (mm)	0.15-600
Width (mm)	100-2650
Length (mm)	500-16000
Surface treatment	Rolling, mirror, patterned aluminum plate

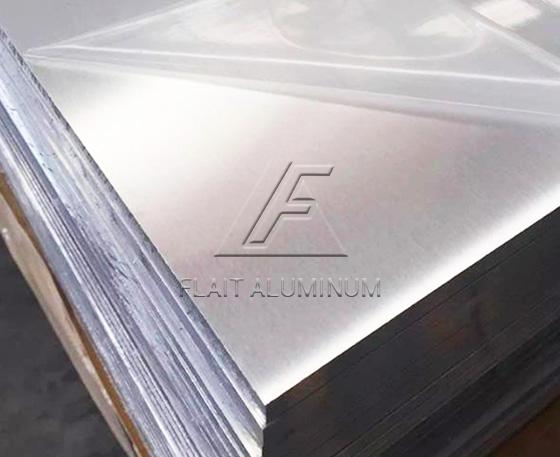

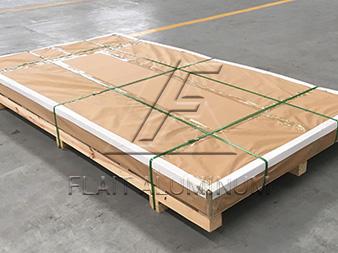

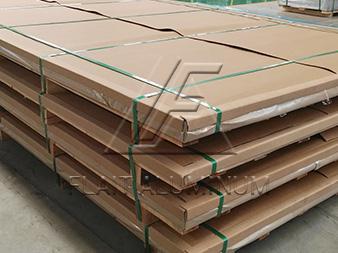

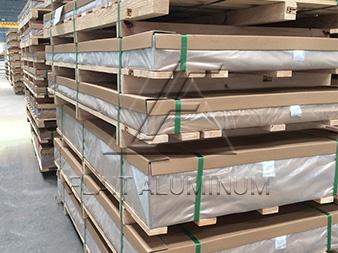

Package	Export packaging (protective film, interleaved paper)
Certificate	CCS, DNV, ABS, BV
Application	Ship plates, LNG storage tanks, oil tankers, cement tankers, gas storage tanks, GIS shells, car body skins, flange materials, etc.

Chemical composition:

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Zr	Al
5083	0.40	0.40	0.10	0.40-1.00	4.00-4.90	0.05-0.25	-	0.25	0.15	-	Remainder

Mechanical properties:

Alloy	Temper	Tensile strength Rm(Mpa)	Yield strength Rp0.2(MPa)	Elongation A(%)	Minimum Bending Radius of 180 Degree
5083	O/H111	≥275	≥125	≥16	-
	H116	≥305	≥215	≥10	-
	H32	305-385	≥215	≥12	-
	H112	≥275	≥125	≥10	-

The Product Features of 5083 Aluminum Sheet Plate

5083 Aluminum sheet plate has low density, light weight, high tensile strength, high elongation, good corrosion resistance and durability, specially used for marine aluminum sheet, light automobile aluminum sheet and tank truck aluminum sheet.
5083 Aluminum plate can be used in vehicles to reduce the weight of the vehicle body, thereby reducing the inertia of the vehicle body and improving transportation efficiency. At the same time, it can also achieve the effect of energy saving and emission reduction.

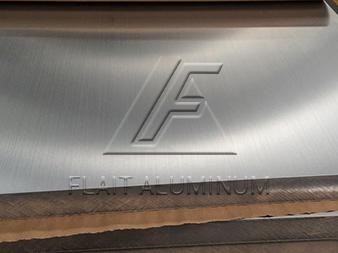

The surface of 5083 aluminum plate has no oil spots, no waves, no scratches, no roll marks, neat trimming, and no burrs.

The Application of 5083 Aluminum Sheet Plate

5083 aluminum plate has a wide range of applications, and is generally used for ships, vehicle materials, automobile and aircraft plate weldments, pressure vessels that require strict fire protection, transportation equipment, drilling equipment, TV towers, etc.
5083 aluminum plate is used in ships: common state H116/H321/H112, usually used for yachts, cruise ship decks, engine pedestals, ship sides, ship bottom outer plates and other components.
5083 aluminum plate is used for vehicles: aluminum alloy tank car body/tank body, automobile fuel tank, gas storage tank, bus skin, coal truck, automobile roof/bottom guard plate, etc.
5083 medium-thick/ultra-wide aluminum plates are generally used in the manufacture of molds, LNG storage tanks, flange materials, GIS high-voltage switch housings, precision machining, etc.

5083 Aluminum Sheet Plate Price

The price of 5083 aluminum plate = aluminum ingot price + processing fee.

Note: 5083 aluminum plate has different tempers and specifications, the quotations of each aluminum plate manufacturer is also different. For detailed quotation, free online consultation is available, we are very happy to provide you with support and help!Click to Order
