The Introduction of 7075 Aluminum Sheet Plate

7075 aluminum plate is an Al-Zn-Mg-Cu series alloy, which can be heat-treated and strengthened. Among them, Zn and Mg mainly play the role of strengthening, and the role of Cu is mainly to improve the corrosion resistance of the alloy. 7075 aluminum plate is a superhard aluminum alloy with very good mechanical properties, 7075 aluminum alloy can achieve quite high strength under natural aging, and has low sensitivity to cracks. 7075 aluminum alloy has good processability, good corrosion resistance, and high strength can be obtained by age hardening. The tensile and shear strength can reach more than 600, and the elongation rate can reach as high as 70%. Click to Order

7075 Aluminum plate will not deform or warp after processing. All super-large and ultra-thick 7075 aluminum plates are ultrasonically detected to ensure no blisters and impurities. The thermal conductivity of 7075 aluminum plate is high, which can shorten the molding time and improve work efficiency. 7075 is a high-hardness, high-strength aluminum alloy, which is often used in the manufacture of aircraft structures, high-stress structural parts and mold manufacturing.

The Product Specification of 7075 Aluminum Sheet Plate

Alloy	7075
Temper	F,O,T6,T651,T7451,etc.
Thickness (mm)	1.0-500
Width (mm)	500-2650
Length (mm)	500-16000
Application	Molds, precision parts, golf ball heads, etc.

Chemical composition:

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Zr	Others		AL
7075	0.4	0.5	1.2-2.0	0.3	2.1-2.9	0.18-0.28	5.1-6.1	0.2	-	Single	Total	Balance
										0.05	0.15

Mechanical properties:

Alloy & Temper

Tensile strength

Rm/Mpa

Yield strength

Rp0.2/Mpa

Elongation

%

Hardness

HBWα

7075-T6

572

503

11

150

Physical properties:

Alloy & Temper	Thermal expansion coefficient（20-100℃） µm/m•k	Melting point range（℃）	Conductivity 20℃（68°F）（%IACS)	Resistivity 20（68°F）Ωmm2/m	Density（20℃)（g/cm³）
7075-T6	23.5	475-635	33	0.0515	2.9

The Product Features of 7075 Aluminum Sheet Plate

7075 aluminum plate has good mechanical properties, easy processing, good wear resistance, good corrosion resistance and oxidation resistance.
7075 aluminum plate is a high-strength heat-treatable alloy.
7075 aluminum plate has better shape, higher precision and more stable performance.
The ultra-wide and ultra-thick 7075 aluminum plate has detected by ultrasonic waves, which can effectively ensure that there are no blisters and impurities.
7075 ultra-wide and ultra-thick aluminum plate, internal stress elimination and no deformation when cut, with the width up to 2600mm and the thickness up to 200mm.

The Application of 7075 Aluminum Sheet Plate

7075 medium-thick aluminum plate is often used in the aerospace industry, shoe molds, high-strength molds, high-strength parts and other fields.

Related Products

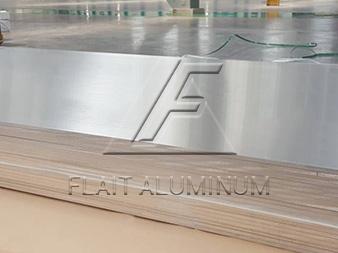

7005 Aluminum Sheet Plate

The 7005 aluminum plate is a super duralumin, with good welding performance and can be strengthened by heat treatment. Its strength is not as good as 6061, but it is much lighter. It is a typical lightweight aluminum material. 7005 aluminum plate is often used in welded structures with high strength and high fracture toughness, such as vehicle trusses, rods, containers; large heat exchangers, and parts that cannot be solidified after welding; it can also be used to manufacture sports equipment such as Tennis racket and softball bat.

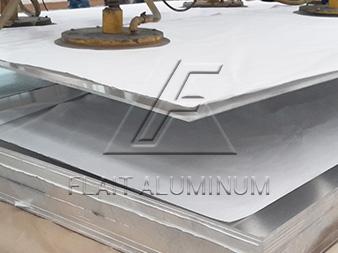

7050 Aluminum Sheet Plate

7050 aluminum plate is a cold-treated forging alloy with high strength, which is far better than mild steel. The main alloying element of 7050 aluminum plate is zinc, which can be heat treated and strengthened, has good thermal deformation performance, wide quenching range, high strength and good welding performance. 7050 aluminum plate is mainly used for high-stress structures with high strength requirements and strong corrosion resistance, such as mold processing,

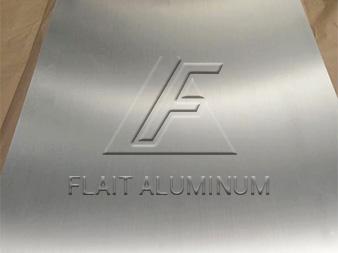

7020 Aluminum Sheet Plate
