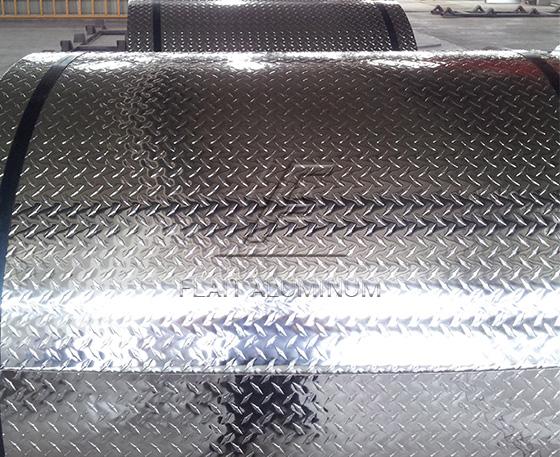

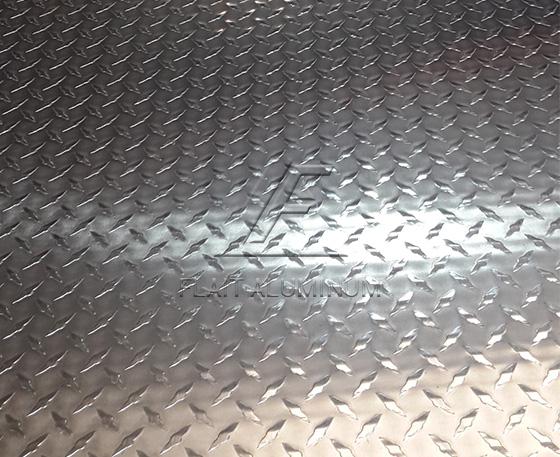

5754 aluminum tread checkered sheet
5754 aluminum tread checkered sheet

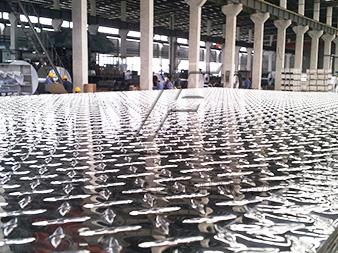

5754 aluminum tread checkered plate
5754 aluminum tread checkered plate

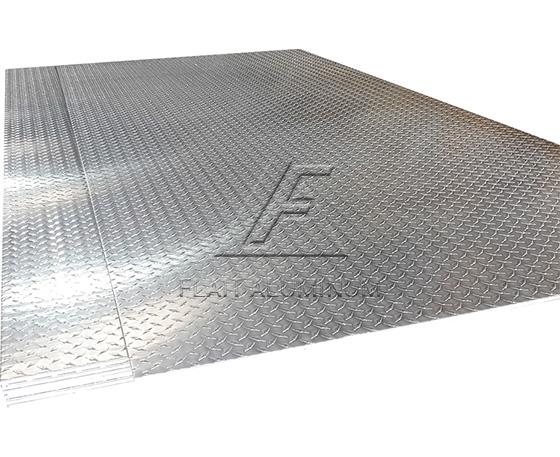

5754 aluminum tread checkered sheet
5754 aluminum tread checkered sheet

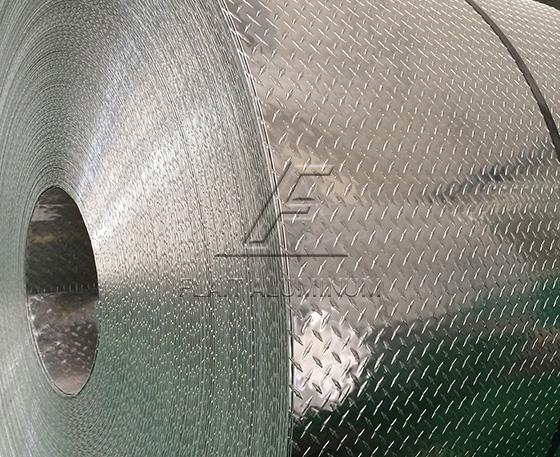

5754 aluminum tread checkered plate
5754 aluminum tread checkered plate

5754 Aluminum Tread Checkered Plate Sheet

  • Alloy: 5754
  • Temper: O,H111,H112,H114,H116,H22,H12,H14,H32
  • Width(mm): 100-1850
  • Thickness(mm): 0.80-8.00
  • Length(mm): 500-16000



5754 Aluminum Tread Checkered Plate Sheet

The Introduction of 5754 Aluminum Tread Checkered Plate Sheet

The main alloying element of 5754 aluminum tread checkered plate sheet is magnesium, and the magnesium content is between 3% and 5%. It can be used in occasions with high strength and high corrosion resistance. 5754 aluminum tread checkered plate sheet has excellent corrosion resistance, especially for seawater and industrially polluted atmospheres. Its strength is higher than 5251. This high strength makes 5754 ideal for flooring applications. 5754 aluminum tread checkered plate sheet is indestructible and resilient despite its light weight. The thinnest thickness of the patterned bottom plate can be 0.9mm, and the height of the pattern is about 0.6mm. The width of the patterned aluminum plate is usually 1250*2500mm and 1500*3000mm. The size of the 5754 aluminum tread checkered plate sheet can be customized according to the requirements of customers.



5754 aluminum tread checkered sheet

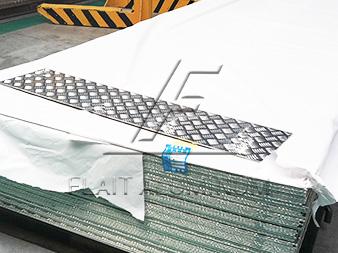

  • 5754 aluminum tread checkered sheet

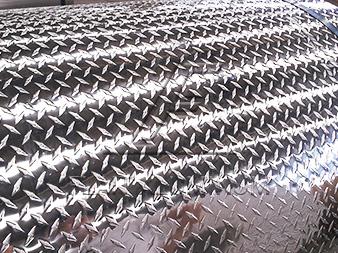

  • 5754 aluminum tread checkered sheet

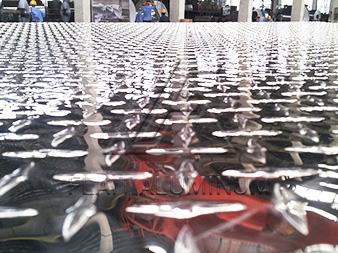

  • 5754 aluminum tread checkered plate

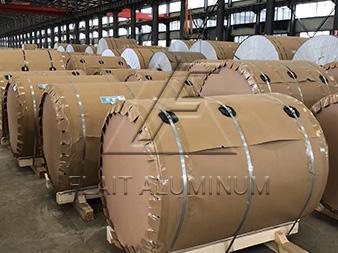

  • 5754 aluminum tread checkered plate

The Product Specification of 5754 Aluminum Tread Checkered Plate Sheet

Alloy 1 Series 1060,1100
3 Series 3003,3105
5 Series 5005,5052,5251,5154,5454,5754,5083,5086
6 Series 6061,6063,6082
Temper O, H12, H14, H16, H18, H22, H24, H26,
 H32, H34, H36, H38, H111, H112, H114, H224, T4, T6
Thickness(mm) 0.8-8.0
Width(mm) 100-1850
Length(mm) 500-16000
Surface Bright finish, Mill finish
Bar difference 1 bar (Diamond/Pointer), 2 bar, 3 bar, big/small 5 bar
Weight about 2.5 tons per pallet
Standard product EN-1386,ASTM,GBT,JIS
Protection Paper interlayer



Available Dimension
Mill finish Surface Bright finish Surface
Thickness  (mm) 1.00---6.50mm 1.20---6.50mm
Pattern height Sheet Thickness from 1.0mm to 2.0mm,  bar height: 0.50mm Sheet Thickness from 1.0mm to 2.0mm,  bar height: 0.50mm
Sheet Thickness from 1.0mm to 2.0mm,  bar height: 1.00mm Sheet Thickness from 1.0mm to 2.0mm,  bar height: 1.00mm
Sheet Thickness above 2.0mm,  bar height: 1.50mm Sheet Thickness above 2.0mm,  bar height: 1.50mm
Width (mm) Maximum 1500mm Maximum 1650mm
Length (mm) max 6000mm for sheet or as require d for coil max 6000mm for sheet or as required for coil
Paper interleaves On request for selected On request for selected
Normal size 1200×2400mm, 1219×2438mm,  1219×3048mm 1200×2400mm, 1219×2438mm,  1219×3048mm

The Product Features of 5754 Aluminum Tread Checkered Plate Sheet

  • 5754 aluminum tread checkered plate sheet has strong weldability, low tendency of welding cracks, high strength of weld and base metal.
  • 5754 aluminum tread checkered plate sheet is a medium-high strength aluminum alloy with good fatigue performance and corrosion resistance.
  • The surface quality of the 5754 aluminum tread checkered plate sheet is good, without oil spots, waves, scratches, roll marks, and the trimming is neat and burr-free.
  • 5754 aluminum plate products of different thicknesses and shapes can be customized according to customer needs.

The Application of 5754 Aluminum Tread Checkered Plate Sheet

5754 aluminum tread checkered plate sheet has high hardness, good anti-chemical effect and high corrosion resistance. Because of its excellent anti-rust function, it has a good application in the shipbuilding industry. 5754 patterned aluminum plate is also a kind of patterned plate with more applications. It has beautiful appearance, good anti-skid performance and high strengthening performance. It is currently widely used in transportation, construction, decoration, floor around equipment, machinery, shipbuilding and other fields , air conditioners, carriages, platforms, packaging pipes, screen frames, various suspension beams, table legs, decorative strips, handles, wiring troughs and covers, chair tubes, etc. are all used in products.
