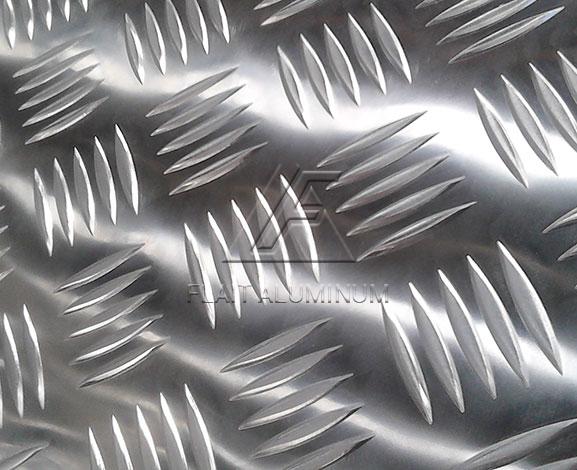

5 bar aluminum checker sheet
5 bar aluminum checker sheet

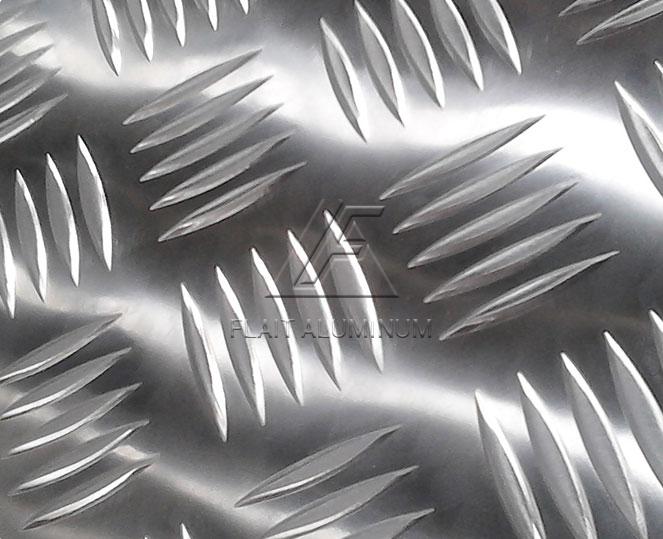

5 bar aluminum checker plate
5 bar aluminum checker plate

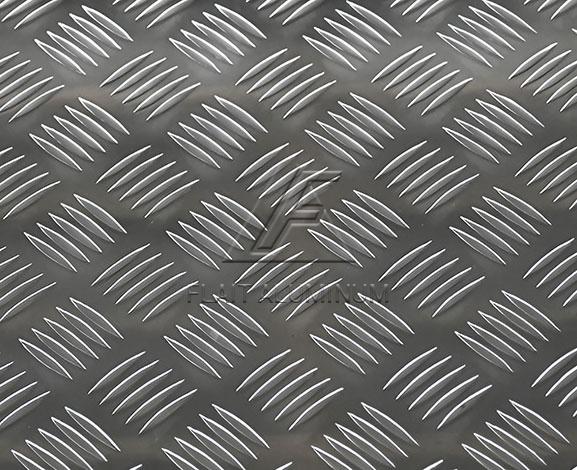

5 bar aluminum checker sheet
5 bar aluminum checker sheet

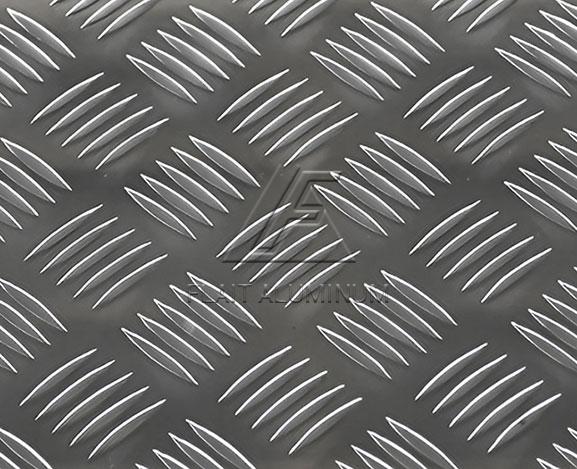

5 bar aluminum checker plate
5 bar aluminum checker plate

5 Bar Aluminum Checker Plate Sheet

  • Alloy:1050,1060,1100,3003,5052,5754,5083,5086
  • Temper:H114,H224,H12,H14,H16,H18,H32,H34, H36,H38,F/O
  • Width(mm):800-2500
  • Thickness(mm): 1.5-6.35
  • Length(mm): 500-16000

The Introduction of 5 Bar Aluminum Checker Plate Sheet

5 bar aluminum checker plate sheet, also known as 5 bar anti-slip aluminum plate, is made of rolled smooth aluminum plate, rolled with steel roll engraved with 5 bars or rhombus. The raised pattern not only provides an aesthetic look but also improves traction, making it suitable for applications that require slip resistance.

Alloys such as 1050, 1060, 1100, 3003, 5052, 5754, 5083, 5086 are often used to manufacture 5 bar aluminum checker plate sheets to ensure excellent strength, durability and corrosion resistance.Its strength, appearance and easy processing characteristics make it a very popular product, and it is the most commonly used floor non-slip material at present, with super versatility in many industries.Click to Order

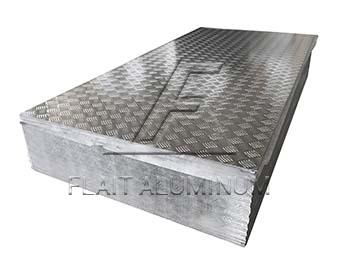

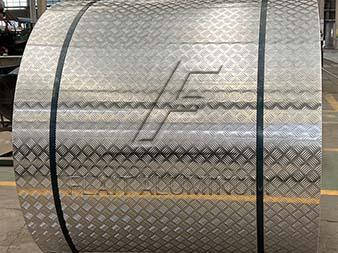

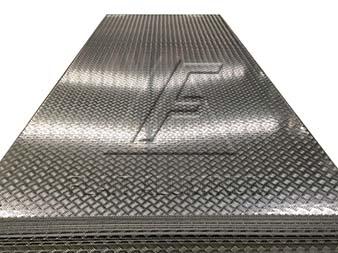

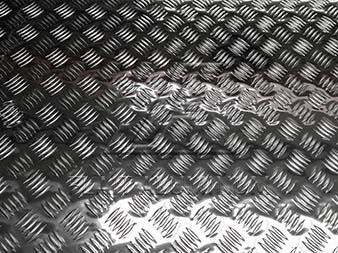

  • 5 bar aluminum checker plate sheet
  • 5 bar aluminum checker plate sheet
  • 5 bar aluminum checker plate sheet
  • 5 bar aluminum checker plate sheet

The Product Specification of 5 Bar Aluminum Checker Plate Sheet

Alloy 1 Series 1050,1060,1100
3 Series 3003
5 Series 5052,5754,5083,5086
Temper H114,H224,H12,H14,H16,H18,H32,H34,H36,H38,F/O
Thickness(mm) 1.5-6.35
Width(mm) 800-2500
Length(mm) 500-16000
Surface Bright finish, Mill finish
Bar difference 5 bar
Weight about 2.5 tons per pallet
Standard product EN-1386,ASTM,GBT,JIS
Protection Paper interlayer



Available Dimension
Mill finish Surface Bright finish Surface
Thickness  (mm) 1.00---6.50mm 1.20---6.50mm
Pattern height

Sheet Thickness from 1.0mm to 2.0mm,  bar height: 0.50mm Sheet Thickness from 1.0mm to 2.0mm,  bar height: 0.50mm
Sheet Thickness from 1.0mm to 2.0mm,  bar height: 1.00mm Sheet Thickness from 1.0mm to 2.0mm,  bar height: 1.00mm
Sheet Thickness above 2.0mm,  bar height: 1.50mm Sheet Thickness above 2.0mm,  bar height: 1.50mm
Width (mm) Maximum 1500mm Maximum 1650mm
Length (mm) max 6000mm for sheet or as require d for coil max 6000mm for sheet or as required for coil
Paper interleaves On request for selected On request for selected
Normal size
1200×2400mm, 1219×2438mm,  1219×3048mm 1200×2400mm, 1219×2438mm,  1219×3048mm

The Product Features of 5 Bar Aluminum Checker Plate Sheet

  1. Durability: The 5 bar aluminum checker plate is highly durable, making it suitable for applications that require resistance to wear and tear. It can withstand heavy foot traffic, making it ideal for industrial flooring, ramps, stair treads, and walkways.
  2. Anti-Slip Properties: The raised diamond pattern on the surface of the checker plate provides excellent grip and slip resistance, even in wet or oily conditions. This feature makes it a preferred choice for safety-focused environments, such as vehicle floors, loading docks, and platforms.
  3. Corrosion Resistance: Aluminum alloys used in the production of the 5 bar checker plate possess excellent corrosion resistance properties. This makes the plate suitable for outdoor applications, marine environments, and areas where exposure to moisture or chemicals is a concern.
  4. Lightweight: Despite its exceptional strength and durability, the 5 bar aluminum checker plate is lightweight compared to other materials such as steel. This characteristic makes it easier to handle, transport, and install. It also contributes to fuel efficiency in transportation applications.
  5. Easy to Maintain: The aluminum checker plate is relatively easy to maintain. Regular cleaning with mild detergents and water is usually sufficient to keep it in excellent condition. Additionally, the aluminum surface is non-porous, reducing the risk of stains or buildup.
  6. Decorative: 5 bar aluminum checker plate is not just functional, but also adds an attractive aesthetic to the application. It can be used for decorative purposes in areas such as interior design, architectural structures, or signboards.

The Application of 5 Bar Aluminum Checker Plate Sheet

  • Floor: One of the primary applications of 5-bar aluminum checker plate is for floor in various settings. Its non-slip surface makes it suitable for places where safety is a concern, such as industrial floors, factories, warehouses, and workshops.
  • Transportation: 5-bar aluminum checker plate is commonly used in the transportation industry. It can be found as flooring in trucks, trailers, and other vehicles.
  • Staircases and Ramps: This type of checker plate is often used for staircases, ramps, and walkways in both industrial and public settings. The textured surface enhances traction and reduces the risk of slipping, making it suitable for areas with high foot traffic.
  • Marine and Boating: Due to its resistance to corrosion, 5-bar aluminum checker plate is used in marine environments for applications like boat flooring, gangways, decks, and dock surfaces.
