1235 Aluminum Foil - Flait Aluminum

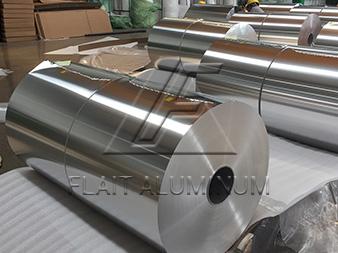

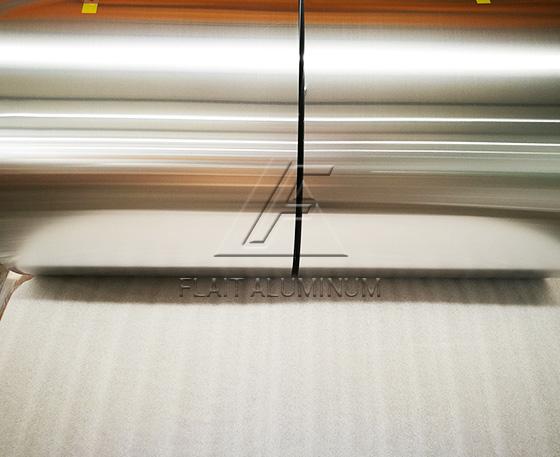

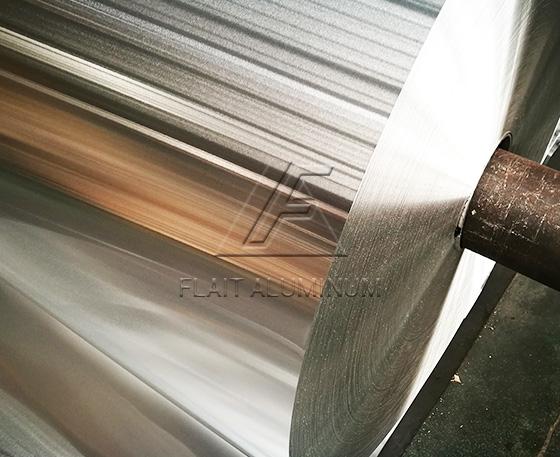

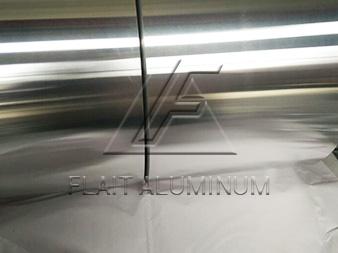

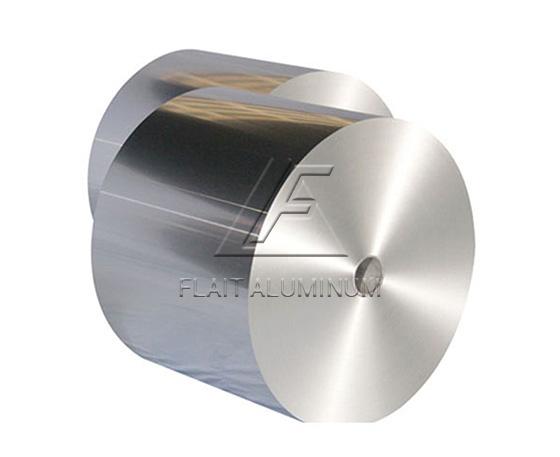

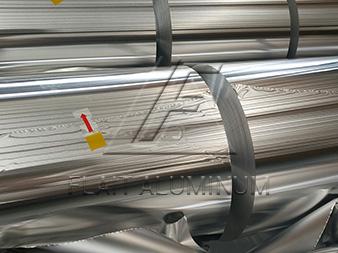

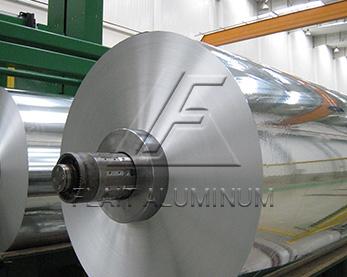

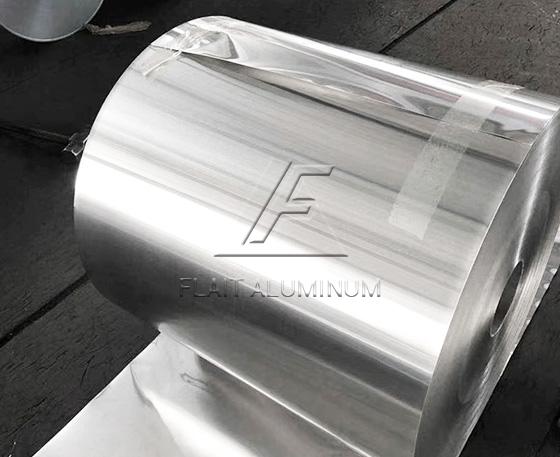

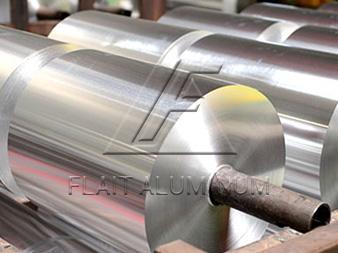

The Introduction of 1235 Aluminum Foil

The aluminum content of 1235 aluminum foil is more than 99.35%. It is also a kind of pure aluminum foil. It has good anti-rust performance, formability and excellent mechanical properties such as elongation and tensile strength. It is widely used in wire and cable, adhesive tape, battery foil, household foil, flexible packaging foil, pharmaceutical foil and other fields.Click to Order

1235 Aluminum foil for cigarette: alloy temper: 1235-O; typical thickness: 0.006-0.007; used for cigarette packaging after lining paper, printing or painting.

1235 Aluminum foil for flexible packaging: alloy temper: 1235-O; typical thickness: 0.006-0.009; used for candy, milk and dairy products, powdered food, beverage, tea, bread and various small foods, etc.

1235 Aluminum foil for cable: alloy temper: 1235-O; typical thickness: 0.006-0.04; Used for wrapping weak wires for shielding.

1235 Aluminum foil for capacitors: alloy temper: 1235-O; typical thickness: 0.0045-0.009; used for electronic capacitors.

1235 Aluminum foil for battery: alloy temper: 1235-H18; typical thickness: 0.012-0.035; used for lithium-ion battery current collector materials.

1235 Aluminum foil for adhesive tape: alloy temper 1235-O; typical thickness: 0.01-0.05; used for various electronic products such as transformers, mobile phones, computers, PDAs, PDPs, LED displays, notebook computers, copiers, etc. where electromagnetic shielding is required.

The Product Specification of 1235 Aluminum Foil

Alloy	1235 aluminum foil
Temper	O,H18,etc.
Thickness(mm)	0.018-0.20
Width(mm)	100-1600
Length(mm)	C
Surface	Mill finish
ID	76mm,152mm,408mm,508mm or customized
Standard	ASTM-B-209M,BS EN 485-2,BS EN 573-3,GB/T3880-2008
Certificate	Mill Test Certificate, Certificate of origin: Form A, Form E, CO
Package	Export standard, Eye to sky or eye to wall
Application	wire and cable, adhesive tape, battery foil, household foil, flexible packaging foil, pharmaceutical foil, etc.

Chemical Composition of 1235 aluminum foil
Alloy	Al	Cu	Mg	Mn	Si+Fe	Ti	V	Zn	Other
1235	≥99.35	≤0.05	≤0.05	≤0.05	≤0.65	≤0.06	≤0.05	≤0.01	≤0.03

Mechanical Properties of 1235 aluminium foil
Alloy	Product Type	Temper	Thickness(mm)	Tensile Strength（Mpa）	Elongation(%)A100mm
1235	Food and Household Foil	O	0.01-0.024	40-100	≥1
			0.025-0.04	45-100	≥2
			0.041-0.07	45-100	≥4
		H18	0.01-0.07	≥135	–
	aluminium foil for capacitor	H18	0.02-0.05	≥135	–
	aluminium foil for cable	O	0.01-0.024	40-100	≥1
			0.025-0.04	45-100	≥2
			0.041-0.07	45-100	≥4
	aluminium foil for adhesive tape	O	0.012-0.04	50-90	≥1
		H18	0.012-0.04	≥135	–
		O	0.03-0.07	60-100	≥2

The Product Features of 1235 Aluminum Foil

1235 Aluminum foil has good anti-rust properties and corrosion resistance.
1235 Aluminum foil has good ductility and formability.
1235 Aluminum foil has high thermal and electrical conductivity.
1235 Aluminum foil has good heat sealability.
1235 Aluminum foil is safe, non-toxic, environmentally friendly and recyclable.
The surface of 1235 aluminum foil has no black oil spots, scratches, bright lines, roll marks and other defects.

The Application of 1235 Aluminum Foil

1235 Aluminum foil is widely used in various industries because of its unique properties. Generally used in food, medicine, cosmetics and other flexible packaging, cigarette packaging, household foil, capacitors, cables, tapes, etc.
