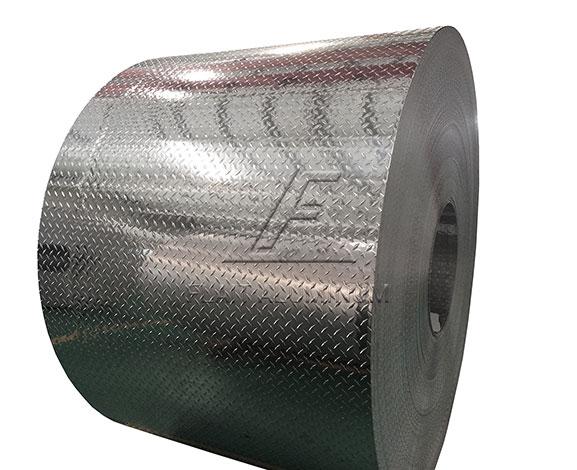

Aluminum diamond tread plate

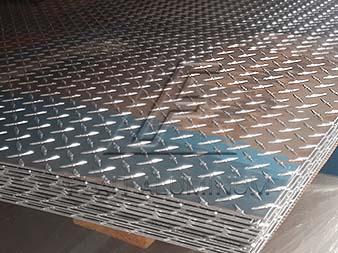

Aluminum diamond tread plate

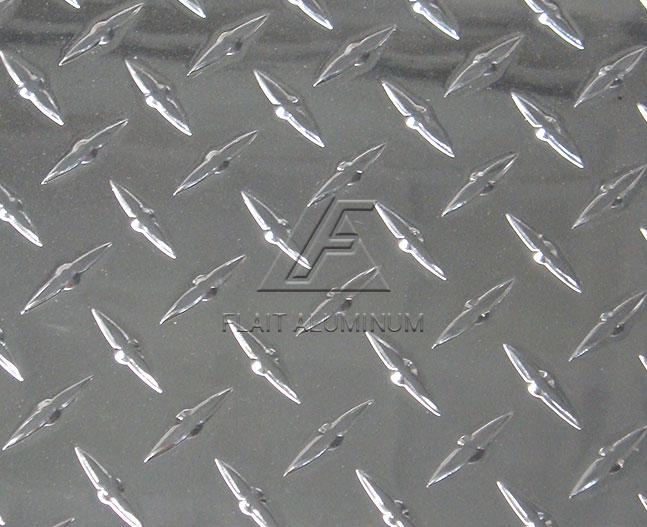

Aluminum diamond tread plate

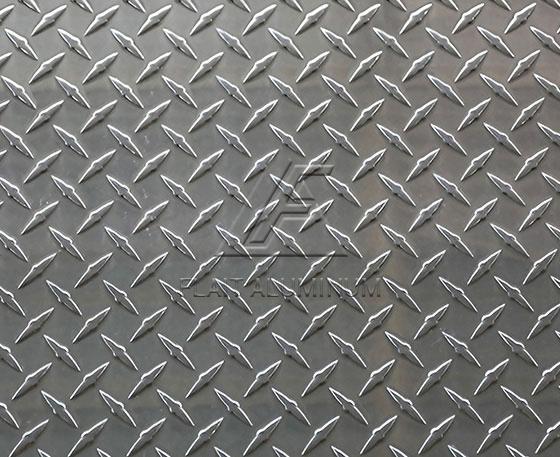

Aluminum diamond tread plate

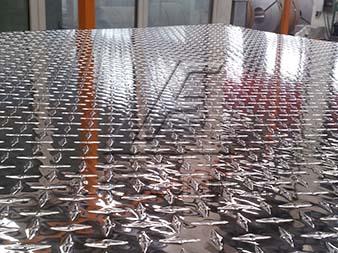

Aluminum diamond tread plate

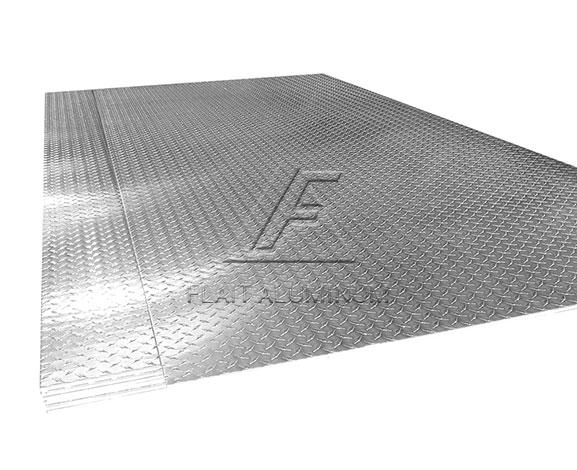

Aluminum diamond tread plate

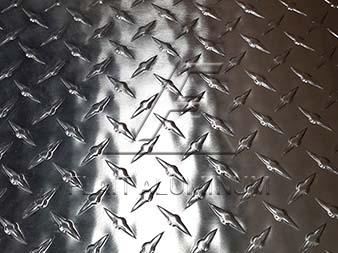

Aluminum diamond tread plate

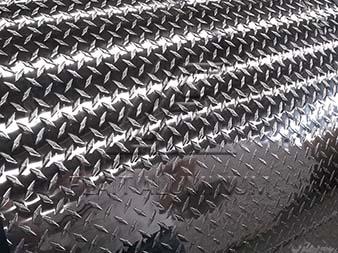

Aluminum diamond tread plate

Aluminum Diamond Tread Plate

  • Alloy: 1060,3003,5005,5052,5083,5086,6061, 6063,6082
  • Temper: O,H14,H22,H24,H32,H34,H36,H38, H111,H112,H321,T6
  • Width(mm): 800-2500
  • Thickness(mm): 1.50-6.35
  • Length(mm): C

The Introduction of Aluminum Diamond Tread Plate

Aluminum diamond tread plate, also known as aluminum diamond plate, is a type of aluminum checker plate that has a diamond pattern embossed on its surface that provides slip resistance. Aluminum diamond tread plate is available in different sizes and thicknesses, depending on the intended purpose.Click to Order

  • Aluminum diamond tread plate
  • Aluminum diamond tread plate
  • Aluminum diamond tread plate
  • Aluminum diamond tread plate

The Product Specification of Aluminum Diamond Tread Plate

Alloy 1 Series 1060,1100
3 Series 3003,3105
5 Series 5005,5052,5251,5754,5454,5154,5083,5086
6 Series 6061,6063,6082
Temper O, H12, H14, H16, H18, H22, H24, H26,
H32, H34, H36, H38, H111, H112, H114, H224, T4, T6
Thickness(mm) 1.5-6.35
Width(mm) 800-2500
Length(mm) C
Surface Bright finish, Mill finish
Bar difference 1 bar (Diamond/Pointer), 2 bar, 3 bar, big/small 5 bar
Weight about 2.5 tons per pallet
Standard product EN-1386,ASTM,GBT,JIS
Protection Paper interlayer



Available Dimension
Mill finish Surface Bright finish Surface
Thickness (mm) 1.00---6.50mm 1.20---6.50mm
Pattern height Sheet Thickness from 1.0mm to 2.0mm,  bar height: 0.50mm Sheet Thickness from 1.0mm to 2.0mm,  bar height: 0.50mm
Sheet Thickness from 1.0mm to 2.0mm,  bar height: 1.00mm Sheet Thickness from 1.0mm to 2.0mm,  bar height: 1.00mm
Sheet Thickness above 2.0mm,  bar height: 1.50mm Sheet Thickness above 2.0mm,  bar height: 1.50mm
Width (mm) Maximum 1500mm Maximum 1650mm
Length (mm) max 6000mm for sheet or as require d for coil max 6000mm for sheet or as required for coil
Paper interleaves On request for selected On request for selected
Normal size 1200×2400mm,1219×2438mm,1219×3048mm 1200×2400mm,1219×2438mm,1219×3048mm

The Product Features of Aluminum Diamond Tread Plate

  • The surface of the aluminum tread checkered plate sheet has high gloss and no defects visible to the naked eye.
  • Our fast online quenching line greatly shortens the production cycle and improves the processing performance of patterned aluminum plates while ensuring product quality.
  • The aluminum tread checkered plate sheet has high strength, excellent corrosion resistance and good weldability.
  • The aluminum tread checkered plate sheet has good formability, easy processing, non-slip and moisture-proof.

The Application of Aluminum Diamond Tread Plate

  • Floor: The skid resistance and durability of aluminum diamond tread plate make it popular for flooring in industrial and commercial settings. It is commonly used in factories, warehouses, gymnasiums, and public transportation vehicles.
  • Construction industry: Aluminum diamond tread plate is used for various construction applications, including stair treads, walkways, and wall paneling.
  • Transportation industry: The lightweight and durability of aluminum diamond tread plate make it an ideal material for transportation industry applications such as truck beds, trailers, and cargo carriers.
  • Marine and offshore industry: Aluminum diamond tread plate is highly resistant to corrosion, making it an excellent material for marine and offshore applications such as boat decks, docks, and platforms.
  • Safety equipment: Aluminum diamond tread plate's slip resistance makes it an ideal material for safety equipment such as ladder rungs, catwalks, and safety flooring.
