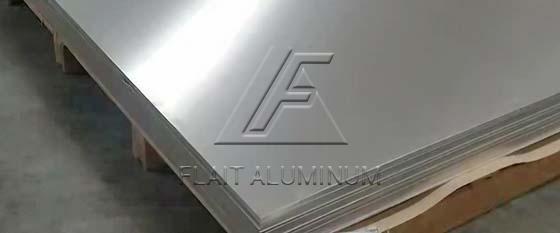

The Introduction of 2017 Aluminum Sheet Plate

2017 Aluminum sheet plate is is a typical hard aluminum alloy in the Al-Cu-Mg series, with good comprehensive performance and the largest amount of hard aluminum. 2017 Aluminum plate has high strength and good machinability, but poor corrosion resistance. 2017 Aluminum plate is characterized by high hardness, among which the copper content is the highest, about 3-5%; high strength and certain heat resistance, can be used for working parts below 150°C; the temperature is higher than 125 °C, the strength of the 2017 aluminum plate is higher than 7075 aluminum plate. 2017 Aluminum plate belongs to aviation aluminum, which is not commonly used in conventional industries at present. 2017 Aluminum sheet is widely used in aircraft structures, molds, precision parts, rivets, truck hubs, propeller elements and various other structural parts.

The Product Specification of 2017 Aluminum Sheet Plate

Alloy	2017 aluminum sheet plate
Temper	F,O,T3,T4,T351,H112,etc.
Thickness (mm)	1.0-600
Width (mm)	500-2650
Length (mm)	500-16000
Application	Molds, rivets, truck hubs, propeller elements, etc.

Chemical composition:

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Zr	Others		AL
2017	0.2-0.8	0.70	3.5-4.5	0.4-1.0	0.4-0.8	0.10	0.25	0.15	-	Single	Total	Balance
										0.05	0.15

Mechanical properties:

Alloy & Temper

Tensile strength

Rm/Mpa

Yield strength

Rp0.2/Mpa

Elongation

Hardness

HBWα

2017-T4

390

245

115

Physical properties:

Alloy & Temper	Thermal expansion coefficient（20-100℃） µm/m•k	Melting point range（℃）	Conductivity 20℃（68°F）（%IACS)	Resistivity 20（68°F）Ωmm2/m	Density（20℃)（g/cm³）
2017-T4	23.6	513-640	34	0.05	2.8

The Product Features of 2017 Aluminum Sheet Plate

2017 aluminum plate surface has no oil spots, no waves, no scratches, no roll marks, neat trimming, and no burrs;
2017 aluminum plate has good machinability, resistivity, spot welding and seam welding performance;
2017 aluminum plate has high strength and certain heat resistance, and can be used as working parts below 150°C; when the temperature is higher than 125°C, the strength of 2017 aluminum plate is higher than that of 7075 alloy.

The Application of 2017 Aluminum Sheet Plate

2017 Aluminum plate is usually used in rivets, general machinery parts, aircraft, ships, transportation, building structural parts, transport structural parts, propeller components and accessories, etc.
