1100 Aluminum Tread Checkered Plate Sheet

  • Alloy:1060,1100,3003,3105,5005,5052,5251,5154,5454,5754,5083,5086,
    6061,6063,6082
  • Temper:O, H12, H14, H16, H18, H22, H24, H26,H32, H34, H36, H38, H111, H112, H114, H224, T4, T6
  • Width(mm):100-1850
  • Thickness(mm): 0.8-8.0
  • Length(mm): 500-16000

The Introduction of 1100 Aluminum Tread Checkered Plate Sheet

1100 Aluminum Tread Checkered Plate Sheet

1100 aluminum tread checkered plate sheet belongs to industrial pure aluminum, and the aluminum content reaches more than 99.00%. Both the 1100 and the 1060 aluminum tread checkered plate sheet cannot be thermally treated, but they have extremely high corrosion resistance, the electrical conductivity and thermal conductivity are relatively good. Because of its low density and good plasticity, the 1100 aluminum tread checkered plate sheet is usually used for parts that require good formability, high corrosion resistance, and do not require high strength.1100 aluminum checkered plate is a low strength alloy with excellent corrosion resistance, satisfactory anodizing and conversion coating finishing characteristics, and is unmatched by any other commercial aluminum alloy in terms of machinability. It's easy to solder, braze and braze, but tends toward gumminess when machined.

The Product Specification of 1100 Aluminum Tread Checkered Plate Sheet

Alloy 1 Series 1060,1100
3 Series 3003,3105
5 Series 5005,5052,5251,5154,5454,5754,5083,5086
6 Series 6061,6063,6082
Temper O, H12, H14, H16, H18, H22, H24, H26,
 H32, H34, H36, H38, H111, H112, H114, H224, T4, T6
Thickness(mm) 0.8-8.0
Width(mm) 100-1850
Length(mm) 500-16000
Surface Bright finish, Mill finish
Bar difference 1 bar (Diamond/Pointer), 2 bar, 3 bar, big/small 5 bar
Weight about 2.5 tons per pallet
Standard product EN-1386,ASTM,GBT,JIS
Protection Paper interlayer



Available Dimension
Mill finish Surface Bright finish Surface
Thickness  (mm) 1.00---6.50mm 1.20---6.50mm
Pattern height Sheet Thickness from 1.0mm to 2.0mm,  bar height: 0.50mm Sheet Thickness from 1.0mm to 2.0mm,  bar height: 0.50mm
Sheet Thickness from 1.0mm to 2.0mm,  bar height: 1.00mm Sheet Thickness from 1.0mm to 2.0mm,  bar height: 1.00mm
Sheet Thickness above 2.0mm,  bar height: 1.50mm Sheet Thickness above 2.0mm,  bar height: 1.50mm
Width (mm) Maximum 1500mm Maximum 1650mm
Length (mm) max 6000mm for sheet or as require d for coil max 6000mm for sheet or as required for coil
Paper interleaves On request for selected On request for selected
Normal size 1200×2400mm, 1219×2438mm,  1219×3048mm 1200×2400mm, 1219×2438mm,  1219×3048mm

The Product Features of 1100 Aluminum Tread Checkered Plate Sheet

  • 1100 Aluminum tread checkered plate sheet has good mechanical properties and stable chemical composition, good quality and reasonable price.
  • The surface quality of the 1100 aluminum tread checkered plate sheet is good, without oil spots, waves, scratches, roll marks, and the trimmed edges are neat and burr-free.
  • We can customize products according to your requirements.
  • Provide free sample service.

The Application of 1100 Aluminum Tread Checkered Plate Sheet

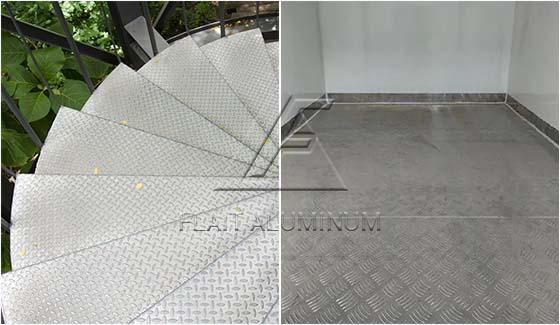

1100 Aluminum tread checked plate has good anti-skid performance and strong anti-corrosion, and is often used for anti-skid floors in public places or crowded places, such as bus floors, elevator floors, factory floors, etc. This product can show good facility decoration without painting, and also satisfies the requirements of use in rainy environment, reducing maintenance and replacement costs.

1100 Aluminum tread checked plate is made by adding a small amount of copper to pure aluminum. Because of its excellent corrosion resistance, simple production process and low cost, it can meet the needs of large-area refrigeration and is often used in refrigeration equipment. Such as constant temperature storage of dairy products, meat, fruits and vegetables, cold drinks, flowers, green plants, medicines, chemical raw materials, electronic instruments, etc.

1100 Aluminum tread checked plate can also be used for architectural decoration. It has a variety of patterns and textures, and is light in weight. It can be used for billboard building decoration, high-rise and factory exterior wall decoration, office lattice decoration, lamp holders, fan blades, etc. It has good decoration and practicability.
