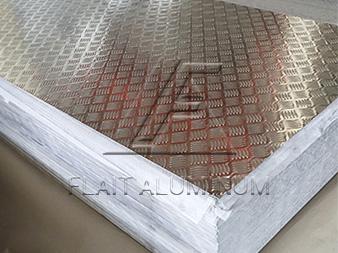

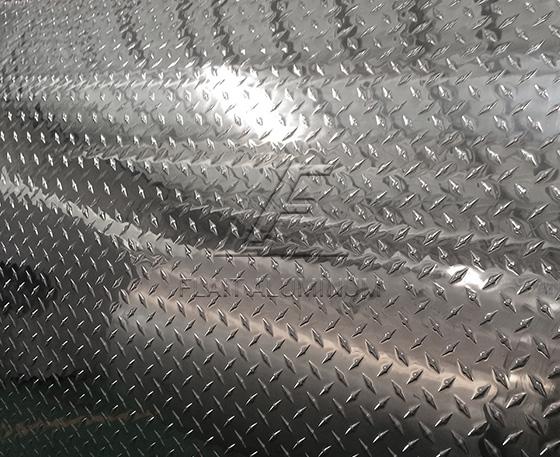

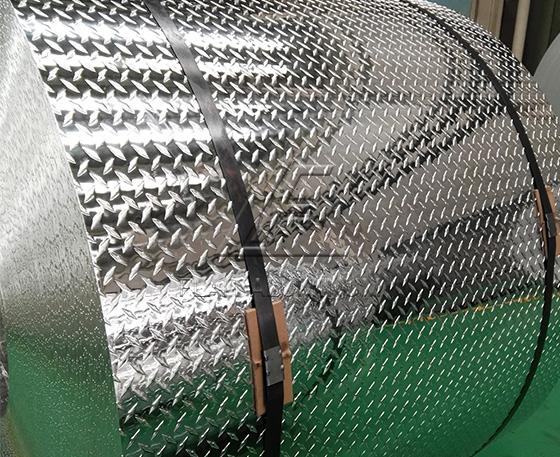

aluminum tread checkered plate
aluminum tread checkered plate
aluminum tread checkered plate
aluminum tread checkered sheet
aluminum tread checkered sheet
aluminum tread checkered sheet
aluminum tread checkered plate
aluminum tread checkered plate
aluminum tread checkered plate
aluminum tread checkered sheet
aluminum tread checkered sheet
aluminum tread checkered sheet

Aluminum Tread Checkered Plate Sheet

  • Alloy: 1060,3003,5052,5083,5086
  • Temper:O,H14,H22,H24,H32,H34,H36,H38, H111,H112,H321
  • Width(mm): 100-1850
  • Thickness(mm): 0.80-8.00
  • Length(mm): 500-16000

The Introduction of Aluminum Tread Checkered Plate Sheet

Patterned aluminum plate is also known as embossed aluminum plate or anti-slip aluminum plate. Patterned aluminum plate is an aluminum product that forms various patterns on the surface after calendering on the basis of aluminum plate. It has anti-skid effect and is widely used. The typical usage is to make anti-skid bottom plate, non-slip step ladder, or used in packaging, construction, curtain wall, etc.

The Classification of patterned aluminum plate Aluminum Tread Checkered Plate Sheet

According to different alloy elements, it is divided into 1xxx, 3xxx, 5xxx, and 6xxx series aluminum alloy plates.

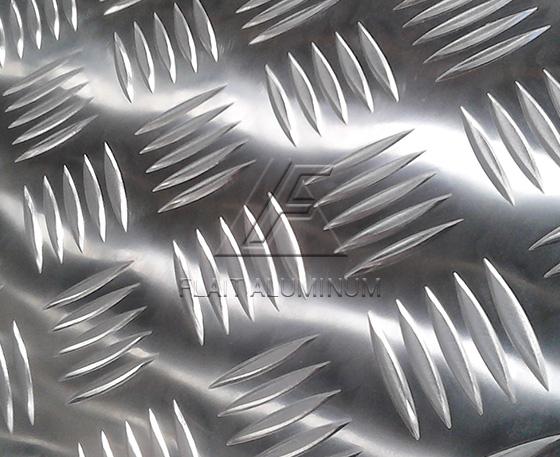

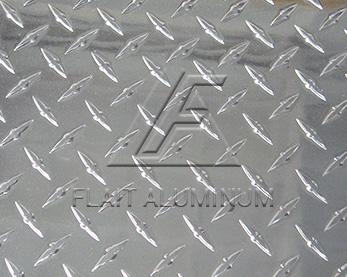

According to different patterns, it can be divided into one-rib (also called pointer-shaped or gem pattern plate), two-rib, three-rib, five-rib pattern plate, etc.

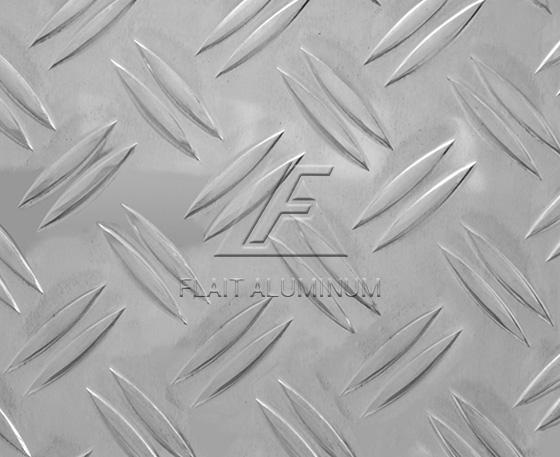

aluminum tread checkered plate

The Surface selection of Aluminum Tread Checkered Plate Sheet

Mill finish aluminum tread checker plate sheet

This is the surface of the aluminum plate without any external mechanical or chemical treatment after rolling. It has a certain roughness and is suitable for sidewalks, platform pedals, cold storage floors, bus floors, etc.

Bright finish aluminum tread checker plate sheet

The surface finish is high, the strength is higher than that of mill finish aluminum tread checker plate, and it has a certain decorative effect. It is suitable for decorative wall panels or non-slip areas with certain decorative requirements.

Anodized aluminum tread checker plate sheet

The aluminum pattern plate on the anodized surface has higher strength, stronger corrosion resistance, and can be oxidized into various colors, which is more decorative. It is mostly used in decoration fields with relatively high environmental requirements.

  • aluminum tread checkered plate
  • aluminum tread checkered plate
  • aluminum tread checkered sheet
  • aluminum tread checkered sheet

The Product Specification of Aluminum Tread Checkered Plate Sheet

Alloy 1 Series 1060,1100
3 Series 3003,3105
5 Series 5005,5052,5251,5154,5454,5754,5083,5086
6 Series 6061,6063,6082
Temper O, H12, H14, H16, H18, H22, H24, H26,
 H32, H34, H36, H38, H111, H112, H114, H224, T4, T6
Thickness(mm) 0.8-8.0
Width(mm) 100-1850
Length(mm) 500-16000
Surface Bright finish, Mill finish,Anodized
Bar difference 1 bar (Diamond/Pointer), 2 bar, 3 bar, big/small 5 bar
Weight about 2.5 tons per pallet
Standard product EN-1386,ASTM,GBT,JIS
Protection Paper interlayer



Available Dimension
Mill finish Surface Bright finish Surface
Thickness  (mm) 1.00---6.50mm 1.20---6.50mm
Pattern height Sheet Thickness from 1.0mm to 2.0mm,  bar height: 0.50mm Sheet Thickness from 1.0mm to 2.0mm,  bar height: 0.50mm
Sheet Thickness from 1.0mm to 2.0mm,  bar height: 1.00mm Sheet Thickness from 1.0mm to 2.0mm,  bar height: 1.00mm
Sheet Thickness above 2.0mm,  bar height: 1.50mm Sheet Thickness above 2.0mm,  bar height: 1.50mm
Width (mm) Maximum 1500mm Maximum 1650mm
Length (mm) max 6000mm for sheet or as require d for coil max 6000mm for sheet or as required for coil
Paper interleaves On request for selected On request for selected
Normal size 1200×2400mm, 1219×2438mm,  1219×3048mm 1200×2400mm, 1219×2438mm,  1219×3048mm

The Product Features of Aluminum Tread Checkered Plate Sheet

  • The surface of the aluminum tread checkered plate sheet has high gloss and no defects visible to the naked eye.
  • Our fast online quenching line greatly shortens the production cycle and improves the processing performance of patterned aluminum plates while ensuring product quality.
  • The aluminum tread checkered plate sheet has high strength, excellent corrosion resistance and good weldability.
  • The aluminum tread checkered plate sheet has good formability, easy processing, non-slip and moisture-proof.

The Application of Aluminum Tread Checkered Plate Sheet

1.The most typical application of aluminum tread checkered plate sheet is anti-slip in various scenarios, including but not limited to car floor, platform anti-slip, cold storage floor anti-slip, workshop floor anti-slip, elevator anti-slip, ship anti-slip and anti-rust, stair treads, etc.;

2.It is also commonly used in the field of architectural decoration, as wall decoration, ceiling, partition, etc.;

3.In addition, the stucco embossed aluminum plate coil is also used in refrigerators, air conditioners, packaging pipes and other fields.



Product packaging

1.We will pad paper or cover protective film on all aluminum plate products to ensure that the surface of the aluminum plate is perfect without scratches, and wrap it with plastic or kraft paper for waterproof and moisture-proof (each package has a moisture-proof desiccant).

2.We can package aluminum coil products according to customer requirements, either "eye to wall" or "eye to sky".

3.Use wooden pallets with fumigation marks and reinforce them with steel belts to avoid collisions during transportation and ensure that the shape of the aluminum plate remains unchanged;

4.Pack according to customers’ requirements.
