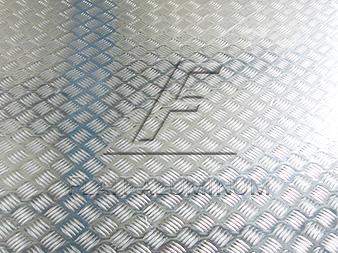

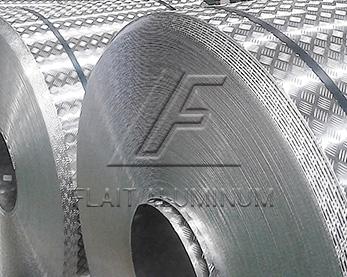

1060 aluminum tread checkered plate
1060 aluminum tread checkered plate
1060 aluminum tread checkered sheet
1060 aluminum tread checkered sheet
1060 aluminum tread checkered plate
1060 aluminum tread checkered plate
1060 aluminum tread checkered sheet
1060 aluminum tread checkered sheet

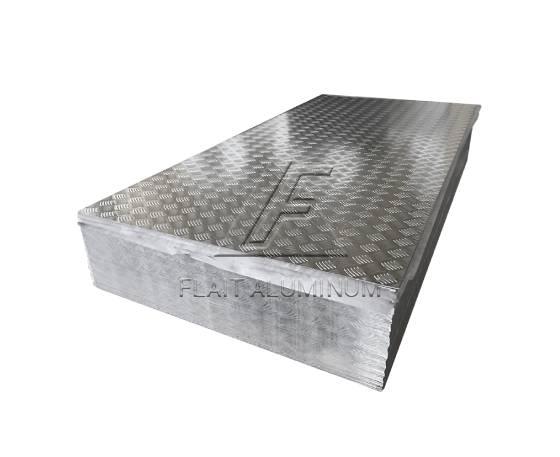

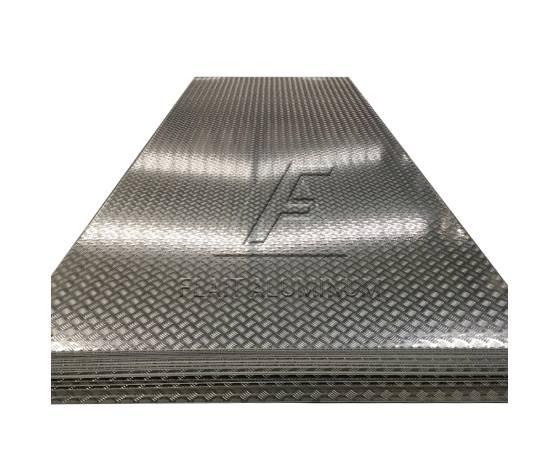

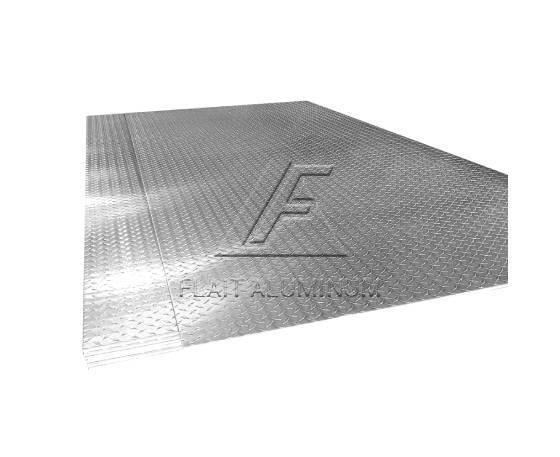

1060 Aluminum Tread Checkered Plate Sheet

  • Alloy: 1060
  • Temper: O,H14,H24,H22,H18,H112
  • Width(mm): 100-1850
  • Thickness(mm): 0.80-8.00
  • Length(mm): 500-16000

The Introduction of 1060 Aluminum Tread Checkered Plate Sheet

1060 aluminum tread checkered plate sheet has forming processing characteristics, high corrosion resistance, and good weldability. It is highly resilient to aggressive substances and is therefore considered indestructible. They are used in many different fields due to their durability as they do not deform even after a long time. Aluminum checkered plate is a very popular material, whether it is used in industrial floors, aircraft, ships and vehicles, or indoor or outdoor stairs, because of its excellent performance, high resilience, light weight and decorative appearance be appreciated.

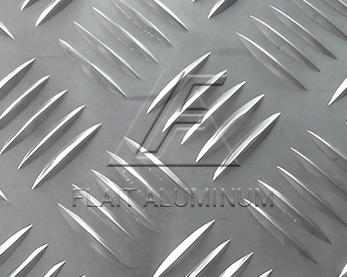

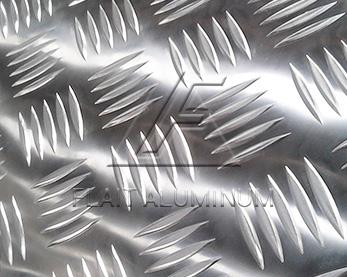

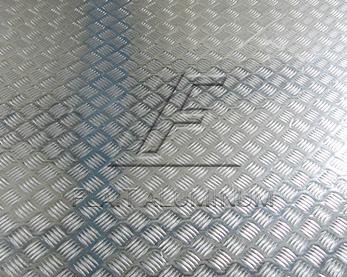

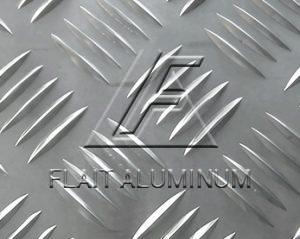

1060 - H14/H24 five bars aluminum checkered plate, five bars aluminum tread plate also called willow leaf pattern plate. It has good skid resistance and is widely used in building (floor) platform design and so on. As the pattern of the surface of the aluminum plate is arranged in a relatively parallel line according to five concave and convex patterns, each pattern and the other patterns show a 60-80 degree angle, so this pattern has excellent antiskid performance. This kind of aluminum plate is usually used as skid proof, which has good skid resistance and low price comparing with 3003 and 5052 etc.

1060 Aluminum Tread Checkered Plate Sheet

The Product Specification of 1060 Aluminum Tread Checkered Plate Sheet

Alloy 1 Series 1060,1100
3 Series 3003,3105
5 Series 5005,5052,5251,5154,5454,5754,5083,5086
6 Series 6061,6063,6082
Temper O, H12, H14, H16, H18, H22, H24, H26,
 H32, H34, H36, H38, H111, H112, H114, H224, T4, T6
Thickness(mm) 0.8-8.0
Width(mm) 100-1850
Length(mm) 500-16000
Surface Bright finish, Mill finish

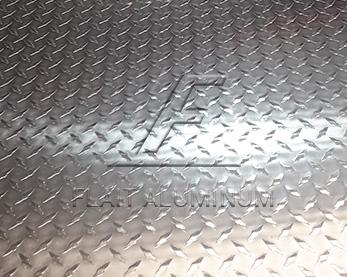

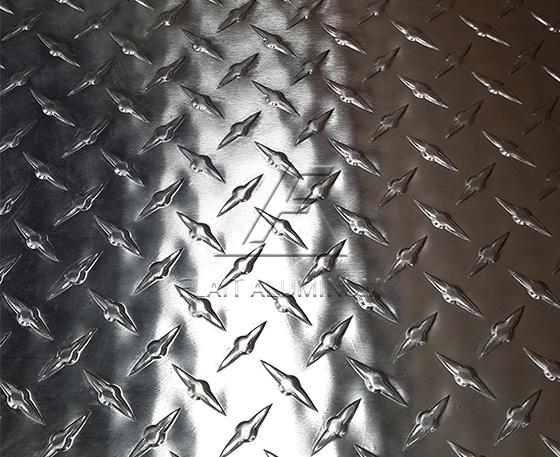

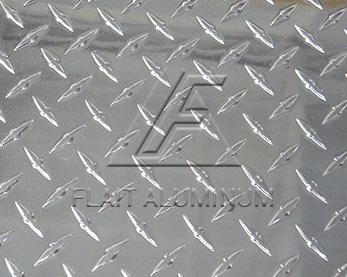

Bar difference 1 bar (Diamond/Pointer), 2 bar, 3 bar, big/small 5 bar
Weight about 2.5 tons per pallet
Standard product EN-1386,ASTM,GBT,JIS
Protection Paper interlayer



Available Dimension
Mill finish Surface Bright finish Surface
Thickness  (mm) 1.00---6.50mm 1.20---6.50mm
Pattern height Sheet Thickness from 1.0mm to 2.0mm,  bar height: 0.50mm Sheet Thickness from 1.0mm to 2.0mm,  bar height: 0.50mm
Sheet Thickness from 1.0mm to 2.0mm,  bar height: 1.00mm Sheet Thickness from 1.0mm to 2.0mm,  bar height: 1.00mm
Sheet Thickness above 2.0mm,  bar height: 1.50mm Sheet Thickness above 2.0mm,  bar height: 1.50mm
Width (mm) Maximum 1500mm Maximum 1650mm

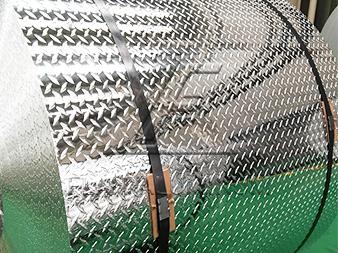

Length (mm) max 6000mm for sheet or as require d for coil max 6000mm for sheet or as required for coil
Paper interleaves On request for selected On request for selected
Normal size 1200×2400mm, 1219×2438mm,  1219×3048mm 1200×2400mm, 1219×2438mm,  1219×3048mm

The Product Features of 1060 Aluminum Tread Checkered Plate Sheet

  • 1060 aluminum tread checkered plate sheet has good mechanical properties and stable chemical composition, good quality and reasonable price.
  • The surface quality of the 1060 aluminum tread checkered plate sheet is good, without oil spots, waves, scratches, roll marks, and the trimming is neat and burr-free.
  • We can customize products according to your requirements.
  • Provide free sample service.

The Application of 1060 Aluminum Tread Checkered Plate Sheet

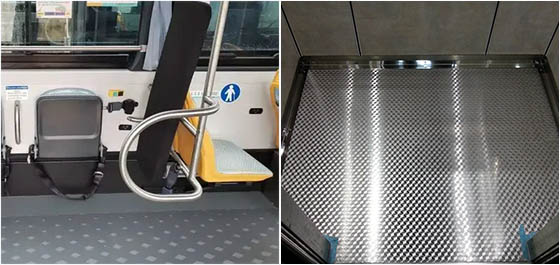

1060 aluminum tread checked plate has good anti-skid performance and strong anti-corrosion, and is often used for anti-skid floors in public places or crowded places, such as bus floors, elevator floors, factory floors, etc. This product can show good facility decoration without painting, and also satisfies the requirements of use in rainy environment, reducing maintenance and replacement costs.

1060 aluminum tread checked plate is made by adding a small amount of copper to pure aluminum. Because of its excellent corrosion resistance, simple production process and low cost, it can meet the needs of large-area refrigeration and is often used in refrigeration equipment. Such as constant temperature storage of dairy products, meat, fruits and vegetables, cold drinks, flowers, green plants, medicines, chemical raw materials, electronic instruments, etc.

1060 aluminum tread checked plate can also be used for architectural decoration. It has a variety of patterns and textures, and is light in weight. It can be used for billboard building decoration, high-rise and factory exterior wall decoration, office lattice decoration, lamp holders, fan blades, etc. It has good decoration and practicability.
