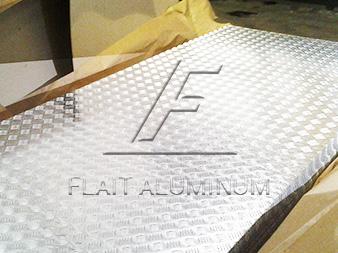

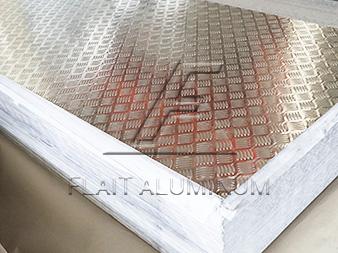

5083 aluminum tread checkered sheet
5083 aluminum tread checkered sheet
5083 aluminum tread checkered plate
5083 aluminum tread checkered plate
5083 aluminum tread checkered sheet
5083 aluminum tread checkered sheet
5083 aluminum tread checkered plate
5083 aluminum tread checkered plate

5083 Aluminum Tread Checkered Plate Sheet

  • Alloy:1060,1100,3003,3105,5005,5052,5251,5154,5454, 5754,5083,5086,6061, 6082
  • Temper:O,H12,H14,H16,H18,H22,H24,H26,H32,H34, H36,H38,H111,H112,H114,H224,T4,T6
  • Width(mm):100-1850
  • Thickness(mm): 0.8-8.0
  • Length(mm): 500-16000



5083 Aluminum Tread Checkered Plate Sheet

The Introduction of 5083 Aluminum Tread Checkered Plate Sheet

The main component of 5083 aluminum tread checkered plate sheet is magnesium element, the content is between 3% and 5%. Also known as aluminum-magnesium alloy. Due to its low density, it has high tensile strength and elongation. The varieties of 5083 patterned aluminum plates that Flait Aluminum can produce include diamond-shaped, two-bar, three-bar, five-bar pattern plates, etc., which are widely used in construction, vehicles, ships and other non-slip floors and decorations. The price of 5083 patterned aluminum plate is more expensive than 1 series and 3 series, but the patterned aluminum plate produced by Flait is of high quality and is very popular in domestic and foreign markets.Click to Order

5083 aluminum tread checkered sheet
  • 5083 aluminum tread checkered sheet
  • 5083 aluminum tread checkered sheet
  • 5083 aluminum tread checkered plate
  • 5083 aluminum tread checkered plate

The Product Specification of 5083 Aluminum Tread Checkered Plate Sheet

Alloy 1 Series 1060,1100
3 Series 3003,3105
5 Series 5005,5052,5251,5154,5454,5754,5083,5086
6 Series 6061,6063,6082
Temper O, H12, H14, H16, H18, H22, H24, H26,
 H32, H34, H36, H38, H111, H112, H114, H224, T4, T6
Thickness(mm) 0.8-8.0
Width(mm) 100-1850
Length(mm) 500-16000
Surface Bright finish, Mill finish

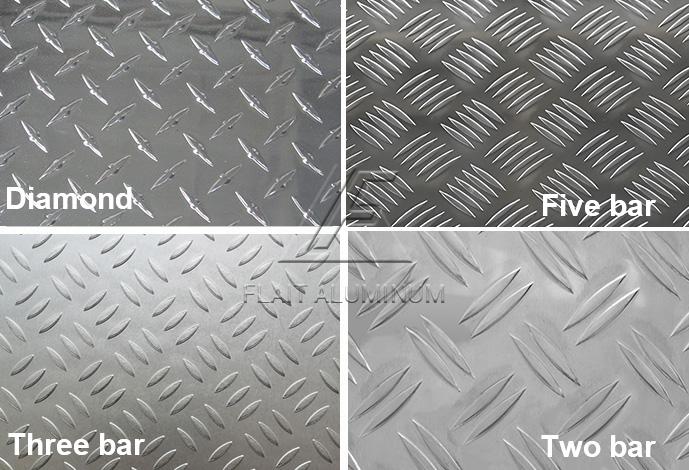

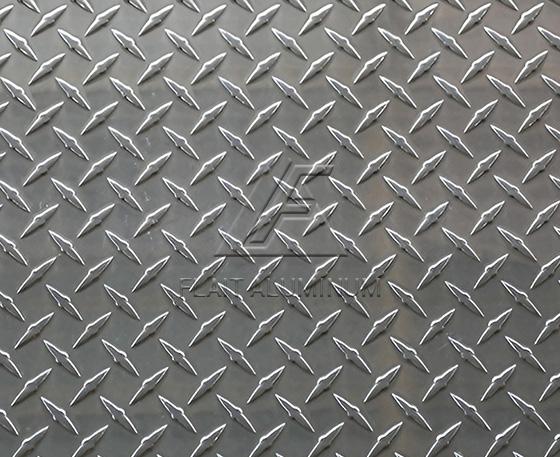

Bar difference 1 bar (Diamond/Pointer), 2 bar, 3 bar, big/small 5 bar

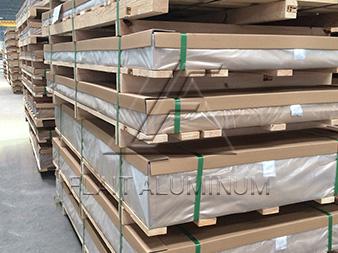

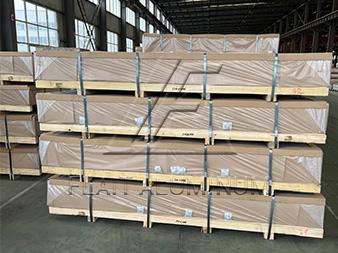

Weight about 2.5 tons per pallet
Standard product EN-1386,ASTM,GBT,JIS
Protection Paper interlayer



Available Dimension
Mill finish Surface Bright finish Surface
Thickness  (mm) 1.00---6.50mm 1.20---6.50mm
Pattern height Sheet Thickness from 1.0mm to 2.0mm,  bar height: 0.50mm Sheet Thickness from 1.0mm to 2.0mm,  bar height: 0.50mm
Sheet Thickness from 1.0mm to 2.0mm,  bar height: 1.00mm Sheet Thickness from 1.0mm to 2.0mm,  bar height: 1.00mm
Sheet Thickness above 2.0mm,  bar height: 1.50mm Sheet Thickness above 2.0mm,  bar height: 1.50mm
Width (mm) Maximum 1500mm Maximum 1650mm
Length (mm) max 6000mm for sheet or as require d for coil max 6000mm for sheet or as required for coil
Paper interleaves On request for selected On request for selected
Normal size 1200×2400mm, 1219×2438mm,  1219×3048mm 1200×2400mm, 1219×2438mm,  1219×3048mm

The Product Features of 5083 Aluminum Tread Checkered Plate Sheet

  • The 5083 aluminum tread checkered plate sheet has high tensile strength, high elongation, good corrosion resistance, and durability. It can be used in vehicles to reduce the weight of the vehicle body, thereby reducing the inertia of the vehicle body. It can also improve transportation efficiency while improving transportation efficiency. To achieve the effect of energy saving and emission reduction.
  • The surface quality of the 5083 aluminum tread checkered plate sheet is good, without oil spots, waves, scratches, roll marks, and the trimming is neat and burr-free.
  • 5083 aluminum plate products of different thicknesses and shapes can be customized according to customer needs.

The Application of 5083 Aluminum Tread Checkered Plate Sheet

5083 aluminum tread checkered plate sheet is used in the carriage: the carriages loaded with goods are generally made of aluminum alloy, and the bottom plate of the carriage is mostly made of patterned aluminum plate, which has good anti-skid effect.

5083 aluminum tread checkered plate sheet is used in construction. It can be used for wall decoration. 5083 lattice aluminum plate is a common aluminum alloy, which ensures that the lattice aluminum plate for construction has high wind pressure resistance, assembly performance, corrosion resistance and decorative performance.
