The Introduction of 6063 Aluminum Sheet Plate

6063 Aluminum sheet plate belongs to the Al-Mg-Si series high plasticity alloy, which is an alloy that can be strengthened by heat treatment. 6063 Aluminum plate has excellent processing performance, excellent weldability, good corrosion resistance, good toughness, easy polishing and covering color film, and excellent anodic oxidation effect. The tensile strength and yield strength of 6063 aluminum plate at different temperatures are good, and the elongation is relatively large. It has excellent weldability, gas welding, arc welding, contact spot welding and wire welding are all available, and it has good brazeability. 6063 Aluminum plate is a typical extrusion alloy. 6063 aluminum profiles are widely used in building profiles, pipes, vehicles, furniture, rods, profiles for lifts, etc.Click to Order

The Product Specification of 6063 Aluminum Sheet Plate

Alloy	6063 aluminum sheet plate
Temper	F,O,T4,T6,T651,etc.
Thickness (mm)	0.30-500
Width (mm)	500-2650
Length (mm)	500-16000
Package	Export packaging (protective film, interleaved paper)
Application	Automobile, truck wheel hub, mobile phone casing, precision mold, etc.

Chemical composition:

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Zr	Others		AL
6063	0.60	0.35	0.10	0.10	0.90	0.10	0.10	0.10	-	Single	Total	Balance
										0.05	0.15

Mechanical properties:

Alloy

Temper

Tensile Strength

Rm(Mpa)

Yield Strength

Rp0.2(Mpa)

Elongation

A(%)

Hardness

6063

186

145

241

214

The Product Features of 6063 Aluminum Sheet Plate

6063 aluminum plate has strong corrosion resistance, no tendency of stress corrosion cracking, excellent welding performance, and the corrosion performance in the welding area remains unchanged.
6063 aluminum plate can be oxidized, the color and luster will not change after surface anodic oxidation treatment, and the appearance is beautiful.
The surface of the 6063 aluminum plate has no peeling, air bubbles, surface roughness and local mechanical damage, and the surface of the aluminum plate has no defects.

The Application of 6063 Aluminum Sheet Plate

6063 aluminum plate: used for automobile floor plates, auto parts, mobile phone accessories, etc.

6063 aluminum medium and thick plate: used for automobile wheel hub, mold, structural parts of passenger car body, etc.

6063 aluminum plate is mainly used to make the overall outline of the car body and the body of the tanker. As a high aluminum magnesium alloy, 6063 is a non-heat-treatable alloy with good strength, corrosion resistance, and good machinability. It can be used to manufacture aircraft fuel tanks, oil pipes, transportation vehicles, ships, etc. 6063 aluminum sheet can be used in various fields. In automobile manufacturing, it can be used as raw material for processing and manufacturing of car body parts, and can also be used as processing material for tank car body; in the field of construction, it can be used as decorative plate, anti-corrosion plate, and can also be used for deep processing.

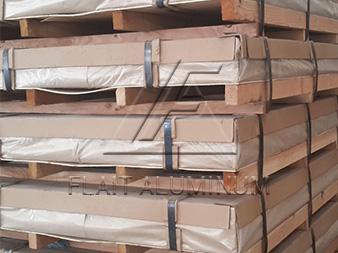

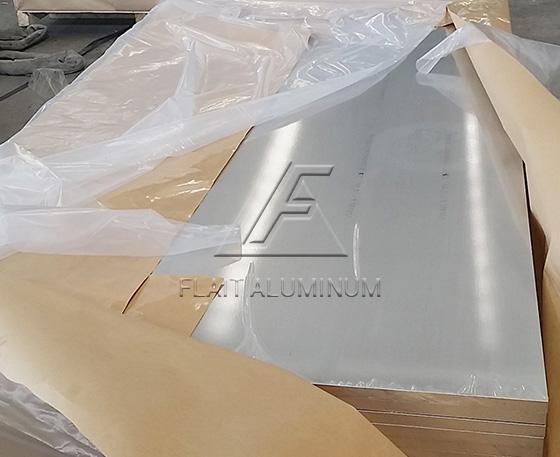

6063 Aluminum Plate Packaging

1. Interleave paper or cover protective film on the aluminum plate to ensure that the surface of the aluminum plate is perfect without scratches;

2. Wrap it with plastic or kraft paper to prevent moisture and rain, and ensure that the aluminum plate is clean and free of dirt during transportation (each package has a moisture-proof desiccant);

3. Use wooden pallets with fumigation marks and reinforce them with steel belts to avoid collisions during transportation and ensure that the shape of the aluminum plate remains unchanged;

4. Pack according to customers’ requirements.
