5A06 Aluminum Sheet Plate - Flait Aluminum

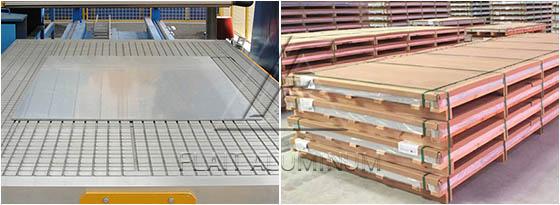

The Introduction of 5A06 Aluminum Sheet Plate

5A06 Aluminum sheet plate is AL-Mg series anti-rust aluminum, which cannot be strengthened by heat treatment. The magnesium content of 5A06 alloy is higher, and its strength is lower, which is similar to that of 5A03 aluminum plate. 5A06 Aluminum plate has high strength, corrosion resistance and stability. The plasticity in the annealed temper is high, and the plasticity in the semi-cold hardened temper is acceptable. 5A06 Aluminum sheet has good corrosion resistance and good weldability. The air tightness and weld plasticity of the weld seam welded by argon arc welding are acceptable, and the strength of the welded joints of gas welding and spot welding is 90~95% of the matrix strength, and the machinability is good.

The Product Specification of 5A06 Aluminum Sheet Plate

Alloy	5A06 aluminum sheet plate
Temper	F,O,H12,H14,H16,H18,H19,H22,H24,H26,H28, H32,H34,H36,H38,H111,H112,H114,H116,H321,etc.
Thickness (mm)	0.10-600
Width (mm)	100-2650
Length (mm)	500-16000
Application	Molds, automobiles, pressure vessels, etc.

Chemical composition:

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Ni	Others		AL
5A06	0.40	0.40	0.10	0.5-0.8	5.8-6.8	-	0.20	0.02-0.10	-	Single	Total	Remainder
										0.05	0.15

Mechanical properties:

Alloy & Temper

Tensile strength

σb (MPa)

Yield strength

σ0.2 (MPa)

Elongation

δ5 (%)

Hardness

(HB)

5A06-H112

305

145

The Product Features of 5A06 Aluminum Sheet Plate

5A06 aluminum plate is anti-rust aluminum with high strength and good corrosion resistance.
5A06 aluminum plate can be welded by argon arc welding, the air tightness and plasticity of the weld are acceptable, the strength of the welded joint by gas welding and spot welding is 90~95% of the matrix strength, and the machinability is good.
The surface of 5A06 aluminum plate has no oil spots, no waves, no scratches, no roll marks, neat trimming, and no burrs.

The Application of 5A06 Aluminum Sheet Plate

5A06 aluminum plate is usually used to manufacture welded pipes, welded fuel tanks and other liquid containers, and other parts that require high process plasticity, good corrosion resistance, and medium load; wire rods are used as electrodes and rivets, and rivets need to be anodized. Also, similar alloys (such as 5456) are used to make armor plates and high-strength structural parts, like storage tanks, pressure vessels, and marine components.

The Price of 5A06 Aluminum Sheet Plate

The price of 5A06 aluminum plate = aluminum ingot price + processing fee.

Note: 5A06 aluminum plate has different tempers and specifications, the quotations of each aluminum plate manufacturer is also different. For detailed quotation, free online consultation is available, we are very happy to provide you with support and help!
