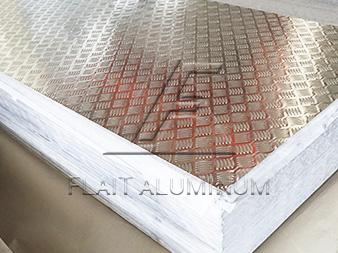

3003 Aluminum Tread Checkered Plate Sheet

The Introduction of 3003 Aluminum Tread Checkered Plate Sheet

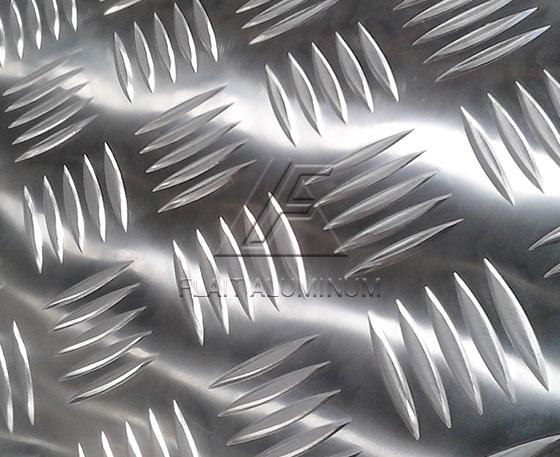

3003 Aluminum tread checkered plate sheet is a typical Al-Mn alloy, also known as anti-rust aluminum plate. The manganese content of the 3003 pattern aluminum plate can reach 1.20%, because the 3003 pattern aluminum plate is better than the 1 series aluminum plate in terms of anti-rust performance. Because of the increase of manganese element, the hardness of 3003 patterned aluminum plate alloy is high, it is well applied in mechanics, has good formability, very good corrosion resistance and weldability. H14 designates the temper, and means that 3003 has been strain hardened and partially annealed. In this condition, 3003 can be easily formed. Embossing or debossing 3003 in this temper should not strain or crack the aluminum. 3003 Aluminum tread checkered plate sheet- often referred to as diamond plate, the diamond trend pattern is slip-resistant and cosmetically appealing. The 3003 patterned aluminum plate has a patterned aluminum plate with one rib, two ribs, three ribs, and five ribs.Click to Order

The Product Specification of 3003 Aluminum Tread Checkered Plate Sheet

Alloy	1 Series	1060,1100




	3 Series	3003,3105
	5 Series	5005,5052,5251,5154,5454,5754,5083,5086
	6 Series	6061,6063,6082
Temper	O, H12, H14, H16, H18, H22, H24, H26,
	H32, H34, H36, H38, H111, H112, H114, H224, T4, T6
Thickness(mm)	0.8-8.0

Width(mm)	100-1850

Length(mm)	500-16000

Surface	Bright finish, Mill finish

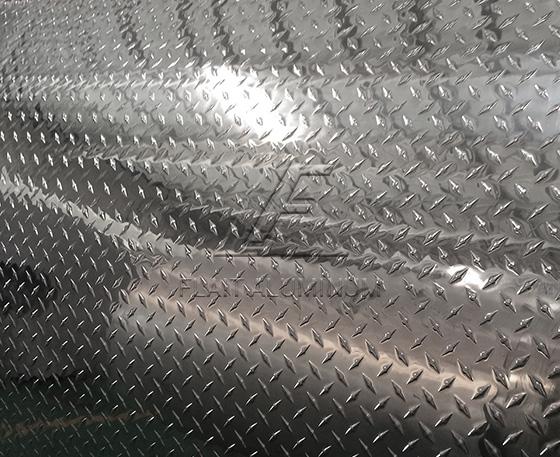

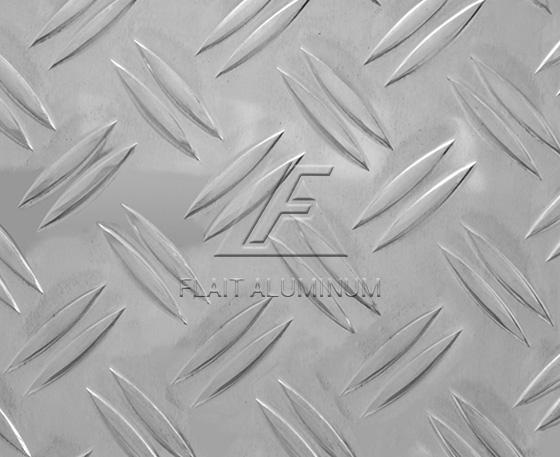

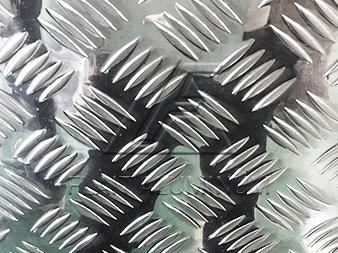

Bar difference	1 bar (Diamond/Pointer), 2 bar, 3 bar, big/small 5 bar
Weight	about 2.5 tons per pallet
Standard product	EN-1386,ASTM,GBT,JIS
Protection	Paper interlayer

Available Dimension
	Mill finish Surface	Bright finish Surface
Thickness (mm)	1.00---6.50mm	1.20---6.50mm
Pattern height	Sheet Thickness from 1.0mm to 2.0mm, bar height: 0.50mm	Sheet Thickness from 1.0mm to 2.0mm, bar height: 0.50mm
	Sheet Thickness from 1.0mm to 2.0mm, bar height: 1.00mm	Sheet Thickness from 1.0mm to 2.0mm, bar height: 1.00mm
	Sheet Thickness above 2.0mm, bar height: 1.50mm	Sheet Thickness above 2.0mm, bar height: 1.50mm
Width (mm)	Maximum 1500mm	Maximum 1650mm

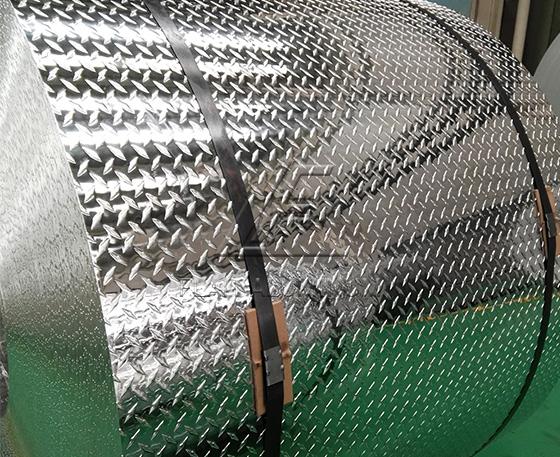

Length (mm)	max 6000mm for sheet or as require d for coil	max 6000mm for sheet or as required for coil
Paper interleaves	On request for selected	On request for selected
Normal size	1200×2400mm, 1219×2438mm, 1219×3048mm	1200×2400mm, 1219×2438mm, 1219×3048mm

The Product Features of 3003 Aluminum Tread Checkered Plate Sheet

3003 aluminum tread checkered plate sheet has strong plasticity, easy to form, and has excellent processing performance advantages.
3003 aluminum tread checkered plate sheet is of medium strength, good corrosion resistance, wide application and wide application field.
3003 aluminum tread checkered plate sheet has good mechanical properties and stable chemical composition, good quality and reasonable price.
The surface quality of the 3003 aluminum tread checkered plate sheet is good, no oil spots, waves, scratches, roll marks, and the trimming is neat and burr-free.
We can customize products according to your requirements.
Provide free sample service.

The Application of 3003 Aluminum Tread Checkered Plate Sheet

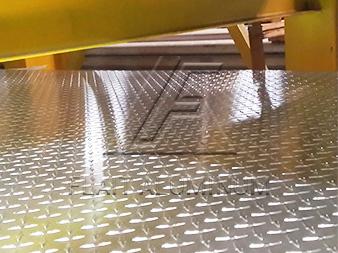

3003 Aluminum tread checkered plate sheet has good anti-slip and anti-rust properties. Therefore, it is often used in loading ramps, trench covers, dock floors, stair treads, car/truck/ambulance and fire engine floors, etc.

3003 Aluminum tread checkered plate sheet has a good surface quality and can be used as decorative wall panels, cabinets, ceilings, etc.

3003 Aluminum tread checkered plate sheet has good corrosion resistance and can be used in the chemical industry, or for decoration of ships and port facilities.

3003 Aluminum tread checkered plate sheet is also used in humid environments such as refrigerators and air-conditioning ventilation ducts.
