5083 High precision aluminum plate

Alloy: 5083
Temper: H111,H112,H116,H321
Width(mm): 100-2650
Thickness(mm): 0.30-300
Length(mm): 500-6000

Quick Quote Get A Quote

The Introduction of 5083 High precision aluminum plate

5083 high precision aluminum plate is precision processed from 5083 aluminum alloy. The products after precision grinding have high-quality surfaces, accurate dimensions, and greatly improved flatness, which can reach 0.05mm or less/㎡. At the same time, the 5083 high precision aluminum plates we produce adopt special processes to greatly reduce internal residual stress. The finished products can be directly used for customer needs, saving costs. At the same time, it also retains the characteristics of high strength and corrosion resistance of 5 series aluminum plates. It can be used in ships, automobiles, aerospace, electronic equipment and other fields, and is especially suitable for the manufacturing of various precision instruments, abrasives and high-precision tools. Click to Order

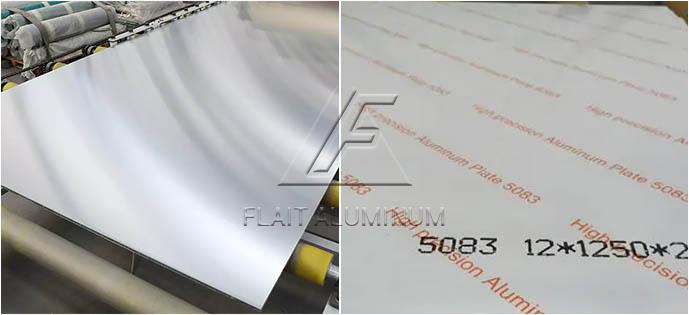

5083 high precision aluminum plate

The Product Specification of 5083 High precision aluminum plate

Alloy	5083 high precision aluminum plate
Temper	H111,H112,H116,H321,etc.
Thickness(mm)	0.3-300
Length(mm)	500-6000
Application	Ship building, aerospace, automobile industry, train vehicles, oil tanks, liquid storage, precision instruments, etc.

Alloy

Temper

Mechanical properties

Tensile Strength Rm（Mpa）

Yield strength Rp0.2

（Mpa）

Breaking elongation A5%

Brinell hardness HBW

5083

H111，H112

240-290

110-130

The Product Features of 5083 High precision aluminum plate

Excellent oxidation resistance and corrosion resistance.
Excellent surface flatness and thickness accuracy.
The internal stress is small and the deformation after processing is small.

The Application of 5083 High precision aluminum plate

Ship building: 5083 high precision aluminum plate has excellent corrosion resistance and high strength, and is often used in the manufacture of ship hulls, ship plates and internal structural components.
Vehicle manufacturing: Due to the high strength and light weight characteristics of 5083 high precision aluminum plate, it is suitable for the manufacture of car bodies, chassis and structural components of automobiles, trains, subways and other vehicles.
Aerospace: 5083 high precision aluminum plates are widely used in the aerospace field to manufacture structural parts, fuel tanks and shells of aircraft, helicopters, and spacecraft.
Chemical equipment: The corrosion resistance of 5083 high precision aluminum plate makes it an ideal choice for chemical equipment, storage tanks and pipelines.
Mold manufacturing: Because 5083 high precision aluminum plate has good processing performance and high flatness, it is often used to manufacture molds, pressure vessels and precision mechanical parts.
