7050 Aluminum Sheet Plate

The Introduction of 7050 Aluminum Sheet Plate

7050 Aluminum plate is a high-strength heat-treatable alloy, aviation super hard aluminum alloy, high strength, good wear resistance, excellent strength and resistance to exfoliation corrosion and stress corrosion cracking. The main alloying element of 7050 aluminum plate is zinc, which can be heat treated and strengthened, has good thermal deformation performance, wide quenching range, high strength and good welding performance. Click to Order

7050 aluminum plate is mainly used for high-stress structures with high strength requirements and strong corrosion resistance, such as mold processing, aircraft structural parts for medium and thick plate extrusions, free forgings and die forgings.

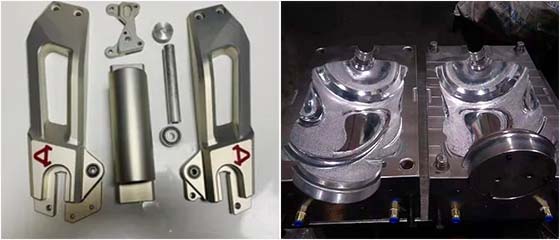

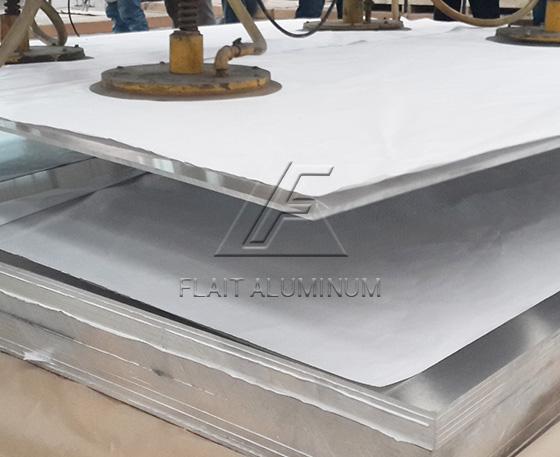

7050 aluminum sheet

The Product Specification of 7050 Aluminum Sheet Plate

Alloy	7050
Temper	F,O,T6,T651,T7451,etc.
Thickness (mm)	1.0-600
Width (mm)	500-2650
Length (mm)	500-16000
Application	Fixtures, golf ball heads, molds, etc.

Chemical composition:

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Zr	Others		AL
7050	0.12	0.15	2.00-2.60	0.10	1.90-2.60	0.04	5.70-6.70	0.06	0.08-0.15	Single	Total	Balance
										0.05	0.15

Mechanical properties:

Alloy & Temper

Tensile strength

Rm/Mpa

Yield strength

Rp0.2/Mpa

Elongation

%

Hardness

HB/Wα

7050-T7451

470

390

6

150

Physical properties:

Alloy & Temper	Thermal expansion coefficient（20-100℃） µm/m•k	Melting point range（℃）	Conductivity 20℃（68°F）（%IACS)	Resistivity 20（68°F）Ωmm2/m	Density（20℃)（g/cm³）
7050-T7451	23.5	490-630	41	0.0415	2.9

The Product Features of 7050 Aluminum Sheet Plate

7050 aluminum plate has high resistance to spalling and stress corrosion cracking.
7050 aluminum plate has high tensile strength, strong shear strength, high support strength, excellent fracture toughness and fatigue resistance.
7050 aluminum plate has high strength, excellent welding performance, and low tendency of welding cracks. It is a high-strength weldable aluminum alloy plate.
7050 aerospace special aluminum material.

The Application of 7050 Aluminum Sheet Plate

7050 aluminum plate is used in aerospace industry, blow molding (bottle) mold, ultrasonic plastic welding mold, golf head, shoe mold, paper plastic mold, foam molding mold, dewaxing mold, template, fixture, mechanical equipment, mold processing, used to make high-end aluminum alloy bicycle frames.
