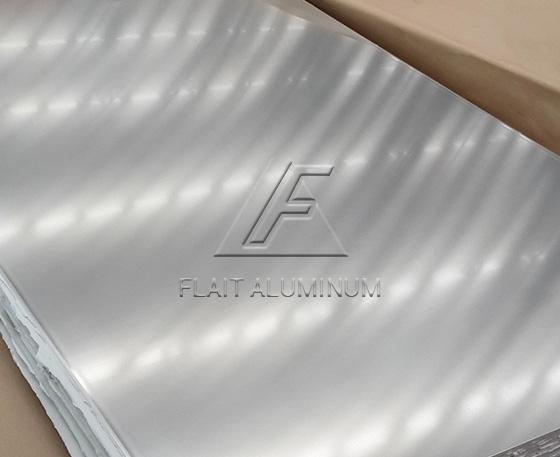

7005 aluminum sheet
7005 aluminum sheet

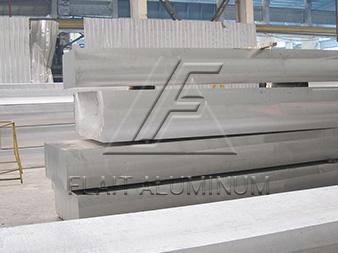

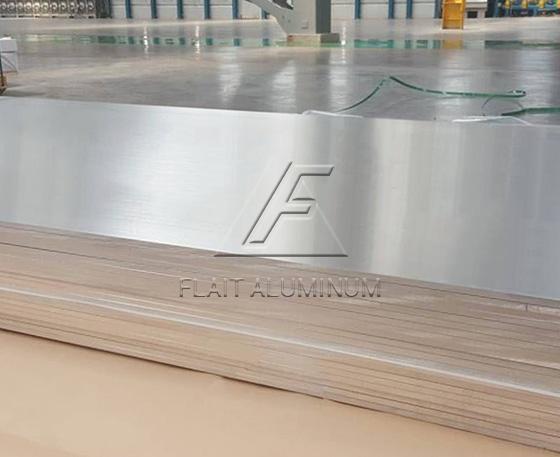

7005 aluminum plate
7005 aluminum plate

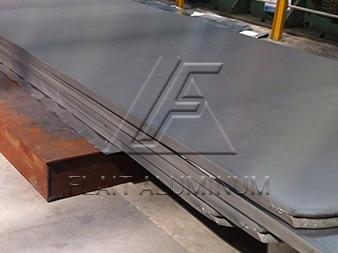

7005 aluminum sheet

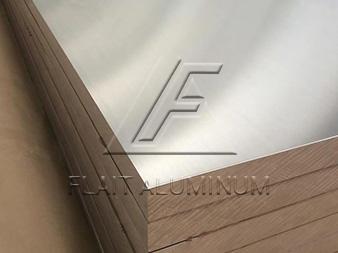

7005 aluminum sheet

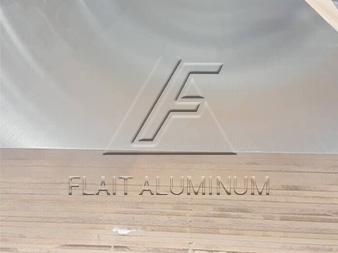

7005 aluminum plate

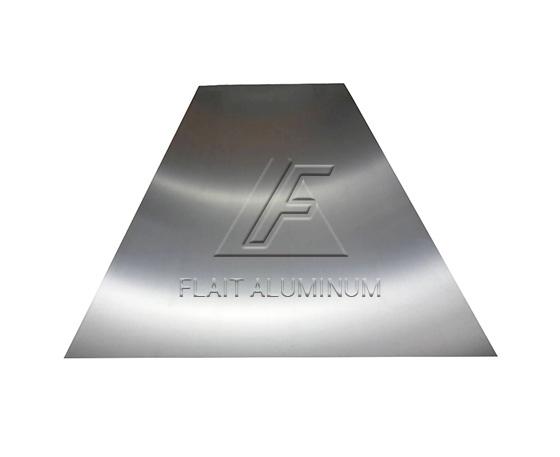

7005 aluminum plate

7005 Aluminum Sheet Plate

  • Alloy:7005 aluminum sheet plate
  • Temper:T6,T651,etc.
  • Width(mm):500-2650
  • Thickness(mm):1.0-600
  • Length(mm): 500-16000

The Introduction of 7005 Aluminum Sheet Plate

7005 Aluminum sheet plate is a super duralumin, with good welding performance and can be strengthened by heat treatment. Its strength is not as good as 6061, but it is much lighter, is a typical lightweight aluminum material. 7005 Aluminum plate has excellent weldability, there are many other aluminum alloys, such as 7075 and 2014 are stronger than 6061 and 7005, but they are almost impossible to weld; it has moderate corrosion resistance, compared with the tempers of T6 and T651, T7351 and T73 have good resistance to stress corrosion cracking. Also, 7005 Aluminum plate has good anodizing reaction, high-strength heat treatment, good mechanical properties, good usability, easy processing, good wear resistance, etc. 7005 aluminum plate is often used in welded structures with high strength and high fracture toughness, such as vehicle trusses, rods, containers; large heat exchangers, and parts that cannot be solidified after welding; it can also be used to manufacture sports equipment such as tennis racket and softball bat.Click to Order

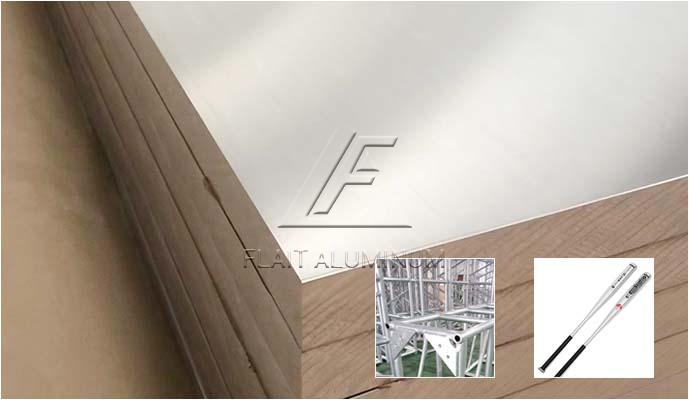

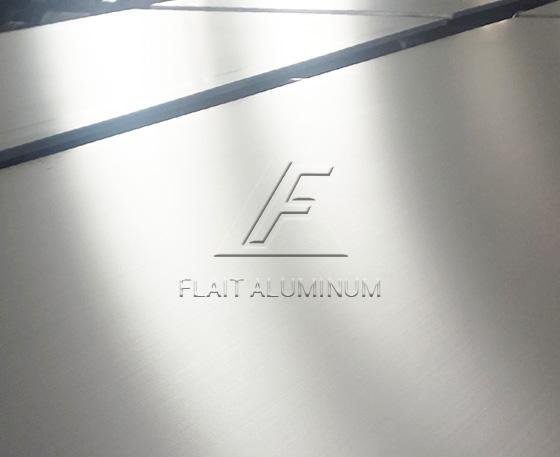

7005 aluminum sheet

The Product Specification of 7005 Aluminum Sheet Plate

Alloy 7005 aluminum sheet plate
Temper F,O,T6,T651,T7451,etc.
Thickness
(mm)
1.0-600
Width
(mm)
500-2650
Length
(mm)
500-16000
Application Large heat exchangers, tennis rackets and softball bats, fixtures, etc.



Chemical composition:

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Zr

Others

AL

7005

0.35

0.40

0.10

0.20-0.70

1.00-1.80

0.06-0.20

4.00-5.00

0.01-0.06

0.08-0.20

Single

Total

Remainder

0.05

0.15



Mechanical properties:

Alloy & Temper

Tensile strength

Rm/Mpa

Yield strength

Rp0.2/Mpa

Elongation

%

Shear Strength

Mpa

7005

200-400

95-350

10-20

84-200

The Product Features of 7005 Aluminum Sheet Plate

  • 7005 aluminum plate has good mechanical properties and anodic reaction, high strength and heat treatment;
  • 7005 aluminum plate has good mechanical properties, easy processing and good wear resistance;
  • 7005 aluminum plate has good usability, after stress relief, it will not be deformed or warped after processing.
  • 7005 aluminum plate is used to manufacture high-stress structures that require high strength and strong corrosion resistance, such as aircraft structures.

The Application of 7005 Aluminum Sheet Plate

7005 aluminum plates are often used in the manufacture of welded structures that require both high strength and high fracture toughness, such as trusses, rods, and containers for transportation vehicles; large heat exchangers, and parts that cannot be solidified after welding; can also be used to manufacture sports equipment such as tennis rackets and softball bats.
