Plain aluminum foil fin stock & Pre-coated aluminum foil fin stock

2024-04-02 11:31:58

Aluminum foil is widely used in air conditioners, heat exchangers, refrigeration equipment and other industries due to its low density, good thermal conductivity, easy processing, odorless, environmentally friendly, and low price. At present, air conditioning aluminum foil can be divided into uncoated/plain aluminum foil, pre-coated aluminum foil, hydrophilic aluminum foil, corrosion-resistant aluminum foil, hydrophobic aluminum foil and self-lubricating aluminum foil. The amount of aluminum foil used in air conditioners varies according to the model and power. Thinner aluminum foil can reduce the amount of aluminum used in the same heat transfer area and reduce the cost of air conditioner radiators. The performance indicators of the 8011, 8006, 3102, and 1100 air-conditioning aluminum foil produced by our company have fully reached the leading level, and the products are exported to all over the world.

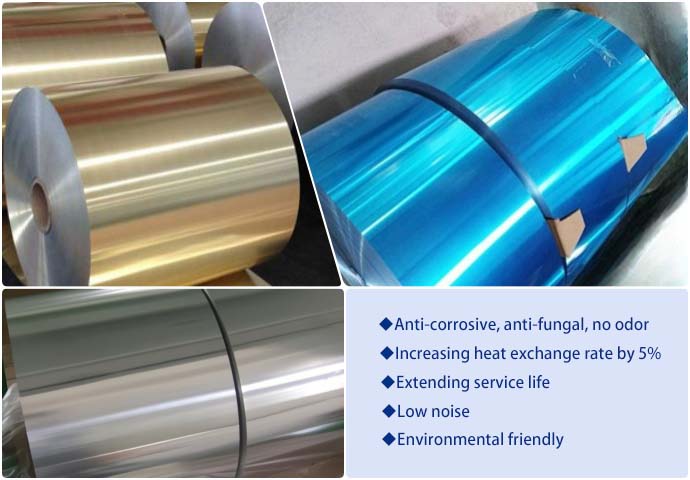

Product: Air conditioner hydrophilic aluminum foil

Alloys: 8011,8006,3102,1100

Tempers: O/HO, H22, H24, H26, H14

Thickness: 0.08mm – 0.20mm

Width: 500mm – 1440mm

Roll ID: φ75, φ150, φ200, φ300, φ400

Roll OD: Customized

Colors: Gold, Blue, Bare/Plain

Anti-corrosion salt spray: 500-3000 hours

Applications: air conditioners, radiators, evaporators, condensers, etc.

Air conditioner hydrophilic aluminum foil

In the air conditioning system, the main function of the heat exchanger is to realize heat exchange between the refrigerant and the air, 8011 and 8006 aluminum foil are one of the key materials of the heat exchanger. As an excellent thermal conductive material, 8011 aluminum foil and 8006 aluminum foil have good thermal conductivity and can quickly transfer the cold and heat of the air conditioning system to the external environment. In addition, 8011 aluminum foil and 8006 aluminum foil are lightweight and have excellent corrosion resistance, making them not easily damaged during long-term use, thereby extending the service life of the air conditioner.

8011 hydrophilic aluminum foil and 8006 hydrophilic aluminum foil are increasingly used in refrigeration equipment, such as air conditioners, refrigeration equipment, radiators, heat exchangers, condensers, evaporators and other fields. The use of 8006 and 8011 aluminum foil in air conditioners is mainly used to make heat-conducting fins for air conditioner heat exchangers. The commonly used tempers are H22/H24/H26, and the thickness range is 0.08~0.2mm.


Original Source:

Tags: 8011 aluminum foil,8006 aluminum foil,3102 aluminum foil,1100 aluminum foil
