8006 8011 Hydrophilic aluminum foil for air conditioner

2023-08-30 09:47:35

8006 and 8011 aluminum foil fins, also known as 8006 and 8011 hydrophilic aluminum foils, are mainly used in the production of heat exchanger fins, such as condensers and evaporators of air conditioner, refrigerator, automotive air-conditioning, etc. Hydrophilic aluminum foil can be surface-coated, usually blue and gold/golden. Because hydrophilic aluminum foil has good thermal conductivity, good coating performance, high coating adhesion, good hydrophilicity, good corrosion resistance, low density and light weight, it is widely used in fins for air conditioner radiators. The aluminum foil for air conditioners is punched and flanged by a punching machine to become a heat dissipation fin; the tube is threaded, expanded, degreased, and assembled to form a heat exchanger.

The iron content of 8006 hydrophilic aluminum foil is higher than 8011 hydrophilic aluminum foil, and the performance is slightly better. 8006 aluminum foil has a higher tensile strength than 8011 aluminum foil, which can reach 125-135; also, the cup convexity and elongation of 8006 aluminum foil are higher than 8011 aluminum foil. The main aluminum foils for air conditioning are: 8006 hydrophilic aluminum foil, 8011 hydrophilic aluminum foil, 3102 hydrophilic aluminum foil, 1100 hydrophilic aluminum foil, etc.

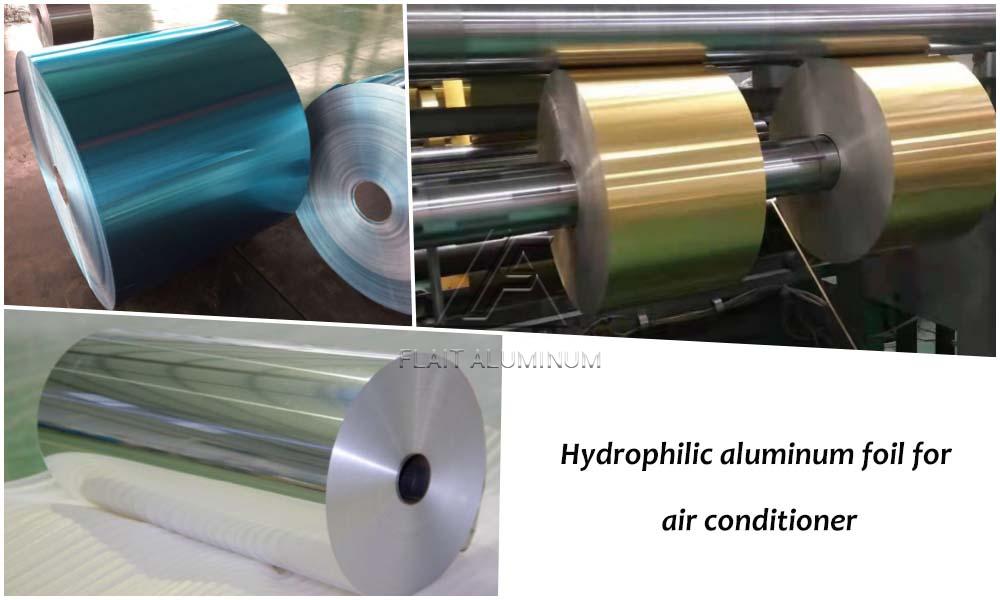

Hydrophilic aluminum foil for air conditioner

Specification of 8006 8011 hydrophilic aluminum foil for air conditioner

Alloy 8006/8011
Temper O/F,H22,H24,H26,H18
ID 76MM, 152MM, 300MM, 400MM, 500MM
OD 300 – 1250mm
Sleeve Material Aluminum, carbon, steel
Thickness (mm) 0.08-0.20mm
Width (mm) 100~1250mm
Surface  Blue/Golden/ Bare (Pure)
Application Air conditioner condenser, heat exchanger and evaporator etc.
Payment 30% deposit + T/T / L/C at sight
Delivery Period 35~55 days after receiving the deposit
Package Wooden pallets, sea-worthy, with fumigation
Standard EN,ASTM,DIN,GB/T-3198
Shipment Port Any port in China


Chemical composition of 8006 8011 hydrophilic aluminum foil for air conditioner
Alloy Si Fe Cu Mn Mg Cr Zn Ti OTHERS Al
8011 0.5-0.9 0.6-1.0 0.1 0.2 0.05 0.05 0.1 0.08 0.05 0.15 Balance
8006 0.4 1.2-2.0 0.3 0.3-1.0 0.1 0.1 0.05 0.15 Balance


Alloy Temper Mechanical Performance under room temperature
Tensile Strength (σb, Mpa)
8011 O 60-110
H22 90-150
H24 120-170
H26 140-190
H18 150
H19 160
8006 O 90-140
