5086 H116/H321 marine grade aluminum plate

2024-04-02 15:07:06

With the diversification of ship uses, technological progress and other factors, the market demand of the shipbuilding industry has increased significantly, and 5086 aluminum plates are favored by the shipbuilding industry because of their high strength and high corrosion resistance. Flait Aluminum supplies 5086 marine grade aluminum plates, our marine aluminum plates have passed CCS, DNV, BV, ABS classification certifications. The product quality is reliable, the production capacity is high, and it can be supplied stably in batches. Among them, 5086 H116/H321 marine grade aluminum plates are widely used in the manufacturing of sides, bottoms, outboards, decks, etc. is well received by customers.

Specification of 5086 H116/H321 marine grade aluminum plate

Alloy-Temper: 5086 H116/H321

Thickness: 3-80mm

Width: 1200-4000mm

Length: Max.27000mm

Tensile strength: 305-385 MPa

Yield strength: ≥215 MPa

Elongation: ≥10%

Anti-flaking corrosion performance: better than PB level

Intergranular corrosion resistance: ≤15mg/cm2

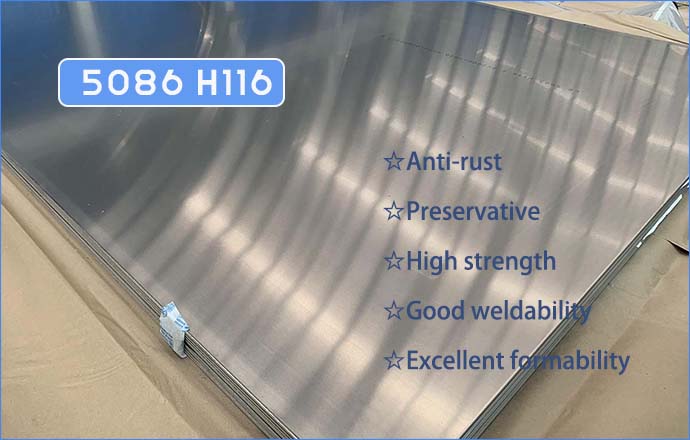

5086 H116 marine grade aluminum plate

Features of 5086 H116/H321 marine grade aluminum plate

The shipbuilding industry has special requirements for the strength, corrosion resistance and weldability of aluminum alloys. 5086 H116/H321 marine grade aluminum plate is an aluminum-magnesium alloy with a magnesium content between 3.5% and 4.5%. It is not only rust-resistant and corrosion-resistant, but also has high strength, excellent weldability and formability, and is non-low temperature brittle and non-magnetic.

Mechanical properties of 5086 H116/H321 marine grade aluminum plate

5086 H116/H321 marine grade aluminum plate has a large elastic modulus, which means higher strength and hardness, so it is especially suitable for use on the bottom of ships to withstand impacts. Its excellent mechanical properties allow it to withstand high-intensity bending without breaking. Compared with 5052 aluminum plate, the mechanical properties of 5086 marine grade aluminum plate in all categories are higher than that of 5052 aluminum plate. It is a high standard alloy aluminum plate.

Temper Specified thickness(mm) Rm MPa Rp0.2 MPa Elongation min.% Bend radius Hardness HBW
over up to Min. Max. Min. Max. A50mm A 180° 90°
H116/H321 1.5 3 275 195 8 2.0t 2.0t 81
3 6 275 195 9 2.5t 81
6 12.5 275 195 10 3.5t 81
12.5 50 275 195 9 81
