Uses and advantages of 1060 3003 5052 aluminum strips

2024-04-17 16:42:59

1060 3003 5052 aluminum strips are usually used in transformers, cables, optical cables, armored cables, etc. have the advantages of small density, high conductivity, excellent performance, and low price:

1. 1060 aluminum strip

1060 aluminum strip is used in situations that require high corrosion resistance and formability, but do not require high strength. This type of aluminum strip is a commonly used series, the production process is relatively simple, and the technology is relatively mature. 1060 aluminum strips are commonly used in chemical products, food industry equipment, storage containers, thin plate processing parts, deep drawn or spun concave vessels, welded parts, heat exchangers, printing plates, nameplates, and reflective equipment.

2. 3003 aluminum strip

3003 aluminum strip is a commonly used product with excellent anti-rust properties and is also called anti-rust aluminum strip. 3003 aluminum strips are often used in humid environments such as outer packaging, mechanical parts, refrigerators, air conditioning and ventilation ducts.

3. 5052 aluminum strip

The main alloy element of 5052 aluminum strip is magnesium. It has good formability, corrosion resistance, weldability, and medium strength. It is used to manufacture aircraft fuel tanks, oil pipes, and sheet metal parts of transportation vehicles and ships, instruments, street lamp brackets and rivets, hardware products, electrical casings, etc.

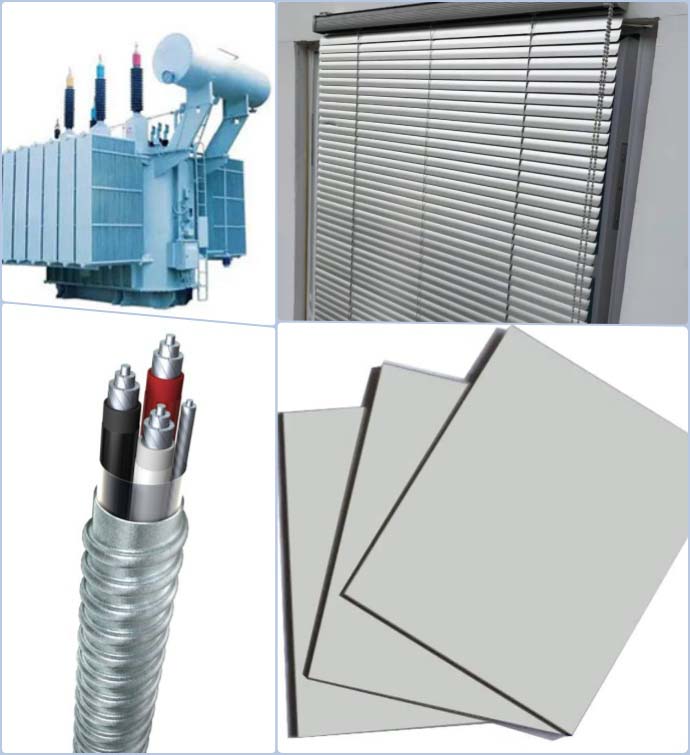

Uses of 1060 3003 5052 aluminum strips

Common specifications of 1060 3003 5052 aluminum strips
Product Specification (mm) Application
1060-O/HO aluminum strip 0.5*100/120/70 Transformers, cables, stampings, bottle caps, etc.
1060-H18 aluminum strip 0.8*800/700 Dinner plates, signs, etc.
1060-H24 aluminum strip 1.0*145/100 Signs, pallets, etc.
3003-H18 aluminum strip 0.4*870/500 Signs, nameplates, etc.
3003-H24 aluminum strip 0.5*100 Stamping, stretching, etc.
3003-O/HO aluminum strip 0.8*200 Pots, kitchen utensils, etc.
5052-H24 aluminum strip 1.9*120/340/290 Equipment, pots, rice cooker liner, etc.


1. 1060 transformer aluminum strip

There are great advantages and many uses for the use of transformer aluminum strips. Because a conventional “dry-type transformer aluminum strip” can be replaced by aluminum strip, which can not only achieve the advantages of aluminum strip, but also make the transformer aluminum strip product itself have the advantage of low density.

2. 1060 cable aluminum strip

Cable aluminum strips mainly use 1060 aluminum strips, which are divided into 3mm thick aluminum strips. After repeated processing and winding processing through equipment, the advantages are small density and light weight.

3. Blinds aluminum strip

The thickness of aluminum strips used in offices, decorations, exhibitions, etc. is usually 0.3mm. Aluminum strips for blinds have the advantages of excellent performance, easy processing, and recyclability.

4. Aluminum-plastic composite panel

The advantages of aluminum-plastic composite panels and copper-aluminum composite panels are that aluminum has low density, is light, is easy to process, and has a soft texture, making it the best choice for composite products.

Uses of 1060 3003 5052 aluminum strips

Processing process of 1060 3003 5052 aluminum strips

Under normal circumstances, from “aluminum ingot” to “aluminum strip”, it generally needs to go through three major steps, which are the three steps of process processing: casting and rolling billet, finished aluminum coil, and aluminum strip slitting.

Aluminum strips are processed from aluminum coils through slitting and slitting equipment. Usually we use aluminum coils with a width of 1000-1500 mm as the base material, and process them through one or more passes of slitting and slitting. The production of aluminum strips Usually there are several processes such as material selection, knife arrangement, slitting on the machine, winding, and packaging.

Generally, the appropriate aluminum coil is selected as the base material according to the material, thickness and width required by the customer. At the same time, a 5 mm edge wire needs to be reserved after determining the appropriate width. Rewinding and slitting are performed at the same time. The aluminum strip needs to select the appropriate sleeve diameter according to the inner and outer diameter requirements of the user’s order.

1060 3003 5052 aluminum strip production equipment

The aluminum strip slitting machine consists of an unwinding mechanism, a cutting mechanism, a rewinding mechanism, each functional roller, and a tension control, correction, and detection device. The working principle of the aluminum strip slitting machine is: the metallized film raw material released from the unwinding mechanism passes through the flattening roller, tension detection roller, empowering roller, correction system, and enters the cutting mechanism. After the raw material is slit, it is sent by the winding mechanism Roll them up into standard aluminum strips respectively.

Prices of 1060 3003 5052 aluminum strips

Price calculation method: SMM A00 aluminum ingot price + processing fee + freight = aluminum strip price

Weight of aluminum strip/coil (kg) = 3.14*(R2-r2) * H * density

Weight of aluminum plate (kg) = density × thickness × width × length
