Home > News & Blog > News > 4343/3003/7072 Aluminum brazing sheet coil strip for radiator fin

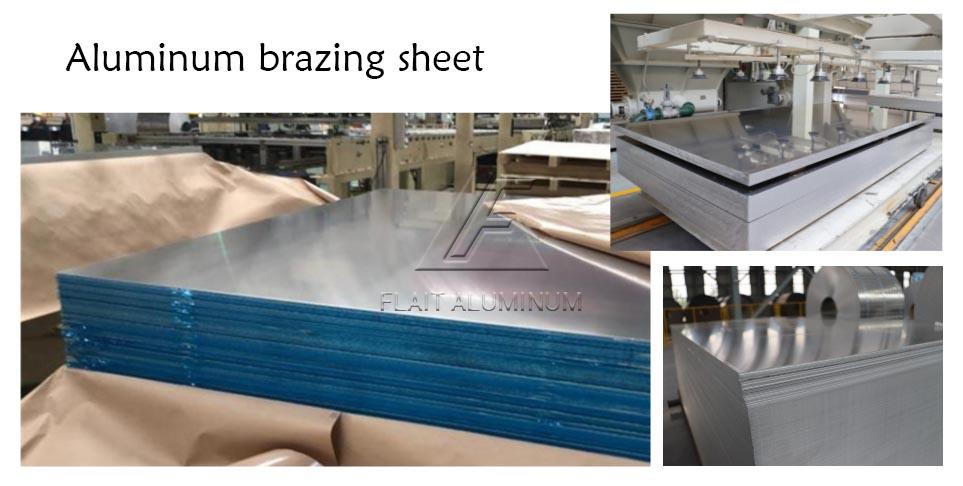

Aluminum brazing sheet coil strip is a sheet composed of multiple layers of material, usually including metal layers of different alloys, which are bonded together by brazing technology, so that the advantages of different alloys can be fully utilized while meeting the requirements of high thermal conductivity and Corrosion resistance requirements. Due to this characteristic, it is often used in automobiles, construction machinery, power stations and household commercial air conditioning heat exchange systems and other applications that require high heat transfer and corrosion resistance.
4343/3003/7072 aluminum brazing plates are a typical application in brazed composite materials, often used as radiator fins. Radiators are generally composed of heat pipes, fins, side plates and motherboards. The fins are evenly arranged in sequence. This structure allows different types of metal layers to have different characteristics, such as high thermal conductivity and corrosion resistance, to adapt to specific working conditions. Among them, 3003 aluminum is used as the core material, 4343 aluminum is used as brazing clad for CAB, and 7072 aluminum is used as the contact-water clad.
| Specification of Brazing Aluminum Sheet Coil Strip | ||||
| Alloy | Temper | Thickness (mm) | Width (mm) | Length (mm) |
| Core 3003 3003+Zn 3003MOD | O,H12,H14,H16,H18,H22,H24,H26 | 0.5~5.0mm | 500-1200mm | C |
| Brazing clad for CAB 4343 4045 4047 | ||||
| Contact-water clad 7072 | ||||
| Clad Rate | 4-18% per side, or customer requested | |||
| Packing | Export standard package | |||
| Normal Alloys Plates | 4045/3003, 4343/3003, 4045/3003/4045, 4343/3003/4343, 4343/3003/7072 and etc. | |||
| Performance index of radiator fin material | |||||||
| Alloy | Temper | Thickness(mm) | Tolerance(mm) | Clad rate(%) | Mechanical property | ||
| Tensile Strength (MPa) | Yield Strength(MPa) | Elongation Min.(%) | |||||
| 3003 | H14 | 0.06-0.10 | ±0.005 | None | 150~200 | ≥120 | 1 |
| 4343/3003/4343 | H14 | 0.06-0.10 | ±0.005 | 8-12 | 150~200 | ≥120 | 1 |
| Performance index of radiator board material | |||||||
| Alloy | Temper | Thickness(mm) | Tolerance(mm) | Clad rate(%) | Mechanical property | ||
| Tensile Strength (MPa) | Yield Strength(MPa) | Elongation Min.(%) | |||||
| 4343/3003 | O | 1.2-3.0 | ±0.03 | 5-10 | 100~150 | ≥45 | 25 |
| 4343/3003/7072 | O | 1.2-3.0 | ±0.03 | 5-10 | 100~150 | ≥45 | 25 |
| 4343 can be replaced by 4045/4047etc, according to customer’s requirement. | |||||||
| Alloy、specification and mechanical property can be customized according to different requirement. | |||||||
Brazed aluminum plate has good heat resistance and high temperature resistance, and has certain corrosion resistance;Excellent collapse resistance during brazing；Brazed aluminum coils have good mechanical properties and surface conditionsBrazed aluminum plate has high strength, excellent welding performance, and perfect strength after brazing.Flait Aluminum provides various specifications for fin and brazing aluminum plate coil strip.
Original Source:https://www.flait-aluminum.com/Brazing-aluminum-sheet-coil-strip.html
