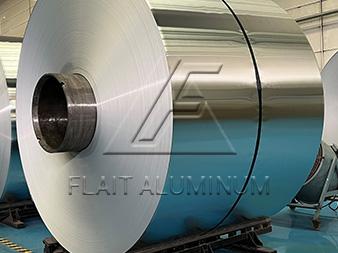

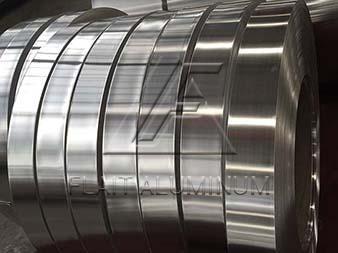

Transformer Aluminum Strip

  • Alloys:1050,1060,1070,1350
  • Temper:O/HO
  • Width(mm):10-1500
  • Thickness(mm):0.08-3.00



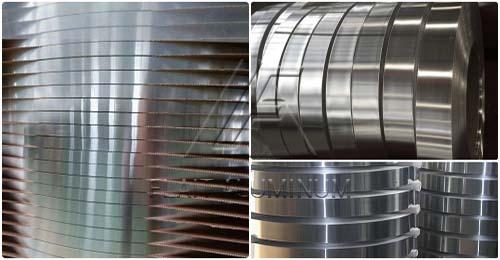

Transformer Aluminum Strip

Introduction of Transformer Aluminum Strip

The aluminum content of transformer aluminum foil strip is high (usually 99.6%-99.7%). The electrical and thermal conductivity of aluminum is only lower than conventional metals such as copper. Since the price of copper is much higher than aluminum, aluminum strip is currently the most commonly used and ideal transformer material. Transformer aluminum strips are mainly used in high and low voltage windings of dry-type transformers as conductive materials. 1050/1060/1070/1350 Transformer aluminum strips foils are the key raw material for manufacturing transformer winding because it has high electrical conductivity, soft quality, smooth surface and no burrs. The transformer aluminum-aluminum strip produced by our company is mainly used in large-scale transformers, solar energy, and electric power industries.

Transformer aluminum foil strip generally uses 1050-O/HO aluminum strip foil, 1060-O/HO aluminum strip foil, 1070-O/HO aluminum strip foil, 1350-O/HO aluminum strip foil, thickness 0.20-3.00mm. Transformer aluminum foil strip has high plasticity, corrosion resistance, electrical conductivity, thermal conductivity, and is easy to withstand various pressure processing, extension and bending, which can significantly improve the heat dissipation performance of transformers.

Flait Aluminum is a professional manufacturer of aluminum strips for transformers. We have multiple aluminum strip slitting production lines, and can customize the width and length of aluminum strips according to customer requirements. Our transformer aluminum strip foil has a smooth surface without scratches, and the edge chamfer can reach 100% without burrs, resistivity and conductivity are better than the national and industry standards for transformers.

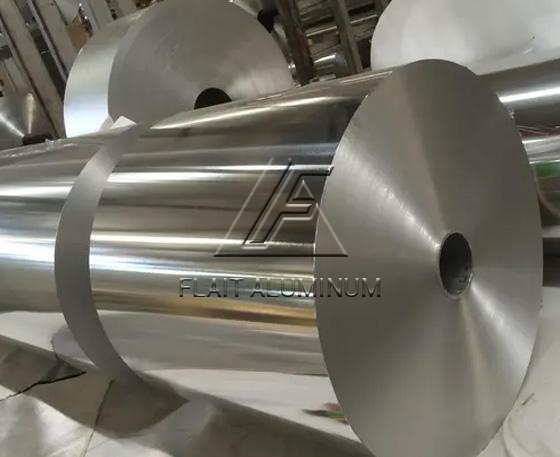

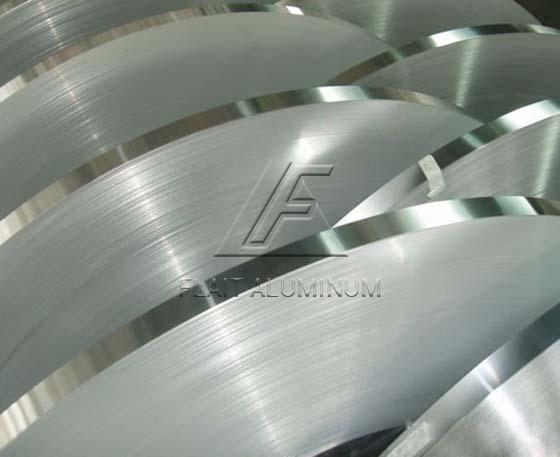

  • aluminum foil for transformer

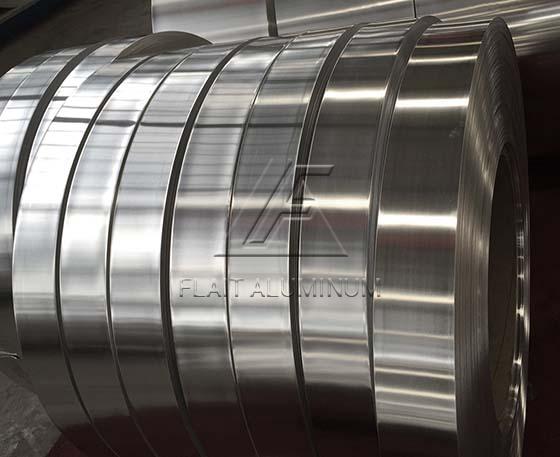

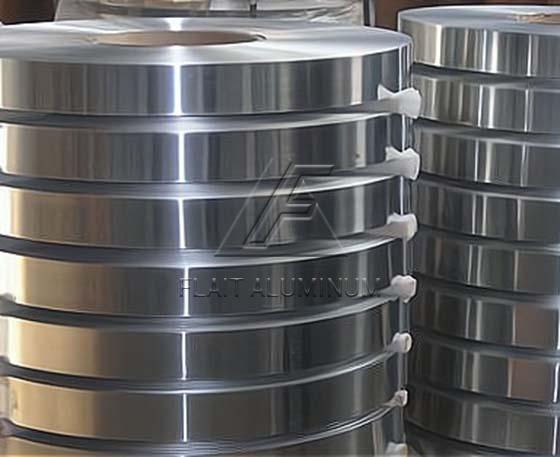

  • aluminum foil for transformer

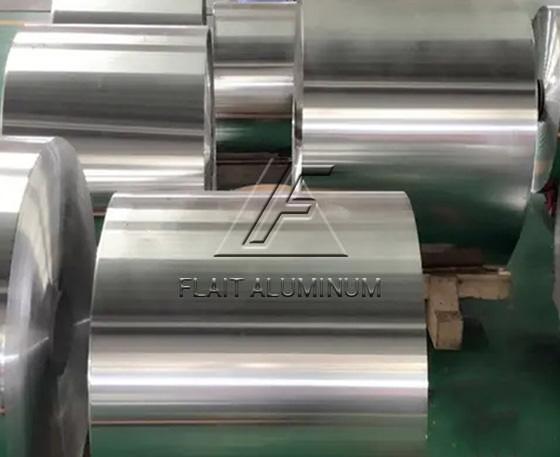

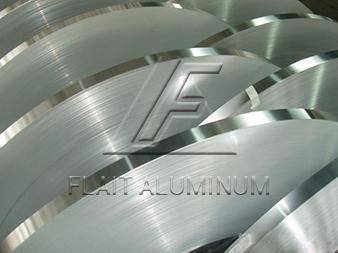

  • aluminum foil for transformer

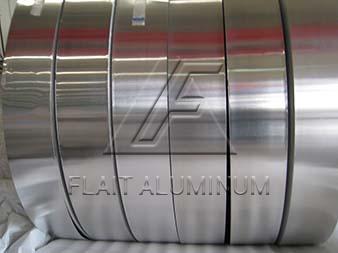

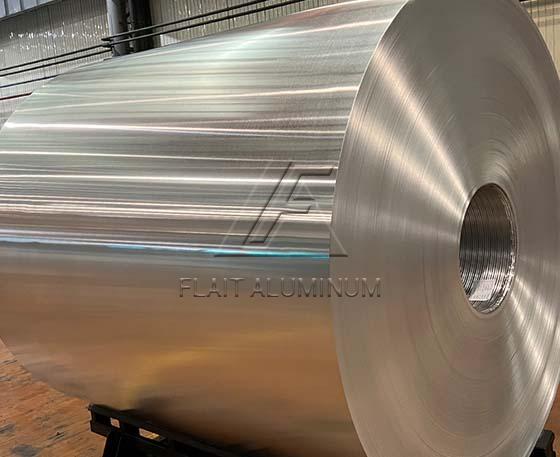

  • aluminum foil for transformer

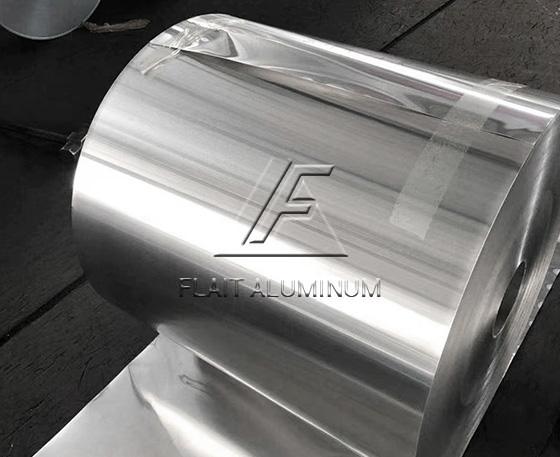

Specification of Transformer Aluminum Foil Strip



Alloy

1050,1060,1070,1350

Temper

O/HO

Thickness (mm)

0.08-3.00

Width (mm)

10-1500

Conductivity (% IACS)

1050-O ≥ 60% IACS

1060-O ≥ 61.5% IACS

1070-O ≥ 62.7% IACS

1350-O ≥ 62% IACS

Elongation (%)

≥20 (Thickness: 0.08-0.20)

≥25 (Thickness: 0.20-3.00)

U. T. S

60-95N/mm2

Density in 20℃

2.703kg/m3

Max. resistance in 20℃ (Ω·mm² /m)

≤0.02825

Burr's height

0.01--0.03mm vary with thickness of the strip

Collapsed side's height

0.05-0.1mm

ID

Ø 150mm,Ø300mm, Ø400mm, Ø500mm

Surface

Smooth, free from scratches and impurities

Application

Transformer winding

Packing

Eye to wall and eye to sky, wooden pallet and wooden case

Sample

Available

Remark

Transformer aluminum strip can be customized



Chemical Composition of Transformer Aluminum Strip



Alloy

Al (%)

Si (%)

Fe (%)

Cu (%)

Mn (%)

Zn (%)

Mg (%)

Ti (%)

V

1050

99.50

0.0431

0.203

0.0022

0.0104

0.0093

0.0013

0.02

0.0039

1060

99.60

0.0431

0.203

0.0022

0.0104

0.0093

0.0013

0.02

0.0039

1070

99.70

0.0431

0.203

0.0022

0.0104

0.0093

0.0013

0.02

0.0039

1350

99.50

0.0431

0.203

0.0022

0.0104

0.0093

0.0013

0.02

0.0039



Edge Deburring Range of Transformer Aluminum Strip



Thickness (mm)

≤0.20

>0.20

Burr

≤0.03

≤0.05

Camber

≤0.5

≤2

Layering

≤4

≤5



Tolerance Range of Transformer Aluminum Strip



Alloys

1050-O/1060-O/1070-O/1350-O

Thickness (mm)

0.08-0.20

0.20-0.40

0.40-0.80

0.80-1.10

1.10-1.40

1.40-2.00

2.00-2.50

2.50-3.00

Thickness Tolerance (mm)

±8% of nominal thickness

±0.02

±0.03

±0.04

±0.05

±0.06

±0.07

±0.08

Width (mm)

<100

100-300

300-600

600-1250

1250-1500

Width Tolerance (mm)

±0.10

±0.20

±0.30

±1.00

±2.00

Advantages of Transformer Aluminum Strip

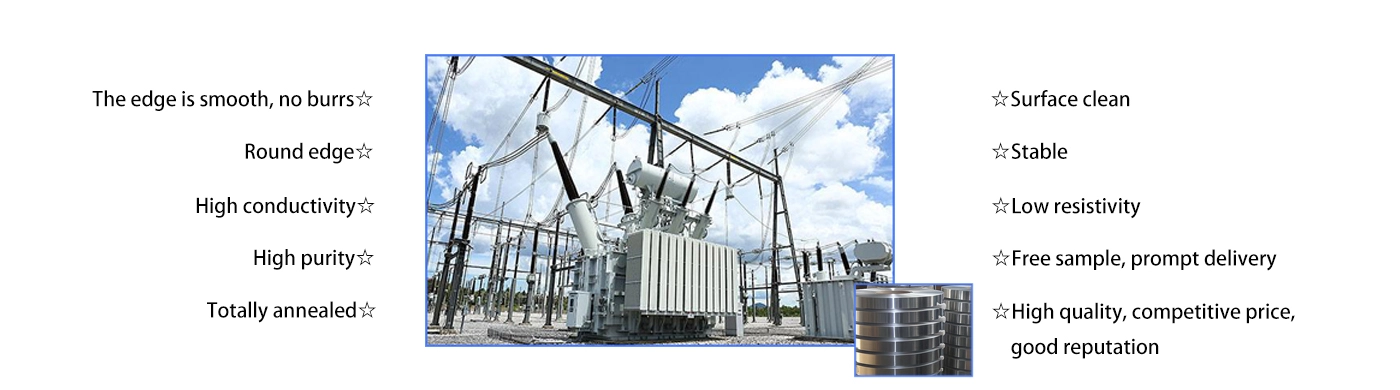

Advantages of transformer Aluminum Strip coil

Manufacturing process of Transformer Aluminum Foil Strip

  • 1.The aluminum raw material is heated in the furnace to remove impurities;
  • 2.The ingot is cut into thick plates;
  • 3.Put the thick plate into the cold rolling mill for rough rolling;
  • 4.Put into hot rolling mill for finishing;
  • 5.Annealing by heating and keeping at a certain temperature;
  • 6.External cutting by slitter;
  • 7.Packaging and Shipping.

Application of Transformer Aluminum Strip

1050 1060 1070 1350 Aluminum foil strip for transformer is used for variable transformer like low or high voltage transformer winding, high frequency transformer, step up or down voltage transformer, etc.

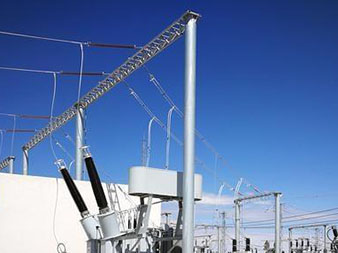

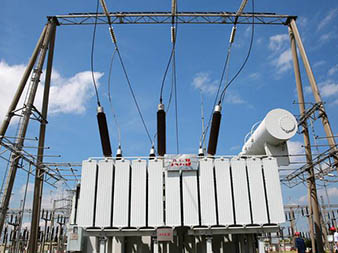

  • application of transformer aluminum strip

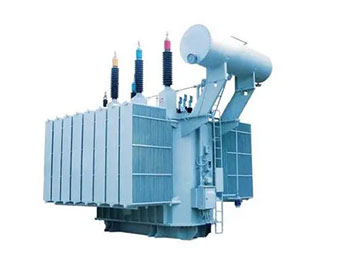

  • application of transformer aluminum strip

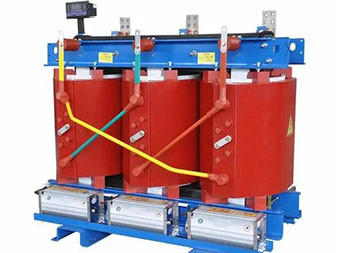

  • application of transformer aluminum strip
  • application of transformer aluminum strip
