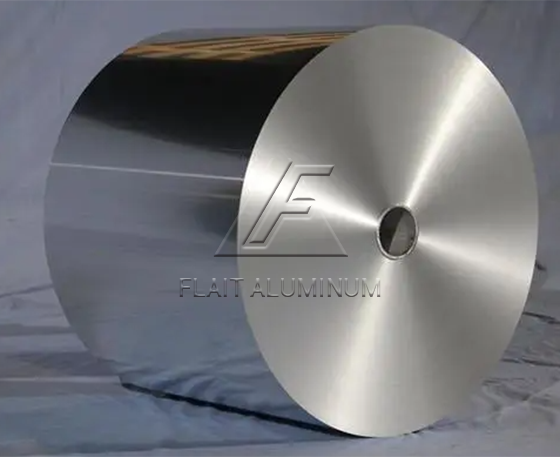

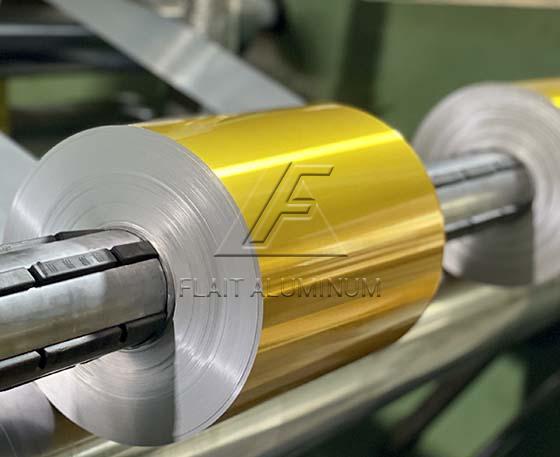

Heat Sealing Aluminum Foil

Alloys: 8011,8079,1235
Tempers: O/HO
Width(mm): 100-1600
Thickness(mm): 0.07-0.10
Length(mm): C

Quick Quote Get A Quote

Introduction of Hot Sealing Aluminum Foil

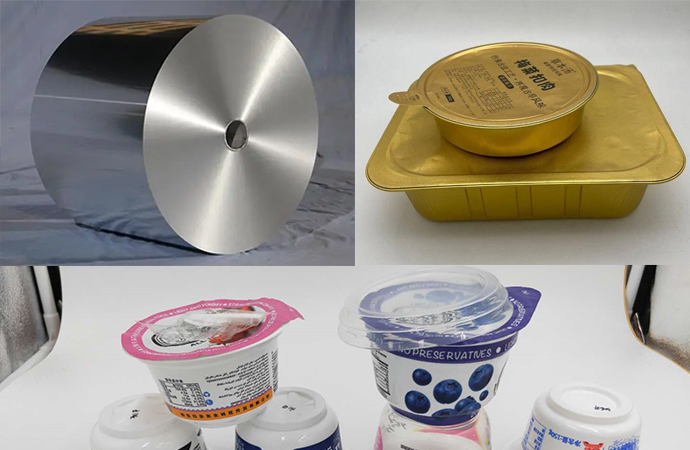

Heat sealing aluminum foil is used for packaging dairy products such as fresh milk and yogurt after printing or painting. Heat sealing aluminum foil has excellent sealing performance and corrosion resistance, can protect the products inside from external moisture, oxygen, dust and bacteria, extending the shelf life and freshness of the product. Flait Aluminum produces heat sealing aluminum foil under a professional production system, and its chemical composition and mechanical properties are guaranteed. The mainly heat sealing foils are 8011 aluminum foil and 8079 aluminum foil.

Specification of Hot Sealing Aluminum Foil

Alloy	8011, 8079, 1235
Temper	O/HO
Thickness (mm)	0.07-0.10 (30-60mic, commonly used 38mic)
Width (mm)	100-1600
Length (mm)	C
Coil ID	76mm, 152mm
Surface	One side bright, one side matt, or both sides bright
Packaging	Plastic film＋free fumigation wooden box＋plastic tape
Certification	SGS/ISO/CFDA
Application	Food contact lids for packing containers such as yogurt, milk, cheese, ice cream, water, juice, beverage, coffee, tea, food, noodles, cosmetic, seasoning ,K-cup , coffee capsule etc.
Lid structure	AL+ Heat sealing lacquer for PS/PP/PE/PET/Paper cups; AL+Heat sealing film (easy to peel off) for PS/PP/PE/PET/Paper cups; AL+Heat sealing film (uneasy to peel off) for PP/PE/PET/Paper cups; PET+Lacquer for PS/PP/PE/PET/Paper cups; PET+AL+film/lacquer for PS/PP/PE/PET/Paper cups;




Heat sealing temperature	180℃-250℃, depend on the material of the cup and the environment

Chemical Composition (%)
Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Al
8011	0.50-0.90	0.60-1.00	0.1	0.2	0.05	0.05	0.1	0.08	Remainder
8079	0.50-0.90	0.70-1.30	0.05	0.05	0.05	-	0.1	-	Remainder
1235	0.65		0.05	0.05	0.05	-	0.1	0.06	99

Mechanical Properties
Alloy	Temper	Tensile strength Rm/MPa	Elongation A50mm（%）≥	Elongation A100mm（%）≥
8011 & 8079	O	50-120	13-15	0.5-4
	H22	90-150	5-6	1.0-2.0
	H24	120-170	2-5	-
	H26	140-190	1-2	-
1235	H14 H24	110-160	4-6	2-3
1235	H16 H26	125-180	2	1

Surface quality of Hot Sealing Aluminum Foil

The surface of the heat sealing foil has no oil stickiness, blistering, yellow oil spots and tearing after annealing
There are no bright spots, plaques, grinding wheel marks and black lines on the surface of heat sealing foil.
The surface of the heat sealing foil is clean, without cracks, wrinkles, scratches, rubber roller printing, twill, etc.
The surface of the finished heat sealing foil is flat.

Application of Hot Sealing Aluminum Foil

Aluminum foil for heat sealing lids are widely used in yogurt cup caps, instant noodle barrels, heat sealing food bags, medicinal heat sealing films, plastic beverage bottle piercing caps, and other fields.
