5052 H32 aluminum plate for fuel tank

2023-08-30 10:24:35

The automobile manufacturing industry mostly uses 5052 aluminum plates to make fuel tanks. The Mg content of 5052 aluminum plate is 2.2%-2.8%, which makes it have higher strength and corrosion resistance, and is also a significant sign different from 3003 aluminum plate. Many world-renowned automakers have completely adopted aluminum alloy fuel tanks. Compared with traditional steel fuel tanks, it is lighter in weight, only 40% of the same volume of steel fuel tanks. It does not require paint, and the production process is environmentally friendly and has a long service life.

The 5052 H32 aluminum plate is a popular product. It has high strength, good fatigue resistance, good cold workability, excellent polishing effect, and excellent corrosion resistance. It is widely used in transport vehicles, trailers, marine diesel tanks, truck air brake tanks, gasoline or lubricating oil pipes, etc.

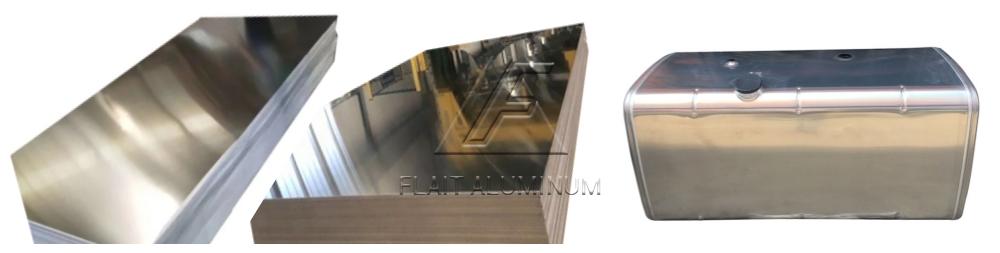

5052 H32 aluminum plate for fuel tank

Product specifications

Alloy Temper Thickness(mm) Width(mm) Length (mm) Standard
5052 O, H32, H26, H34 0.30 – 3.50 1200 – 2650 500 – 12000 GB/EN/ASTM


Chemical composition

Alloy Si Fe Cu Mn Mg Cr Zn Ti Al
5052 0.25 0.4 0.1 0.1 2.20-2.80 0.15-0.35 0.1 Remainder


Mechanical properties

Alloy Temper Tensile strength Rm(Mpa) Yield strength Rp0.2(MPa) Elongation A(%)
5052 H32 210-260 130 5-12


Advantages of 5052 H32 aluminum plate for fuel tank

  • Good strength, good fatigue resistance
  • Excellent corrosion resistance, not easy to generate impurities
  • Light weight, in line with vehicle lightweight requirements
  • Good surface treatment, simple and beautiful appearance
  • Environmental protection and energy saving, recyclable

Application of 5052 H32 aluminum plate for fuel tank

5052 aluminum plate is the star product of Flait Aluminum. The product has high market recognition, skilled processing technology, stable product performance, good forming processing performance, corrosion resistance, weldability and fatigue resistance. It is a kind of anti-rust aluminum widely used in automobile manufacturing, such as automobile engine outer panel, passenger car trunk board, passenger car anti-skid plate, automobile fuel tank, vehicle decoration, etc. It is also used as trolley case, tank material, Door panels, instruments, street lamp brackets, rear-projection TVs and other electrical enclosures, etc.
