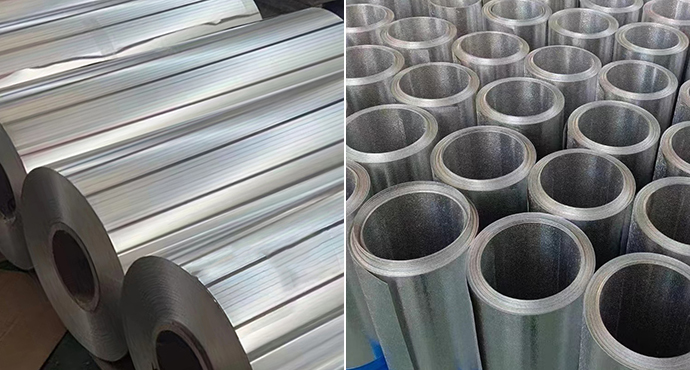

Types of Aluminum Jacketing for Pipe Insulation

There are 3 types of jacketing insulation aluminum rolls we commonly use: 1 series pure aluminum rolls, 3 series aluminum-manganese alloy aluminum rolls and 5 series aluminum-magnesium alloy aluminum rolls. These three types of aluminum jacketing rolls are widely used in thermal insulation, anti-corrosion and anti-rust projects of buildings, equipment, walls, pipes, etc. Flait Aluminum can produce 1060 aluminum jacketing insulation roll, 3003 aluminum jacketing insulation roll, 5052 aluminum jacketing insulation roll, and so on. Aluminum jacketing insulation roll have beautiful appearance and smooth appearance, can be well adapted to the use of pipe insulation packaging. If you have special needs or need customized production, please contact us for consultation.

Click to Order

1 series: 1060 jacketing insulation aluminum roll

Series 1 aluminum coils are relatively cheap and have a wide range of applications. They are often used in ordinary building waterproofing, municipal pipeline insulation and anti-rust projects, etc. However, Series 1 aluminum coils are not resistant to acid and alkali corrosion, are unable to insulate equipment and pipelines in power plants and chemical plants. 1060 jacketing insulation aluminum roll is the most commonly used product for ordinary thermal insulation aluminum coils: the aluminum content is greater than or equal to 99.6%, the tensile strength is 50-80MPa, and the elongation is 30-50%.

3 series: 3003 jacketing insulation aluminum roll

The price of series 3 aluminum coil is slightly higher than that of series 1 aluminum coil. It is a commonly used anti-rust and thermal insulation aluminum coil. The strength of series 3 aluminum coils is slightly higher than that of series 1 aluminum coils, and it has better resistance to acid and alkali corrosion. It is mostly used for insulation of refrigeration equipment, storage tanks, pressure vessels, pipes, heat sinks, etc. 3003 jacketing insulation aluminum roll is also called anti-rust aluminum jacketing. Due to the addition of manganese element, the anti-rust and anti-corrosion effect of manganese element is better. The corrosion resistance of 3003 aluminum jacketing is better than that of 1060 aluminum jacketing.

5 series: 5052 jacketing insulation aluminum roll

The price of 5 series aluminum coils is the highest, and its performance is also the best among the three categories. 5 series aluminum coils have high strength, good plasticity and corrosion resistance, high fatigue resistance and good weldability. 5 series aluminum coils are used in situations that have strict requirements on the performance of aluminum coils, such as height, fatigue resistance, corrosion resistance, etc. They are widely used in the fields of maritime, chemical industry, nuclear power, aviation, and aerospace. 5052 jacketing insulation aluminum roll is an AL-Mg series alloy aluminum plate. Magnesium is the main alloy element in the 5052 alloy aluminum coil. 5052 alloy is a widely used anti-rust jacketing insulation aluminum roll.

What Kind of Aluminum Jacketing is Better for Pipe Insulation?

The main thing is to choose the appropriate thermal insulation aluminum jacketing according to the use environment: 1060 aluminum jacketing is mainly used for the insulation of power plant pipelines, because the insulation of power plant pipelines is relatively less corrosive, and it is relatively low cost. 3003 aluminum jacketing is mainly used in relatively corrosive industries such as chemical plants, because 3003 thermal insulation aluminum coil is relatively good in terms of corrosiveness. 5052 aluminum jacketing roll is used in maritime, chemical and other industries that have strict requirements on aluminum coil performance such as strength, fatigue resistance, corrosion resistance, etc.
