7 commonly used aluminum tread checkered plates coils

2024-01-10 10:35:32

Aluminum tread checkered plate coil is made of aluminum plate through external mechanical processing. It is rolled with a roller press on the basis of aluminum flat plate, protruding pattern is formed on the surface of the aluminum flat plate. Common patterns of aluminum tread checkered plate coil include one bar, two bars, three bars, five bars, orange peel embossed aluminum plates, etc. Patterned aluminum plates are divided into pure aluminum patterned plates and aluminum alloy patterned plates. Pure aluminum pattern plates mainly include: 1050, 1060, 1100. Alloy pattern plates mainly include: 3003, 3105, 5052, 5083, 5754, 6061, 5086, etc. The most commonly used aluminum tread plates materials are: 1100, 1050, 1060, 3003, 5052, 5083, 6061. Aluminum tread checkered plates are mainly used for anti-skid applications, such as bus floors, truck pedals, ship decks, cold storage floors, refrigerated truck floors, and kitchen decoration. Series 1 patterned aluminum plate has low strength and can be used for the floor of buses. Series 3 patterned aluminum plates are rust-proof aluminum plates that can be used on cold storage floors. The 5 series patterned aluminum plate is an aluminum-magnesium alloy plate, which is mainly used in ships, yachts, etc. that are resistant to seawater corrosion. Click to Order

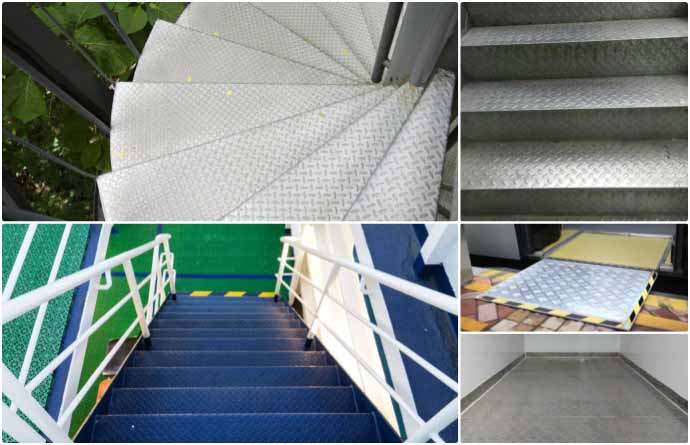

application of aluminum tread checkered plates coils

7 commonly used aluminum tread checkered plates coils

1. Five-bar tread aluminum plate: Five-bar anti-slip aluminum plate, also known as willow leaf pattern aluminum plate, has excellent anti-skid ability and is the most widely used checkered aluminum plate. It is widely used in construction (floor) platform design and other places, such as: cold storage, Touch belts for cars, buses, high-speed trains, etc. Because the pattern on the surface of the aluminum plate is arranged according to five convex and concave patterns in relatively parallel planes, and each pattern has a 60-80 degree intersection angle with other patterns, this pattern has excellent anti-skid properties. According to the length of the pattern, the five-bars pattern aluminum plate can be divided into large five-bar pattern aluminum plate and small five-bar pattern aluminum plate. Their pattern lengths are 42mm and 34mm.

2. Pointer tread aluminum plate: also known as anti-skid aluminum plate, diamond aluminum checkered plate. It has the same excellent anti-skid effect as the five-bar pattern aluminum plate. It is mainly used for anti-skid carriages, service platforms, anti-skid freezer floors, anti-skid production workshop floors, and elevators.

3. Spherical checkered aluminum plate: also be called hemispherical pattern aluminum plate. The surface shows small spherical patterns, just like small pearls, so this aluminum plate can also become a pearl-shaped aluminum plate. Spherical pattern aluminum plates are mainly used in outer packaging. The appearance is quite beautiful. Due to the special pattern, the strength of this aluminum plate is much higher than other pattern series.

4. Orange peel pattern aluminum plate: This type of pattern aluminum plate can be divided into: classic orange peel pattern aluminum plate, variant orange peel pattern aluminum plate (also called insect pattern aluminum plate). Its surface shows a pattern similar to orange peel, which are mainly used for refrigerators, air conditioners and packaging.

5. Lentil tread pattern aluminum plate: also known as Dutch pea pattern aluminum plate, it is a common style of anti-skid aluminum plate. It has excellent anti-skid effect and is mainly used for anti-skid of carriages, floors, freezer floors, production workshops, and elevator cars, etc.

6. Diamond aluminum checkered plate: is embossed and has a diamond-shaped concave and convex pattern on the surface. Prismatic texture is also divided into large prisms and small prisms. Mainly used in architectural decoration, automobile manufacturing, electronic products and other fields.

7. Other unusual pattern aluminum plates: corrugated pattern material, water corrugated aluminum pattern plate, corrugated pattern aluminum plate (can also become aluminum tile), rattan pattern aluminum plate, three-dimensional triangular aluminum pattern plate, strip pattern aluminum plate, Pebble aluminum pattern plate, triangular strip pattern aluminum plate, diamond pattern aluminum plate, butterfly pattern aluminum plate, etc.

aluminum tread checkered plates

Original Source:https://www.flait-aluminum.com/Aluminum-Tread-Checkered-Plate-Sheet.html

Tags:5 bar aluminum checker plate sheet,aluminum diamond tread plate
