6061 precision ground aluminum plate for precision mold

2023-08-16 16:36:32

Mold is one of the important tools for industrial production. There are many types of molds and materials. Among them, aluminum molds are very popular among enterprises because of their high precision, long service life, easy processing, and multiple recycling. Aluminum molds are commonly made of 2-series, 5-series, 6-series, and 7-series aluminum sheets. 6061 aluminum plate is one of the commonly used mold aluminum plates, which belongs to aluminum-magnesium-silicon alloy and has good castability and corrosion resistance. And 6061 precision ground aluminum plate is widely used in the manufacture of high-end precision molds because of its excellent surface flatness and excellent performance.

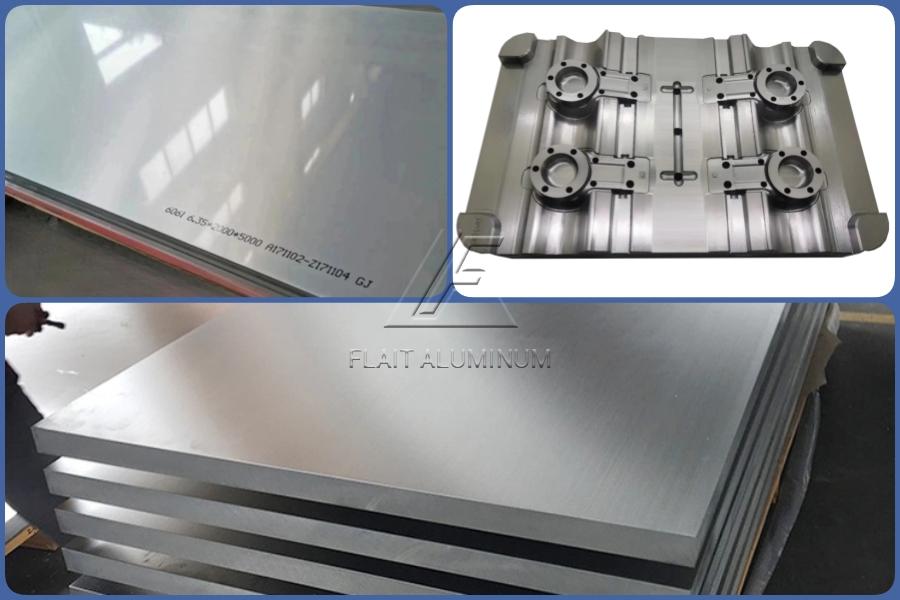

6061 precision ground aluminum plate for precision mold

Specifications of 6061 precision ground aluminum plate for precision mold

Alloy 6061 precision ground aluminum plate
Temper T6,T651
Thickness(mm) 0.3600
Width(mm) 500-2600
Length(mm) 500-16000
Thickness Tolerance ±0.002 in
Flatness(mm/m²) 0.1
Finish Type Precision Ground
Standard GB/T 3880, EN14286, EN485, ASTM B209, or according to customer’s special requirements.


Alloy Temper Mechanical Properties
Tensile Strength, UltimateMpa Tensile Strength, YieldMpa Elongation at Break Brinell hardness HBW Modulus of Elasticity(GPa) Shear StrengthMpa
6061 T6,T651 290  255 12%  95-100 68.9 186


Advantages of 6061 precision ground aluminum plate for precision mold

  1. Excellent anti-corrosion and anti-oxidation performance, durable;
  2. Good processability, no deformation after high-speed processing;
  3. The surface of the aluminum plate is polished, with a glossy aesthetic feeling;
  4. Uniform material, unique grain refinement process, no horizontal stripes, bubbles, and impurities;
  5. Wear-resistant, high temperature resistant, long service life.

Application of 6061 precision ground aluminum plate for precision mold

6061 precision ground aluminum sheet has consistent dimensions and a smooth surface finish. This special precision board can be used for almost the most common projects. Including but not limited to the manufacture of aircraft components, mold and fixture making, semiconductor manufacturing, machining of precision machinery and equipment, and general engineering applications.

Tags6061 precision ground aluminum plate
