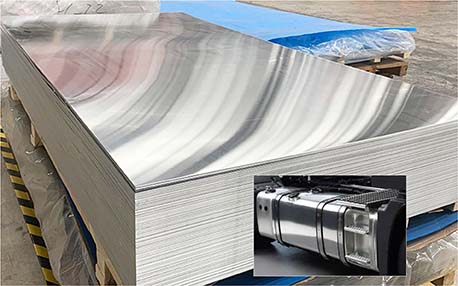

5754 aluminum plate for automotive fuel tanks

2023-12-25 15:46:32

5754 aluminum is an AL-MG series alloy, which is a widely used rust-proof aluminum. The European equivalent brand is: ENAW-AlMg3. The magnesium alloy content of the 5754 aluminum plate is between 2.6-3.6%, which is slightly higher than the 5052 aluminum plate of the same series. 5754 aluminum plate has excellent processability, corrosion resistance and high fatigue strength. Suitable for applications in welded structures, storage tanks, pressure vessels, ship structures and offshore installations. At the same time, it also has an irreplaceable position in the automobile manufacturing industry.

5754 aluminum sheet can be used for car doors, stamping parts and fuel tanks. Fuel tanks made of 5754 aluminum plates are light in weight, high in strength, high in cleanliness, and resistant to gasoline corrosion, and have become the first choice for large buses and heavy trucks.

5754 aluminum plate for automotive fuel tanks

Flait Aluminum is a manufacturer specializing in the production of aluminum plates, aluminum coils, aluminum strips, and aluminum foils. It has advanced cold rolling equipment and slitting equipment, and is able to produce and supply high-quality 5754 aluminum sheets in different states and sizes. We can provide aluminum plate rolls with a thickness of 0.4mm-600mm and a maximum width of 2650mm. The aluminum plate has a flat shape, neatly trimmed edges and excellent surface quality. No matter you have any needs, you can contact us. We have professional customer service to provide you with pre-sales and after-sales services.Click to Order

Specification of 5754 aluminum plate for automotive fuel tanks

Alloy 5754 aluminum plate sheet
Temper O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38,H111,H112,H114,H116,H321,etc.
Thickness(mm) 0.40-600;customizable
Width(mm) 100-2650;customizable
Length(mm) 500-16000;customizable
Surface treatment Rolled, Checkered aluminum plate,Anodized
Certificate CCS, DNV, ABS, BV
Application Automotive stamping parts, pressure vessels, ship structures, transport tanks, car doors, battery covers, molds, seals, welding structures, etc.


Chemical composition of 5754 aluminum plate for automotive fuel tanks

Alloy Si Fe Cu Mn Mg Cr Zn Ti Al
5754 0.4 0.4 0.1 0.5 2.60-3.60 0.3 0.2 0.15 Remainder


Mechanical properties of 5754 aluminum plate for automotive fuel tanks

Alloy Temper Tensile strength Rm(Mpa) Yield strength Rp0.2(MPa) Elongation A(%) Hardness HBWα
5754 O/H111 190-240 80 12 38
H32 220-270 130 11


Price of 5754 aluminum plate for automotive fuel tanks

The price of 5754 aluminum plate = SMM aluminum ingot price + processing fee.

Note: 5754 aluminum sheet has different tempers and specifications, the quotations of each aluminum manufacturer is also different. For detailed quotation, free online consultation is available, we are very happy to provide you with support and help!

Packaging of 5754 aluminum plate for automotive fuel tanks

  1. Interleave paper or cover protective film on the aluminum plate to ensure that the surface of the aluminum plate is perfect without scratches;
  2. Wrap it with plastic or kraft paper to prevent moisture and rain, and ensure that the aluminum plate is clean and free of dirt during transportation (each package has a moisture-proof desiccant);
  3. Use wooden pallets with fumigation marks and reinforce them with steel belts to avoid collisions during transportation and ensure that the shape of the aluminum plate remains unchanged;
  4. Pack according to customers’ requirements.
