5083 Aluminum sheet for ship keel

2023-12-25 17:49:21

5083 Aluminum sheet for ship keel has a wide range of applications.Due to its high strength, corrosion resistance and excellent processing properties, 5083 aluminum plates are widely used in key parts such as keels and decks of ships.

In the ship keel, 5083 aluminum plate can be used as the main structural material, providing sufficient strength and stiffness to ensure the stability and safety of the ship during operation. At the same time, its corrosion resistance can resist seawater erosion and extend the service life of the keel.

We are a manufacturer specializing in the production of 5083 marine aluminum plates. 5083 aluminum plate has excellent processing performance and can be easily cut, welded, bent and other operations, and can meet various needs in the ship manufacturing process.

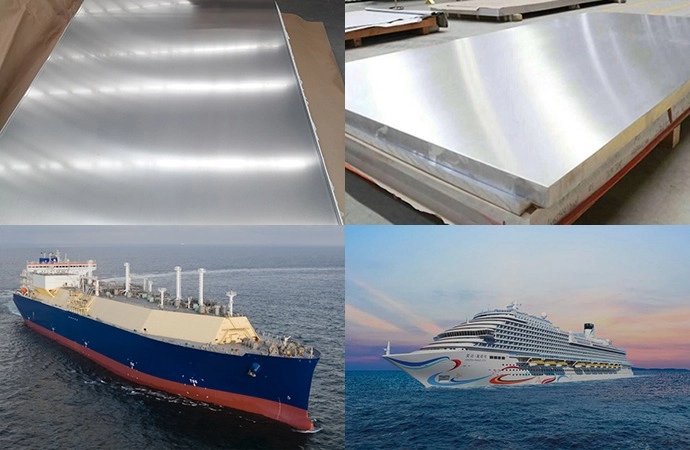

5052 5083 Aluminum plate for ship gangway

Specification of 5083 Aluminum Sheet for Ship Keel

Alloy 5083
Temper O,H111,H112,H116, H24,H32,H321
Thickness (mm) 1.50-120
Width (mm) ≤3100
Length (mm) 1000-16000
Standard GB/T 3880, EN14286, EN485, ASTM B209, or according to customer’s special requirements
Certificate DNV, GL, ABS, CCS, BV, LR

Chemical Composition

Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Zr AL
5083 0.4 0.4 0.1 0.40-1.00 4.00-4.90 0.05-0.25 0.25 0.15 Remainder

Mechanical Properties

Alloy Temper Tensile strength Rm(Mpa) Yield strength Rp0.2(MPa) Elongation A(%)
5083 O/H111/H112 ≥275 ≥125 ≥16
H116 ≥305 ≥215 ≥10
H321 305-385 215-295 ≥12


Features of 5083 Aluminum Sheet for Ship Keel

  • Light weight: The use of 5083 aluminum plates can reduce the weight of the ship, increase the speed, and at the same time reduce fuel consumption and save fuel consumption.
  • Corrosion resistance: 5083 aluminum plate is a typical rust-proof aluminum plate. Even under harsh conditions such as sea water, it will not rust, which can reduce maintenance costs such as oiling and extend its service life.
  • Good processability: 5083 aluminum plate is easy to process in various forms such as cutting, stamping, cold bending, forming and cutting, and is suitable for streamlined hulls.
  • Good welding performance: can be welded easily.
  • From a ship designer’s perspective, ships made of aluminum alloys can achieve higher speeds and have a longer service life.


Original Source: https://www.flait-aluminum.com/Marine-grade-aluminum-sheet.html

Tag: 5083 aluminum sheet
