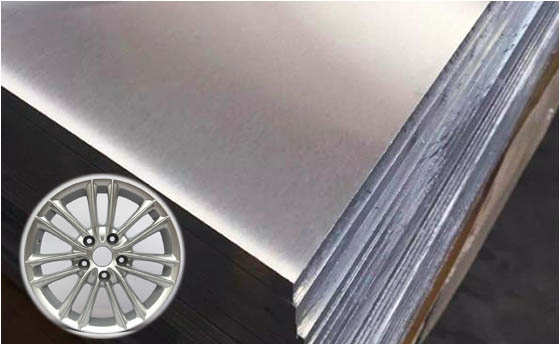

5454 aluminum sheet plate for car wheels

2023-12-25 15:32:34
5454 aluminum sheet plate for car wheels

5454 aluminum is a type of 5000 series aluminum alloy. The main alloying element added is magnesium. Internationally, it is also equivalent to UNS A95454, ISO AlMg3Mn, Aluminum 5454, AA5454, Al5454. 5454 aluminum plate has excellent corrosion resistance of 5 series aluminum alloys, excellent weldability and formability. It is a medium-strength aluminum-magnesium alloy. Taller aluminum plate. 5454 aluminum sheet has excellent performance and is very suitable for pressure vessels and ships. Among them, 5454 H32 marine aluminum plate is suitable for applications in marine environments. 5454 H32 aluminum sheet is also very suitable for use under high temperature conditions and is the best material for powder tank trucks. In addition, 5454 aluminum plates are also commonly used in the automotive manufacturing industry, such as automotive engine parts, car wheels, automotive luggage racks, etc.

Specification of 5454 aluminum sheet plate for car wheels

Alloy 5454 aluminum sheet plate
Temper O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38,H111,H112,H114,H116,H321,etc.
Thickness(mm) 0.4-600; Customizable
Width(mm) 100-2650; Customizable
Length(mm) 500-16000; Customizable
Package Export packaging (protective film, interleaved paper)
Standard ASTM B209, EN573, EN485,GB/T 3880
Certificate CCS, DNV, ABS, BV
Application Fuel tanks, oil tanker body, marine facility pipelines, automotive wheels, etc.


Advantages of 5454 aluminum sheet plate for car wheels

  • High strength. 5454 aluminum plate is the strongest among 5 series aluminum plates, about 20% stronger than 5052 aluminum plate. High strength ensures the driving safety of the car.
  • Good anti-rust performance and strong corrosion resistance. The properties of 5454 aluminum sheet are similar to 5154, but the corrosion resistance of 5454 aluminum sheet in harsh environments is better than that of 5154 aluminum sheet. This is especially important as car wheels are exposed to the elements for a long time.
  • Good weldability. 5454 aluminum plate combines medium to high strength with excellent weldability and can be welded by all commercial welding methods with a low tendency to weld skew.
  • Good formability. 5454 aluminum plate has strong plasticity, less hard and brittle compounds, is easy to form, and is not prone to cracks during the process.
  • Light weight. Compared with traditional steel materials, aluminum wheels are lighter, effectively reducing vehicle weight.

Mechanical Properties of 5454 aluminum plate for car wheels

Alloy Temper Thickness (mm) Tensile Strength (N/mm²) Yield Strength (min) (N/mm²) Elongation in 50mm (%)
0.5mm 0.8mm 1.3mm 2.6mm 30.mm
5454 O 0.2-6.0 215-285 80 12 14 16 18 14
H22 0.2-3.0 250-305 180 4 5 7 8
H24 0.2-3.0 270-325 200 3 4 5 6


Original Source:https://www.flait-aluminum.com/Automobile-Aluminum-Sheet-Plate.html

Tags:5454 aluminum plate,5454 aluminum sheet
