3105 Pre-coated aluminum sheet coil

2024-03-05 11:10:41

3105 Pre-coated aluminum sheet coil is a deep-processed aluminum sheet coil product based on 3105 aluminum sheet coil. It is processed by painting with a colored coating. It is also called 3105 Pre-painted aluminum sheet roll. The coating usually has PE (Polyester) ) and PVDF (Polyvinylidene Fluoride).

3105 aluminum coil has good anti-rust properties, good corrosion resistance, high plasticity in the annealed state, good plasticity during semi-cold work hardening, low plasticity during cold work hardening, good weldability, and poor machinability. 3105 Pre-coated aluminum sheet coil is often used as decorative aluminum sheet and building material aluminum sheet, such as roofing aluminum sheet, corrugated aluminum sheet, color-coated aluminum sheet, etc.

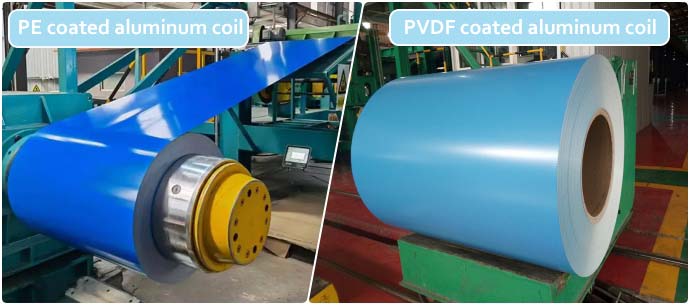

Pre-coated aluminum sheet coil

Application of 3105 Pre-coated aluminum sheet coil

Thanks to the excellent weather resistance, high color fastness and good UV resistance of PE/PVDF coatings, Pre-coated aluminum sheet coil is favored in the field of architectural decoration. Among them, 3105 PE Pre-coated aluminum sheet coil is mainly used for interior decoration, such as ceilings, walls, partitions and decorative panels in residential, commercial and public buildings. 3105 PVDF Pre-coated aluminum sheet coil is mainly used for outdoor decoration, such as building exterior walls, curtain walls, roof systems and outdoor signs.

Specification of 3105 Pre-coated aluminum sheet coil

Product 3105 Pre-coated aluminum sheet coil
Alloy 3105,3003,3004
Temper O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H112,etc.
Thickness(mm) 0.2-1.0mm for coil;1.0-5.0mm for sheet
Width(mm) Maximum reach 2200mm
Coating Paint PE, PVDF
Coating Thickness PE:18μm; PVDF:15-30μm;one side or both sides
Color RAL or as per customers’ samples
Standard YS/T431-2000


Services and Commitments of Flait Aluminum

Flait Aluminum is committed to providing customers with quality products and services. We promise that all the products we provide to customers have undergone strict quality inspection. All Pre-coated aluminum sheet coils shipped from the factory have a smooth appearance, clean surface, no corrosion marks, oil stains, and no color difference in the finished product. All products are provided with free laminating services. In addition to regular sizes and specifications, we can customize production according to customer needs, including size, thickness and color. At the same time we provide free A4 size samples. If you have any questions, please feel free to contact our team.Click to Order


Tags:3105 aluminum sheet,3105 aluminum coil
