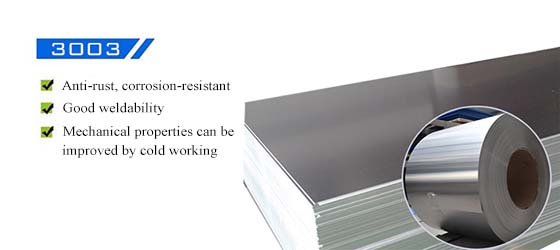

3003 rust-proof and corrosion-resistant aluminum plate aluminum coil



3003 aluminum plate/3003 aluminum coil belongs to the AL-Mn series alloy, which is the most widely used anti-rust aluminum.

The strength of this alloy is not high (slightly higher than industrial pure aluminum) and cannot be strengthened by heat treatment, so cold working methods are used to improve its mechanical properties: high plasticity in the annealed state, good plasticity during semi-cold work hardening, low plasticity during cold work hardening, good corrosion resistance, good weldability, and poor machinability.

Uses of 3003 rust-proof and corrosion-resistant aluminum plates sheets and coils

3003 aluminum plate and aluminum coil: commonly used in ships, vehicle materials, automobile and aircraft plate welding parts, pressure vessels that require strict fire protection, refrigeration devices, television towers, drilling equipment, transportation equipment, etc.

Extra-wide 3003 aluminum plate and aluminum coil: used to manufacture bus skins, silos, antenna pots, wide curtain wall panels, wide roof panels, etc.

Hot-rolled 3003 aluminum sheets and coils: power battery casings, car heat shields, fuel tanks, water tanks, car skid plates, battery covers, car interiors, signs, cans, medical equipment, etc.

Performance of 3003 anti-rust and corrosion-resistant aluminum plate aluminum coil

• Chemical composition of 3003 aluminum plate and coil

• Mechanical properties of 3003 aluminum plate and coil

Tensile strength σb (MPa) : 142-178

Conditional yield strength σ0.2 (MPa) ≥ 115

• Processing temperature of 3003 aluminum plate and coil

The homogenizing annealing temperature is 590~620℃, the hot rolling temperature is 480~520℃, the extrusion temperature is 320~480℃, the typical annealing temperature is 413℃, air cooling.

• Heat treatment process of 3003 anti-rust and corrosion-resistant aluminum

1) Complete annealing: heating to 390~430℃; depending on the effective thickness of the material, the holding time is 30~120min; cooling in the furnace to 300℃ at a speed of 30~50℃/h, and then air cooling.

2) Rapid annealing: Heating at 350~370℃; depending on the effective thickness of the material, the holding time is 30~120min; air or water cooling.

3) Quenching and aging: quenching at 500~510℃, air cooling; artificial aging at 95~105℃, 3h, air cooling; natural aging at room temperature for 120h.

• Chemical properties of 3003 anti-rust and corrosion-resistant aluminum plates coils

Corrosion resistance: The corrosion resistance of 3003 aluminum alloy is very good, close to the corrosion resistance of industrial pure aluminum, and has good corrosion resistance to the atmosphere, fresh water, sea water, food, organic acids, gasoline, neutral inorganic salt water solutions, etc., the corrosion resistance in dilute acid is also very good.

In the cold deformation state, 3003 aluminum alloy has a tendency of spalling corrosion. The greater the deformation, the more serious the spalling. Since the color is uneven after anodizing, anodizing is generally not performed.

Standards of 3003 rust-proof and corrosion-resistant aluminum sheets aluminum coils

Chinese standard:3003 GB/T 3190-1996

ISO: AlMn1Cu ISO 209.1-1989

Japanese standard: A3003 JIS H4000-1999 JIS H4100-1999

Non-standard: 31000 IS 736-2001

Russian standard: AMu/1400 FOCT4785-1974

EN: EN AW-3003/AlMn1Cu EN 573-3-1994

German standard: AlMnCu/3.0517 DIM1725-1-1986

French standard: 3003 (A-M1) NFA50-411 NFA50-451

British Standard: 3103 (N3) BS 1470-1988

American Standard: 3003/A93003 AA/UNS
