What are the uses of 1060 aluminum strip?

2024-01-10 11:47:14

1060 aluminum strip has high electrical conductivity and thermal conductivity, and has a wide range of applications. It is often used in electronic components, cables, transformers and other fields. In the field of power electronics, 1060 aluminum strip is mainly used to manufacture high and low voltage cables, transformers, reactors and other power equipment. In the field of electronic components, 1060 aluminum strip can be used to manufacture capacitors, inductors, insulating materials, etc. 1060 aluminum strip can also be used in aerospace, automobile manufacturing and other fields. Click to Order

Different fields have slightly different requirements for 1060 aluminum strips, so it is necessary to formulate corresponding standards. Standards can stipulate the chemical composition, mechanical properties, electrical properties, dimensional accuracy and other requirements of the product to ensure that the product meets the requirements of specific fields.

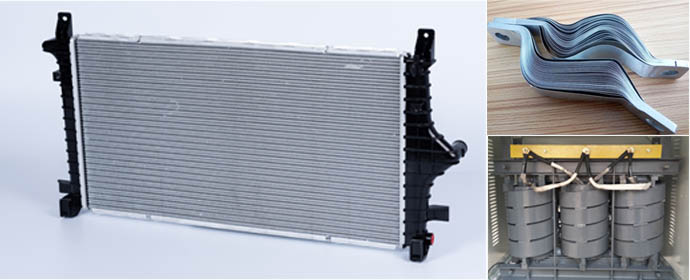

What are the uses of 1060 aluminum strip?

  • Transformer aluminum strip (transformer aluminum foil);
  • High-frequency welding of hollow aluminum bars;
  • Aluminum strips for fin radiators;
  • Aluminum strips for cables;
  • Aluminum bars for stamping,
  • Stamped aluminum strips and aluminum edge strips.
uses of 1060 aluminum strip

Specification of 1060 transformer aluminum strip foil

Alloy 1060,1060A
Temper O/HO
Thickness (mm) 0.08 – 3.00
Width (mm) 10 – 1500
Conductivity (% IACS) 1060-O  61.5% IACS
Elongation (%) 20 (Thickness: 0.080.20)
25 (Thickness: 0.20-3.00)
U. T. S 60-95N/mm2
Density in 20 2.703kg/m3
Resistivity (Ω·mm² /m) 0.02825
Burr’s height 0.01–0.03mm vary with thickness of the strip
Collapsed side’s height 0.05–0.1mm
ID Ø 150mm,Ø300mm, Ø400mm, Ø500mm
Edge Slit/Round
Surface Smooth, free from scratches and impurities
Application Transformer winding
Packing Eye to wall and eye to sky, wooden pallet and wooden case
Sample Available
Remark Transformer aluminum strip can be customized


Advantages of 1060 transformer aluminum strip foil

  • The edge is smooth, no burrs
  • Round edge
  • High conductivity
  • High purity
  • Totally annealed
  • Surface clean
  • Stable
  • Low resistivity
  • High quality, competitive price, good reputation
  • FREE SAMPLE, prompt delivery
