Grades of aluminum sheet plate for tank trucks semi-trailers

2024-05-24 16:57:27

As a lightweight metal material, aluminum is currently used on a large scale in oil tank trucks, natural gas tank trucks, semi-trailers and cement tank trucks. Aluminum alloys are mainly used in heads, tank body, anti-wave plates, fuel tanks and other parts; aluminum alloys have low density and high strength. The use of aluminum alloy tank trucks is lighter than carbon steel tank trucks, which reduces fuel consumption and tire wear during transportation, thereby reducing daily operating costs and maintenance costs; aluminum alloys have highly corrosion-resistant, can extend the service life of tank trucks; also, aluminum is recyclable and has a high recovery rate.

☆Strong corrosion resistance, good ductility, high strength

☆Good plasticity, easy to process, excellent formability

☆Beautiful and easy to maintain

☆Light weight, energy saving, long service life

☆Environmentally friendly, recyclable and reusable

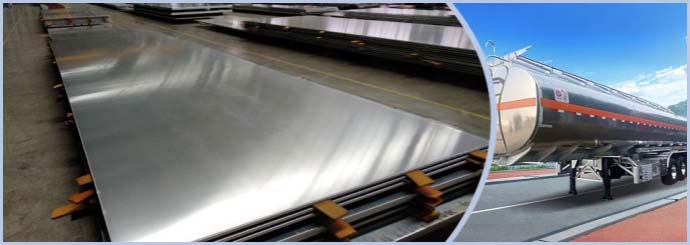

aluminum sheet plate for tank trucks

Grades of aluminum sheet plate for tank trucks semi-trailers

Tank truck semi-trailer body: 5083 aluminum plate, 5454-H111 aluminum plate

Can lids on both sides: 5083-O aluminum plate, 5182 aluminum plate

Partition: 5083-O aluminum plate, 5754 aluminum plate

Fuel tank: 5052-O aluminum plate

Alloy    Temper   Thickness(mm)  Width(mm)  Length(mm)
 5083  O/H111/H112/H116  4-8MM  1500-3450MM  500-16000MM
 5182  O/H111/H112  4-8MM  1500-3450MM  500-16000MM
 5454  O/H111/H112  4-8MM  1500-3450MM  500-16000MM
 5754  O/H111/H112  4-8MM  1500-3450MM  500-16000MM
5052 O/H32/H111/H112/H114 0.3-8MM 500-2650MM 500-16000MM
Surface Smooth surface, bright surface ,mirror reflective surface
Standards GB/T3880, EN14286, EN485, ASTM B209
Sample A4 size free


Why choose Flait Aluminum’s tank truck aluminum sheet plate?

  • A variety of specifications are available to meet the diverse needs of customers;
  • Fast delivery, low price, and reliable quality;
  • Provide various certificates;
  • Customized production according to customer requirements;
  • The logistics system is perfect, the delivery is fast, and the after-sales service is worry-free.


Original Source:

Tags:5083 aluminum plate, 5454 aluminum plate,5182 aluminum plate,5754 aluminum plate,5052 aluminum plate
