Embossed tread aluminum plates for stair treads

2024-01-30 16:48:15

The embossed tread aluminum plate is a patterned aluminum plate, also known as anti-skid aluminum plate. It is an aluminum plate that has been rolled to form various patterns on the surface. It has a good anti-skid effect and is mainly used for anti-skid floors and anti-slip steps; or used in packaging, construction, curtain walls, etc. We often see anti-slip aluminum plates on vehicles and stair treads. The application of embossed tread aluminum plates in stairs is very widely. Click to Order

1 series, 3 series, 5 series, and 6 series aluminum alloy can be made into embossed tread aluminum plates, include 1060 embossed tread aluminum plate (ordinary aluminum pattern plate), 3003 embossed tread aluminum plate (anti-rust aluminum checkered plate), 5052 embossed tread aluminum plate (corrosion resistance and anti-rust aluminum checkered plate) and 6061 embossed tread aluminum plate, etc., are available in various types to meet the needs of different customers. The embossed tread aluminum plate coil produced by Flait Aluminum has good corrosion resistance, excellent welding performance, high strength, good formability and easy processing. Stairs made of patterned aluminum plates are not only anti-slip, but also anti-corrosion and anti-rust.

Specification of embossed tread aluminum plate for stair treads

Alloy 1050,1060,1100,3003,5052,5754,5083
Tempers O,F,H14,H16,H32,H34,H111,H112,H116
Thickness 0.8mm – 8.00mm
Width 100mm – 2500mm
Length C
Coil ID 508mm
Surface Bright finish, Mill finish
Bars 1 bar (Diamond/Pointer), 2 bars, 3 bars, big/small 5 bars
Min. Quantity 5000~8000 KG
Common order size 4’X8′, 5’X10′, 1200x2400mm, 1500x3000mm, 2000x4000mm
Application Anti-slip flooring, truck compartment floor/steps, decorative panels, etc.
Standard ASTM-B209. EN573-1, GB/T3880


Common Alloy Tempers Thickness (mm) Standard width (mm) Plate length (mm)
1050/1060/1100 O,F,H12,H14,H16,H18,H22,H24,H26 0.8~5.0mm 1000~1500 1000~4000
3003 O,H12,H14,H16,H18,H22,H24,H26 1.0~8.0mm 1000~2000 1000~4000
5052 O,F,H32,H34,H112 1.6~8.0mm 1000~2000 1000~4000
5754 O,F,H111,H112 1.6~8.0mm 1000~2000 1000~4000
5083 O,F,H111,H112 1.6~8.0mm 1000~1500 1000~4000


Application of embossed tread aluminum plates for stair treads

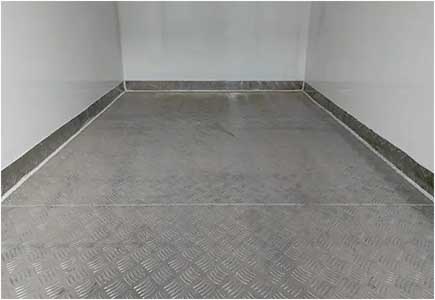

  • Anti-slip flooring in truck compartment
    Anti-slip flooring in truck compartment

    Anti-slip patterned aluminum plates are used for walkway floors of truck-type vehicles, steps of buses or tank trucks; machined parts, deep-drawn or spun parts, welded parts and heat exchangers of automobiles; fire trucks and truck tool boxes.

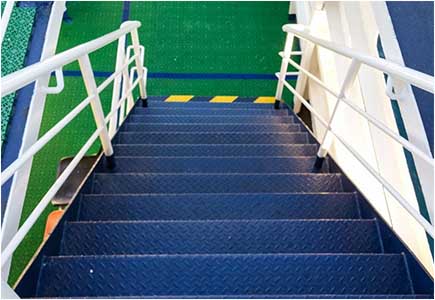

  • Shipbuilding skid plates
    Shipbuilding skid plates

    5000 series anti-skid patterned aluminum plates have good resistance to seawater corrosion. 5052, 5754, and 5083 embossed tread aluminum plates are commonly used in the shipbuilding industry: ship decks, passages, corridor floors, stairs/steps, warehouse floors, bridge floors, cabin decks, and ramps to floating docks wait.

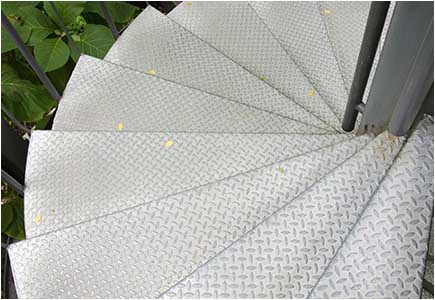

  • Anti-slip flooring for construction and factory workshops
    Anti-slip flooring for construction and factory workshops

    The grid pattern enables patterned aluminum plates to be used in architectural designs including building floors, stairs, shelving, wall tiles and splashbacks, countertops and worktops, wall cladding, lift screens, kitchen and bathroom accessories, shop decoration, bar decoration, etc.


Original Source:https://www.flait-aluminum.com/Aluminum-Tread-Checkered-Plate-Sheet.html

Tags:aluminum tread checkered plate sheet,1060 aluminum tread checkered plate,3003 aluminum tread checkered plate,5052 aluminum tread checkered plate,6061 aluminum tread checkered plate
