5083 aluminum sheet plate for LNG tank supplier

2023-11-20 09:12:57

Liquefied natural gas (LNG) is an important clean energy source. To store LNG, tanks must be able to withstand extreme temperatures and pressures. The boiling point of liquefied natural gas at low temperature and normal pressure is -160°C. LNG chooses a low-temperature and normal-pressure storage method to lower the temperature of the natural gas below the boiling point, so that the operating pressure of the liquid storage tank is slightly higher than normal pressure.

5083 Aluminum sheet plate belongs to the Al-Mg series alloy. The main element is magnesium, and the Mg content can reach between 4.0% and 4.9%. 5083 aluminum sheet plate is a kind of rust-proof aluminum with high strength, good plasticity, strong corrosion resistance, good processability, and light weight. It has become a widely used material for manufacturing low-temperature storage tanks such as LNG storage tanks and LNG ships. 5083 aluminum plates are mainly used in tank top, brackets and other parts of LNG storage tanks. Using aluminum alloy suspended ceilings instead of traditional stainless steel suspended ceilings can effectively reduce construction costs and facilitate construction.

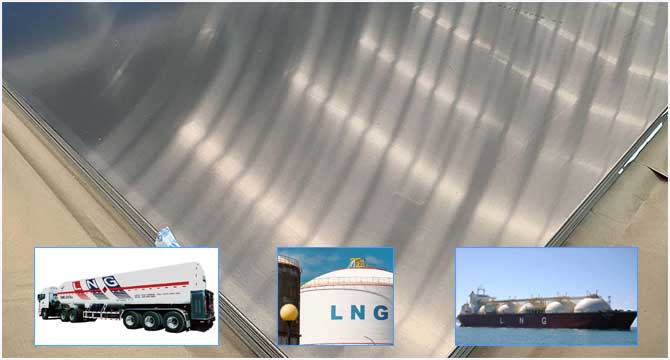

5083 aluminum sheet plate for LNG tank

5083-O aluminum sheet plate has high strength at low temperatures, such as LNG temperatures. Cryogenic storage tanks are materials for large spherical tanks used for the transportation and delivery of liquefied natural gas. Cryogenic storage tanks and liquefied natural gas are transported by ships at a temperature of -162 degrees Celsius and are considered a clean energy source. 5083 aluminum plates are widely used in LNG storage tanks. 5083-O aluminum plate resists becoming brittle at low temperatures, is lightweight and corrosion-resistant, and ensure safety during ocean transportation.

Common specifications of 5083 aluminum sheet plate for LNG storage tank roofs and ceilings

  • Thickness: 5mm, 6mm, 8mm, 10mm, 12mm, etc.
  • Width: 2000mm, 2200mm, 2500mm, etc.
  • Length: 6000mm, 8000mm, 10000mm, etc.

Advantages of 5083 aluminum plates for LNG storage tanks

  • Good plasticity, easy to process, and excellent forming performance;
  • Strong weldability, including gas welding, arc welding, contact spot welding and line welding;
  • Low density, high strength, anti-rust function, excellent anti-corrosion performance, and durable;
  • During the production process of 5083 aluminum plate, a trace amount of Be is added to reduce the crack tendency of the ingot and improve the surface quality of the rolled plate.
  • The surface of the 5083 aluminum plate has no oil spots, no waves, no scratches, no roller marks, neat trimming, and no burrs.
Product 5083 aluminum sheet plate for LNG tank
Temper O,H12,H14,H16,H18,H19,H22,H24,H26,H28,,H32,H34,H36,H38,H111,H12,H114,H116,H321
Thickness(mm) 0.15-500
Width (mm) 20–2650
Length (mm) 500–16000
Certificate CCS, DNV, ABS, BV
Use Ship plates, LNG storage tanks, gas cylinders, GIS shells, car body skins, flange materials, etc.


Chemical composition of 5083 aluminum sheet plate for LNG tank
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Zr Al
5083 0.4 0.4 0.1 0.40-1.00 4.00-4.90 0.05-0.25 0.25 0.15 Remainder


Original Source:https://www.flait-aluminum.com/Aluminum-Sheet-for-Tank-Truck-Fuel-Tanker.html

Tags:5083 Aluminum sheet plate,5083-O aluminum sheet plate
