5083 O aluminum plate for electric vehicle battery case

2023-11-27 11:00:30

Power batteries are the core components of new energy vehicles. New energy vehicles use battery modules as the power source to provide driving power for the entire vehicle. The battery casing is to protect the safety of the battery module, and its material selection mainly considers many aspects such as the material’s sturdiness and anti-corrosion performance. Aluminum alloy materials are favored in battery casings because of their unique advantages. 5083 aluminum plate is one of them.

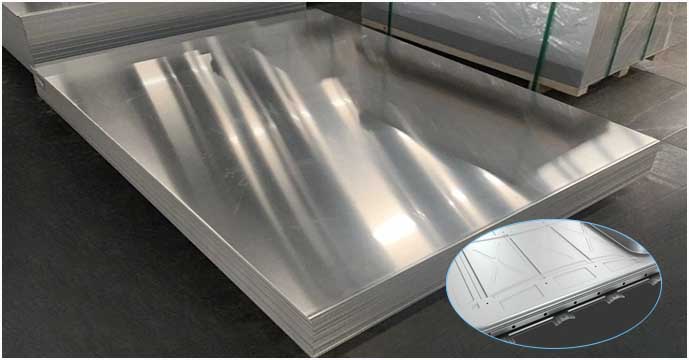

5083 O aluminum plate for electric vehicle battery case

The new energy vehicle battery pack consists of power battery casing, battery cover, battery box cover, battery side plate, etc. Each part can be made of different grades of aluminum alloy. Among them, the battery shell side panels are often made of 5083-O aluminum plates. 5083-O aluminum plate belongs to the 5 series aluminum-magnesium alloy. It has low density, light weight, medium strength and good corrosion resistance. Compared with other states of 5083 aluminum, 5083-O aluminum plate has the highest ductility and is very easy to process and form.

Flait 5083 aluminum plate for electric vehicle battery case has excellent performance and is produced strictly according to standards. The stock thickness of aluminum plate is 1.0mm, 1.2mm, 1.5mm and 2.0mm. The width and length can be customized according to customer needs. Of course, if you have other thickness requirements, you can also contact our team directly. We have professional pre-sales service to answer your questions.Click to Order

Advantages of 5083 O aluminum plate for electric vehicle battery case

  • Good corrosion resistance.
  • Good ductility and formability, easy to process and weld.
  • The edges of the product are neatly trimmed and there are no defects or damage such as burrs and cracks.
  • Excellent wear resistance and fatigue strength.
  • High recyclability and reuse value.

Specifications of 5083 O aluminum plate for electric vehicle battery case

Alloy 5083
Temper O
Thickness(mm) 1.0-2.0
Width(mm) 100-2650
Length(mm) C
Standard GB/EN/ASTM
Uses Electric vehicle battery case,electric vehicle battery partition,electric vehicle battery side panel


Mechanical properties of 5083 O aluminum plate for electric vehicle battery case

Alloy Temper Tensile strength σb (MPa) Yield strength σ0.2 (MPa) Elongation δ10 (%) Elongation δ5 (%)
5083 O 270 110 20 12


Original Source:https://www.flait-aluminum.com/Automobile-Aluminum-Sheet-Plate.html

Tags:5083 aluminum plate
