5083 Marine grade aluminum sheet

2023-11-06 13:54:03

5083 marine grade aluminum sheet is an aluminum-magnesium alloy. The Mg content can reach between 4.0% and 4.9%, which makes the 5083 aluminum plate excellent in corrosion resistance and easy to weld.5083 marine grade aluminum plate sheet has high strength and low ductility fracture performance, and has high corrosion resistance and good anti-rust function. It can resist the corrosion of the hull from seawater, marine climate and harsh environments, and reduce maintenance costs such as oil filling.

FLAIT ALUMINUM is a Chinese manufacturer supplier specializing in the production of marine grade aluminum sheets. We have good pre-sales and after-sales services to meet customer needs.FLAIT ALUMINUM can provide 5052 marine grade aluminum sheet, 5086marine grade aluminum sheet, etc.

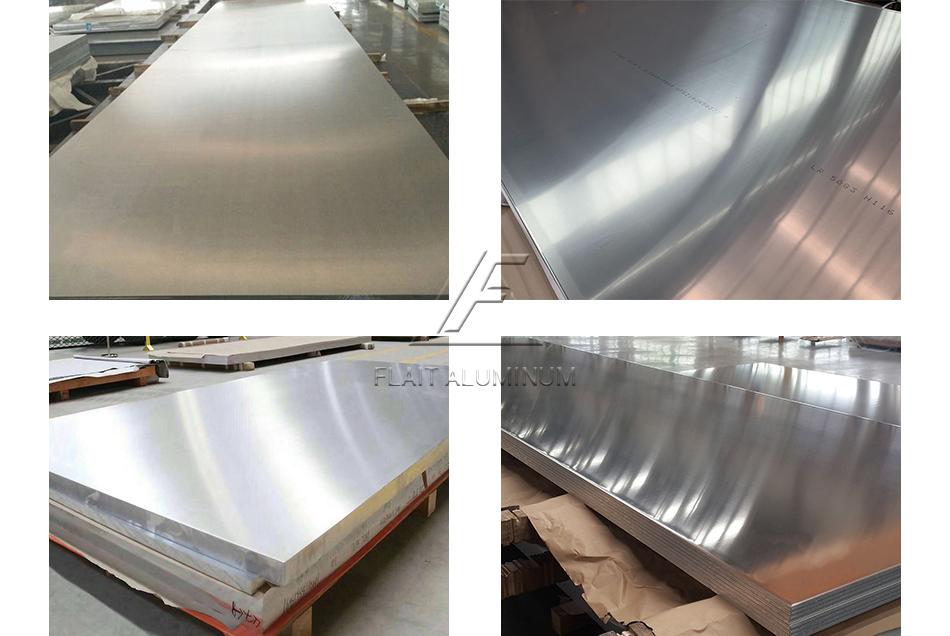

5083 Marine grade aluminum sheet

Specification of 5083 Marine Grade Aluminum Sheet

Alloy 5083
Temper O,H111,H112,H116, H24,H32,H321
Thickness(mm) 1.50-120
Width(mm) ≤3100
Length(mm) 1000-16000
Surface treatment Rolling, mirror, patterned aluminum plate
Package Export packaging (protective film, interleaved paper)
Certificate CCS, DNV, ABS, BV

Chemical Composition

Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Zr Al
5083 0.40 0.40 0.10 0.40-1.00 4.00-4.90 0.05-0.25 0.25 0.15 Remainder

Mechanical Properties

Alloy Temper Tensile strength Rm(Mpa) Yield strength Rp0.2(MPa) Elongation A(%)
5083 O/H111/H112 ≥275 ≥125 ≥16
H116 ≥305 ≥215 ≥10
H321 305-385 215-295 ≥12


Advantages of 5083 Marine Grade Aluminum Sheet

  1. Strong anti-corrosion, durable, economical and environmentally friendly;
  2. Good arc welding performance and beautiful anodized surface;
  3. The product has passed CCS, DNV, ABS, BV certification;
  4. The surface of the aluminum plate has no oil spots, no scratches, no waves, no roll marks, no trimming, and no burrs.


Original Source: https://www.flait-aluminum.com/Marine-grade-aluminum-sheet.html

Tags: 5083 aluminum sheet
