5083 H116 marine grade aluminum plate for shipbuilding

2024-03-19 09:49:39
5083 H116 marine grade aluminum plate for shipbuilding

5083 aluminum plate is the most commonly used marine grade aluminum plate. Commonly used states include O, H111, H112, H116 and H321.

5083 H116 marine grade aluminum plate is a commonly used marine aluminum plate in Europe. It has the characteristics of low density, light weight, high tensile strength and high elongation. After heat treatment, it has good cutting processability, corrosion resistance and welding performance.

5083 H116 aluminum plate is specially designed for the marine environment. Its toughness, strength, and corrosion resistance are extremely excellent, and it can protect the hull from being damaged by seawater and various microorganisms when it is exposed to seawater for a long time.At the same time, its weight is lower than other alloy series, enabling low fuel consumption, low pollution and high transportation efficiency, making it the preferred material for the shipbuilding industry.

Performance of 5083 H116 marine grade aluminum plate

5083 H116 aluminum plate is a high magnesium alloy that has good strength among non-heat treatable alloys and has good corrosion resistance, machinability, weldability and processability.

Alloy-Temper:5083 H116

Tensile strength Rm(Mpa):≥305

Yield strength Rp0.2(MPa):≥215

Elongation A(%):≥10

Hardness HBWα:89

Specification of 5083 H116 marine grade aluminum plate

Alloy-Temper:5083 H116

Thickness (mm):1.50-120

Width (mm):≤3100

Length (mm):1000-16000

Application of 5083 H116 aluminum plate

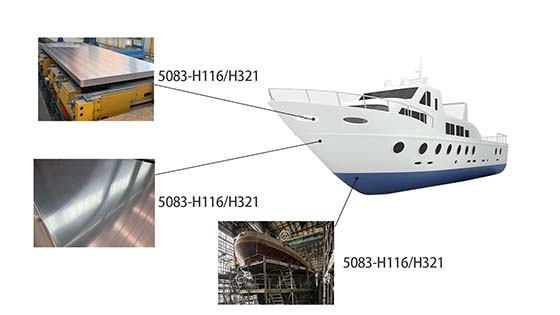

5083 H116 marine aluminum plate can be used for decks, engine bases, ship sides, bottom outer plates, keels, and hull structural materials. In addition to marine use, it can also be used in automobile manufacturing, gas storage tanks, cruise ships and other fields. If you have any other questions, please contact us. Click to Order
