5083 Aluminum sheet plate for tank truck head supplier

2023-09-25 11:54:44

Tank truck is a vehicle with a tank-shaped body. The tank body consists of front and back heads, front tank body, variable cross-section and rear tank body. The tank head is the end cap on the pressure vessel and is the main component of the pressure vessel, the function is to seal. The quality of the aluminum plate for tank truck head is directly related to the long-term safe operation of the tank truck. The tank truck heads need to resist the impact of oil on both sides of the tank during vehicle transportation, so the tank head aluminum sheet is 1mm thicker than the tank body aluminum sheet. The tank body generally uses 6mm thick aluminum plate, and the tank head aluminum plate thickness is generally 7mm. The tank head of the oil tanker can be processed and produced using 5083 aluminum sheet plate. Click to Order

As a lightweight and environmentally friendly material, aluminum alloy has good applications in various vehicle models. Aluminum alloys for tank truck bodies include 5 series and 6 series products, 5083 aluminum plate is the most used. Aluminum sheets are mostly used in large tank trucks and semi-trailer tank trucks. They are mainly used for tank body, heads, partitions/wave proof board and other parts. They have the characteristics of light weight, high strength, corrosion resistance, rust prevention, good appearance, easy maintenance, durable, is especially suitable for long-distance transportation.

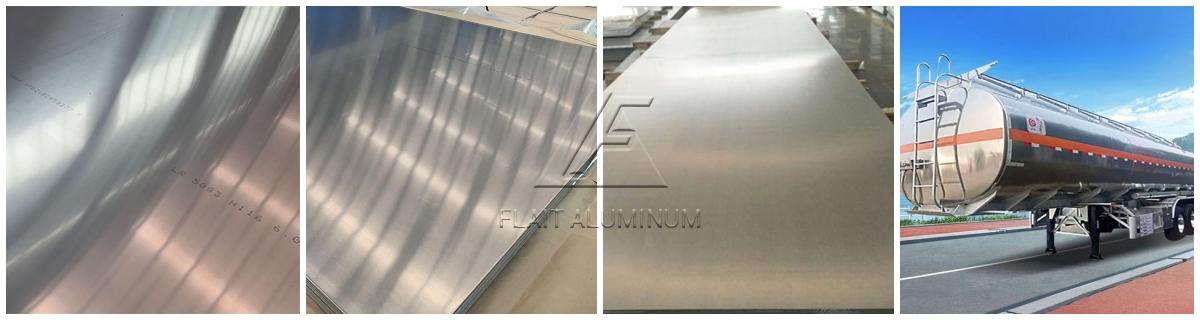

5083 aluminum sheet plate for tank truck head

5083 Aluminum sheet plate for tank truck head belongs to the AL-Mg series alloy, has high strength, especially fatigue resistance, high plasticity and corrosion resistance, and good weldability. 5083-O aluminum plate is in the annealed status and is often used for tank truck heads and wave protection boards; 5083-H111 aluminum plate has high strength, good plasticity, and can withstand certain impacts and vibrations, and is often used in tank truck bodies; 5083-H32 aluminum plate has the strength and hardness lower than 5083-H111 aluminum plate, 5083-H32 aluminum plate can also be used to make the body of tank trucks, and is usually suitable for occasions with small pressure and load; 5083-H321 aluminum plate has excellent resistance to stress corrosion cracking and is suitable for high-strength, it is used in high-pressure environments, like the liquid level gauge, air inlet and other parts of oil tank trucks.

Specification of 5083 aluminum sheet plate for tank truck head

Alloy Temper Thickness (mm) Width (mm) Length (mm)
5083 O, H111, H112, H114, H116, H32, H321, etc. 4.00 – 8.00 1500 – 3450 500 – 16000


Chemical composition of 5083 aluminum sheet plate for tank truck head

Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Zr Al
5083 0.40 0.40 0.10 0.40-1.00 4.00-4.90 0.05-0.25 0.25 0.15 Remainder


Mechanical properties of 5083 aluminum sheet plate for tank truck head

Alloy Temper Tensile strengthRm(Mpa) Yield strengthRp0.2(MPa) ElongationA(%) Minimum Bending Radius of 180 Degree Standard
5083 O/H111 290-370 145 17 1.5T EN14286, ASTM B209
H116 305-370 215 12 3T
H32 305-385 215 12 3T
H321 305-370 220 12 3T


Physical properties of 5083 aluminum sheet plate for tank truck head

Alloy Thermal expansion coefficient(20-100℃)   µm/m•kRm/Mpa Melting point range(℃)Rp0.2/Mpa Conductivity 20℃(68°F)(%IACS) Resistivity  20(68°F)Ωmm2/m Density(20℃)(g/cm³)
5083 24.2 574-638 29 0.0595 2.75


Tolerances of 5083 aluminum sheet plate for tank truck head

Thickness (mm) Width (mm)
≤1250 12501600 16002000 20002600
3.00-6.00 0.32 0.32 0.4 0.45
6.00-8.00 0.38 0.46 0.5 0.6
8.00-12.00 0.45 0.56 0.65 0.8


Quality of Flait 5083 aluminum sheet plate for tanker truck

  1. Composition and properties: strengthen the selection and quality control of raw materials, implement relevant standards and specifications, strictly inspect and test the compositions and properties of 5083 aluminum sheets.
  2. Specifications: using advanced processing technology and equipment, strengthen size control and adjustment during production process according to your actual needs, including thickness, width, length and other parameters.
  3. Surface quality: the surface of 5083 aluminum plate is smooth and flat, without obvious protrusions and depressions, and no cracks, oxidation, flaws and other obvious defects.
  4. Services: Flait Aluminum has a special quality inspection team, which takes pictures of customers before each shipment and provideinspection reports.
  5. Package and transportation: Standard export package, short production lead times, sufficient aluminum sheets in stock.


Original Sourcehttps://www.flait-aluminum.com/Aluminum-Sheet-for-Tank-Truck-Fuel-Tanker.html

Tags: 5083 aluminum sheet , 5083 aluminum plate
