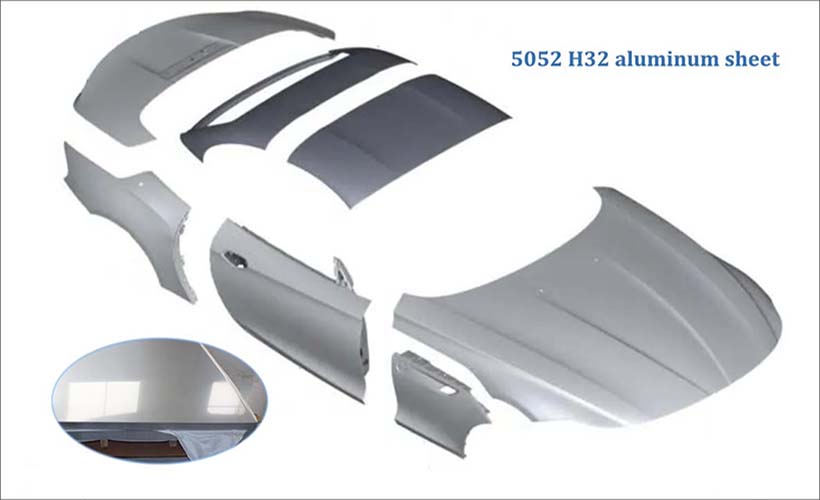

5052 H32 aluminum sheet for auto body panels

At present, lightweighting has become a major trend in the development of the automobile industry, which is of great significance for both energy consumption and automobile performance optimization. Aluminum alloy is the first choice material for automobile lightweighting due to its outstanding comprehensive cost performance. Aluminum alloy is widely used in automobile manufacturing, such as body, four-door and two-door cover, seat frame, automobile interior, automobile fuel tank, wheel hub, etc. Aluminum alloy can be used. The body panel is generally made of 5052 H32 aluminum sheet.

5052 H32 aluminum sheet is an AL-Mg series alloy and is well known as a widely used anti-rust aluminum. It is an excellent general-purpose alloy with good formability, corrosion resistance, weldability and moderate strength. It combines the advantages of 3 series anti-rust aluminum sheets and the excellent formability of 5 series alloys. Due to the addition of a small amount of chromium and manganese, the aluminum sheet’s ability to resist stress corrosion cracking is improved, making it very suitable for use as automobile body panels. 5052 h32 is a commonly used annealing process. The annealing temperature is generally between 420 ℃ and 475 ℃ for direct annealing, so that the aluminum sheet has the advantages of high temperature resistance, extreme cold resistance, corrosion resistance, and oxidation resistance.

Specifications of 5052 H32 aluminum sheet for auto body panels

Alloy 5052
Temper O,H26,H32,H34,H36
Thickness(mm) 0.3-3.5
Width(mm) 100-2650
Length(mm) 500-16000
Surface treatment smooth, mill finish, not polished,anodized
Standard GB/T 3880, EN14286, EN485, ASTM B209, or according to customer’s special requirements.
Application signs, automotive bodies, food processing equipment, storage tanks, ladders, decorative trim, etc.


Mechanical properties of 5052 H32 aluminum sheet for auto body panels

Alloy Temper Thickness mm Strength of extension Rm N/mm2 Extension strength R p0.2 N/mm2 Elongation after breaking A 50 min %
5052 O 0.30-3.50 170-215 65 ≥16
H26 0.60-3.00 190-240 80 ≥14
H32 0.60-3.00 210-260 130 ≥5
H34 0.60-3.00 230-280 150 6
H36 0.60-3.00 250-300 180 5


Advantages of Flait 5052 H32 aluminum sheet for auto body panels

  • Lightweight: The density of 5052 aluminum alloy is about one-third lower than steel, which has significant benefits for reducing vehicle weight and improving fuel economy and performance.
  • Corrosion resistance: 5052 aluminum sheet has excellent corrosion resistance and can be used in harsh environments.
  • Good processability: 5052 aluminum sheet is easy to process and shape, and can be cut, bent, stamped, deep drawn and other operations through a variety of methods.
  • Recyclability: 5052 aluminum alloy is a recyclable material with a high recycling rate and meets environmental protection requirements.

Quality of Flait 5052 H32 aluminum sheet for auto body panels

1. Composition and properties: strengthen the selection and quality control of raw materials, implement relevant standards and specifications, strictly inspect and test the compositions and properties of 5052 aluminum sheets.

2. Specifications: using advanced processing technology and equipment, strengthen size control and adjustment during production process according to your actual needs, including thickness, width, length and other parameters.

3. Surface quality: the surface of 5052 aluminum sheet is smooth and flat, without obvious protrusions and depressions, and no cracks, oxidation, flaws and other obvious defects.

4. Services: Flait Aluminum has a special quality inspection team, which takes pictures of customers before each shipment and provide inspection reports.

5. Package and transportation: standard export package, short production lead times, sufficient aluminum sheets in stock.
