3003 color coated aluminum coil

2023-07-18 16:00:42

3003 color coated aluminum coil is an aluminum-manganese alloy with good formability, corrosion resistance and weldability. The paint for aluminum 3003 color coil includes PE (polyester), PVDF (fluorocarbon). The coating method can be powder coating or spray coating. The colored coating not only enhances its visual appeal, but also provides protection against corrosion and wear.Click to Order

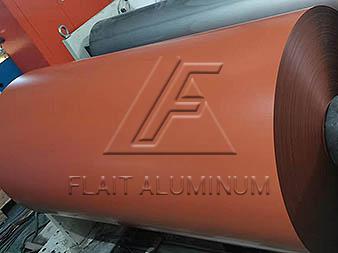

Color coated aluminum coil Color coated aluminum coil Color coated aluminum coil Color coated aluminum coil

Specifications of 3003 color coated aluminum coil

Alloy Temper Thickness (mm) Width (mm) Coating Thickness (μm) Application
3003 H24, H26 0.5-1.2 200-1300 25-28 ceiling
3003 H24 0.6-1.5 55-1600 25-28 roofing
3003 H24 0.3-0.6 300-500 15-18 Rain gutter
3003 O, H 0.3-2.0 20-1600 15-28 Other
Colors White, gray, red, brown, blue, green, black etc.
Protective film Transparent film, or a film with customized trademark
Inner diameter 505mm, 405mm, or customized
Packaging Export package


Features of 3003 Color Coated Aluminum Coil

  1. Corrosion Resistance: The 3003 alloy has excellent corrosion resistance, making the color coated aluminum coil suitable for various environments, including both indoor and outdoor applications.
  2. Weather Resistance: The coil is designed to withstand harsh weather conditions, such as UV rays, rain, and extreme temperatures, without fading, cracking, or peeling.
  3. Durability: The coating on the coil provides an additional layer of protection, enhancing its durability and making it resistant to scratches and abrasion.
  4. Lightweight: Aluminum is a lightweight material, which makes the color coated coil suitable for applications where weight is a concern, such as in transportation or construction industries.
  5. Aesthetics: The color coating on the aluminum coil offers a wide range of colors and finishes, allowing for various design possibilities and aesthetic enhancements.

Application of 3003 Color Coated Aluminum Coil

3003 coated aluminum coils are widely used in decorative curtain wall panels, indoor aluminum ceiling corner panels, roof colored aluminum tiles, aluminum gutters, shutters, rolling doors, lighting products, bus skins, silos, furniture, etc.


Tags:3003 aluminum coil
